What is the KW3AT-16 microwave oven door switch replacement part?

The KW3AT-16 is a microwave oven door switch replacement part designed to ensure proper operation when the microwave door is closed. It includes two Normally Open switches and one Normally Closed switch.

How does the Normally Open switch function?

The Normally Open switch connects Terminal COM to Terminal NC when not pressed, keeping the circuit open. When the button is pressed, Terminal COM connects to Terminal NO, closing the circuit and allowing the microwave to operate.

What is the difference between Normally Open and Normally Closed switches?

A Normally Open switch maintains an open circuit until activated, while a Normally Closed switch keeps the circuit closed until activated. This means Normally Open switches are flat and short, while Normally Closed switches have a basic form and are longer.

What are the specifications of the KW3AT-16 switch?

The KW3AT-16 switch has a rating of 16(4)A at 125/250VAC, 10A at 30VDC, and a maximum temperature resistance of 125 degrees Celsius.

Is the KW3AT-16 compatible with other models?

Yes, the KW3AT-16 is downward compatible with the KW3A-16 model and has similar electrical performance, making it suitable for use in various microwave ovens.

How can I tell if my microwave door switch needs to be replaced?

If your microwave does not turn on or heat properly when the door is closed, it may be a sign that the door switch is faulty and needs replacement.

What is included in the package?

The package includes two Normally Open switches and one Normally Closed switch, providing everything needed for typical microwave door switch replacements.

Can I install the KW3AT-16 switch myself?

Yes, the KW3AT-16 switch can be installed by those with basic electrical knowledge. However, if you're unsure, it's recommended to consult a professional for installation.

What are the typical signs of a faulty microwave door switch?

Common signs of a faulty door switch include the microwave not starting when the door is closed, not heating food, or stopping mid-cycle.

Is there any maintenance required for the KW3AT-16 switch?

Generally, no maintenance is required for the KW3AT-16 switch. However, ensure that the switch is clean and free from debris to maintain optimal performance.

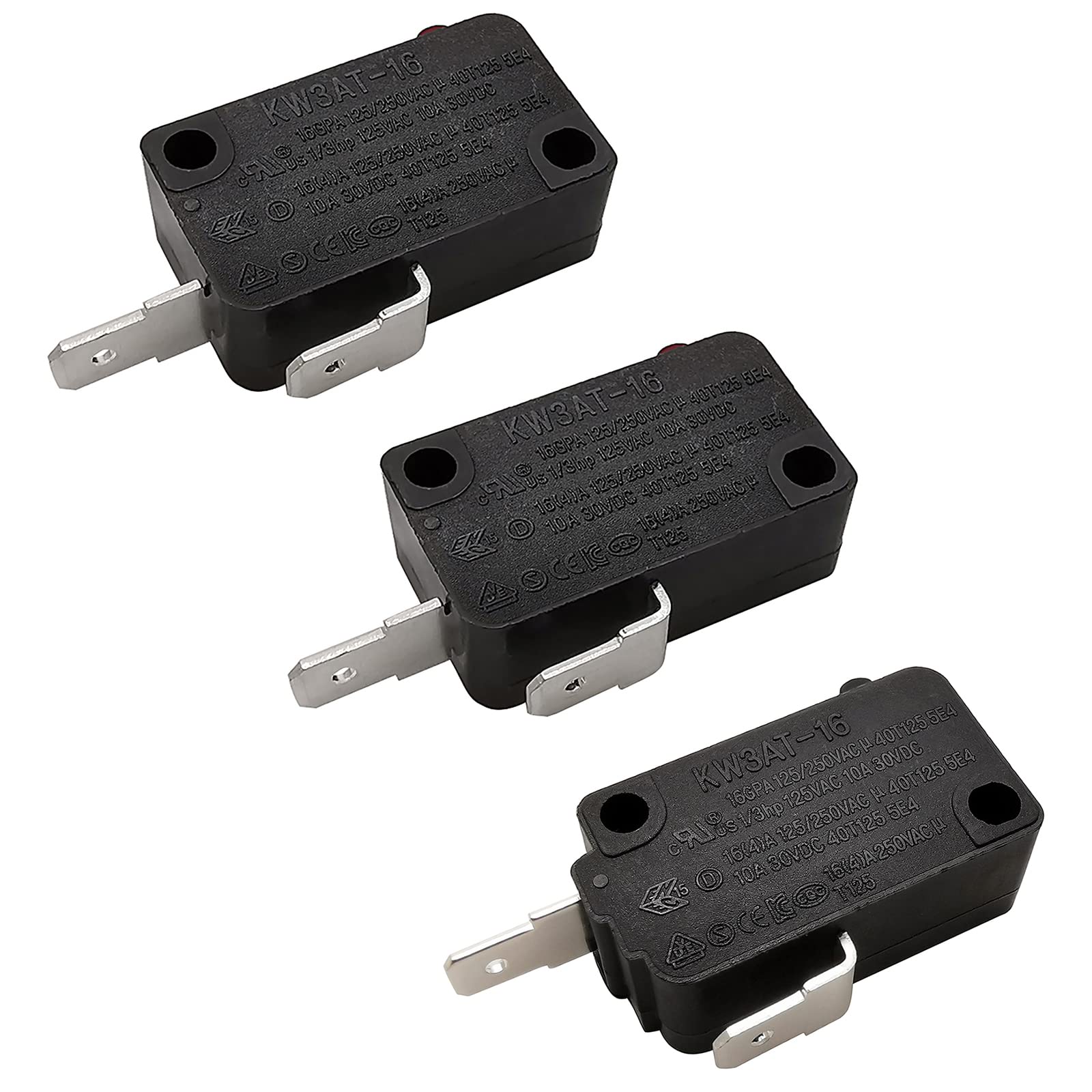

Microwave Oven Door Switch Replacement Part 16A 125VAC KW3AT-16 (Downward Compatible with KW3A-16) 2X Normally Open + 1x Normally Closed

Regular price $12.17

Hurrify, 5 item(s) left in stock!

Wishlist

Brand: Hiqltyla

Type: Appliances,Kitchen Appliances,Microwaves

Sku: WBKITB09DKG2MJ9

Available : Instock

Shipping information

Answer

Shipping & Delivery Policy

At Homenkitchenshop, we are dedicated to getting your home and kitchen essentials to you as quickly as possible. To ensure the highest quality and best pricing, we work directly with our manufacturing partners to ship products efficiently from our network of fulfillment centers, including our primary hub in Houston, Texas.

Because your convenience is our priority, our Customer Support Team is available 24/7 to assist you with any shipping inquiries.

1. Shipping Destinations & Cost

Cost: We offer Free Shipping on all orders across the Continental United States.
Restrictions: We do not ship to P.O. Boxes, APO/FPO addresses, or international destinations at this time.

2. Order Processing & Transit Times

Our fulfillment centers operate six days a week (Monday through Saturday) to process and dispatch your orders.

Order Cut-off Time: 2:00 PM (CST) – Monday to Saturday.
Handling Time: 1–3 Business Days (Monday – Saturday).
Transit Time: 3–5 Business Days (Monday – Friday).
Total Delivery Time: 4–8 Business Days.

3. Strategic Fulfillment & Carriers

By working directly with our manufacturing partners, we optimize our logistics to reduce transit distances. We utilize reliable carriers such as UPS, FedEx, and USPS.

4. Order Tracking

A shipping confirmation email with a tracking number will be sent as soon as your order is dispatched. Please allow up to 24 hours for the carrier’s tracking link to reflect the status of your package. You can also contact our 24/7 support team for real-time updates.

5. Missing or Damaged Items

If your package is marked as delivered but you cannot find it, or if it arrives damaged, please notify us within 48 hours. Our 24/7 support team is ready to help coordinate replacements or resolutions immediately.

6. Business Contact Details

Legal Entity: Ami Ventures Inc (dba Homenkitchenshop)
Physical Address: 14932 Kuykendahl Road, Houston, TX 77090
Customer Support: Available 24/7, 365 Days a Year
Phone: +1 832-730-5801
Email: support@homenkitchenshop.com

Secure payment

⚠️ California Proposition 65 Warning :
Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

For more information, visit www.P65Warnings.ca.gov.

Guarantee safe checkout

Microwave Oven Door Switch Replacement Part 16A 125VAC KW3AT-16 (Downward Compatible with KW3A-16) 2X Normally Open + 1x Normally Closed

$12.17

Description

Universal Microwave Door Switch Normally Open Switch: Model Number: Kw3At-16 Outline Characteristic: Flat Terminal Material: High Temperature Resistant Plastics Temperature Resistance: 125 Color: Black Current: 16A Voltage: 125V 250V Mechanical Life: 5E4 (50000 Times) Terminal Type: Quick-Connect Terminal #187(T=08) Shell Dimensions: 109 X 063X 041(278 X 159 X 103 Mm) Single Weight: 022Oz 63G Normally Closed Switch: Model Number: Kw3At-16 Outline Characteristic: Basic Form Material: High Temperature Resistant Plastics Temperature Resistance: 125 Color: Black Current: 16A Voltage: 125V 250V Mechanical Life: 5E4 (50000 Times) Terminal Type: Quick-Connect Terminal #187(T=08) Shell Dimensions: 118 X 063X 041(30 X 159 X 103 Mm) Single Weight: 022Oz 62G Package Includes: 2X Normally Open Switch 1X Normally Closed Switch
Ormally Open Switchodel: Kw3At-16 Specifications: 16(4)A 125250Vac U 10A 30Vdc 40T125 5E4 Outline Characteristic: Flat Terminal Character: Normally Open (Normal Time Terminal Com Connect To Terminal Nc The Circuit Is Open When Pressed The Button Terminal Com Connect To Terminal No The Circuit Is Closed) Ormally Closed Switchodel: Kw3At-16 Specifications: 16(4)A 125250Vac U 10A 30Vdc 40T125 5E4 Outline Characteristic: Basic Form Character: Normally Closed (Normal Time Terminal Com Connect To Terminal Nc The Circuit Is Closed When Pressed The Button Terminal Com Connect To Terminal No The Circuit Is Open) How To Distinguishormally Open Switch Is Flat Terminal Relatively Short Normally Closed Switch Is Basic Form Relatively Long Kw3At-16 Has A Maximum Temperature Resistance Is 125 And Kw3A-16 Has A Maximum Temperature Resistance Is 105 Other Electrical Performances Are The Same So Kw3At-16 Is An Upgraded Version Of Kw3A-16 Which Is More Competent In Harsh Working Environments Than Kw3A-16 Compatible With Most Of Microwave Ovenif The Microwave Will Not Turn Or Heat Properly There Could Be An Issue With The Door Switch A New Switch Can Return The Microwave Oven To Normal Operation Ackage Includes2X Normally Open Switch + 1X Normally Closed Switch

Frequently Asked Questions

Q: What is the KW3AT-16 microwave oven door switch replacement part? A: The KW3AT-16 is a microwave oven door switch replacement part designed to ensure proper operation when the microwave door is closed. It includes two Normally Open switches and one Normally Closed switch.
Q: How does the Normally Open switch function? A: The Normally Open switch connects Terminal COM to Terminal NC when not pressed, keeping the circuit open. When the button is pressed, Terminal COM connects to Terminal NO, closing the circuit and allowing the microwave to operate.
Q: What is the difference between Normally Open and Normally Closed switches? A: A Normally Open switch maintains an open circuit until activated, while a Normally Closed switch keeps the circuit closed until activated. This means Normally Open switches are flat and short, while Normally Closed switches have a basic form and are longer.
Q: What are the specifications of the KW3AT-16 switch? A: The KW3AT-16 switch has a rating of 16(4)A at 125/250VAC, 10A at 30VDC, and a maximum temperature resistance of 125 degrees Celsius.
Q: Is the KW3AT-16 compatible with other models? A: Yes, the KW3AT-16 is downward compatible with the KW3A-16 model and has similar electrical performance, making it suitable for use in various microwave ovens.
Q: How can I tell if my microwave door switch needs to be replaced? A: If your microwave does not turn on or heat properly when the door is closed, it may be a sign that the door switch is faulty and needs replacement.
Q: What is included in the package? A: The package includes two Normally Open switches and one Normally Closed switch, providing everything needed for typical microwave door switch replacements.
Q: Can I install the KW3AT-16 switch myself? A: Yes, the KW3AT-16 switch can be installed by those with basic electrical knowledge. However, if you're unsure, it's recommended to consult a professional for installation.
Q: What are the typical signs of a faulty microwave door switch? A: Common signs of a faulty door switch include the microwave not starting when the door is closed, not heating food, or stopping mid-cycle.
Q: Is there any maintenance required for the KW3AT-16 switch? A: Generally, no maintenance is required for the KW3AT-16 switch. However, ensure that the switch is clean and free from debris to maintain optimal performance.
