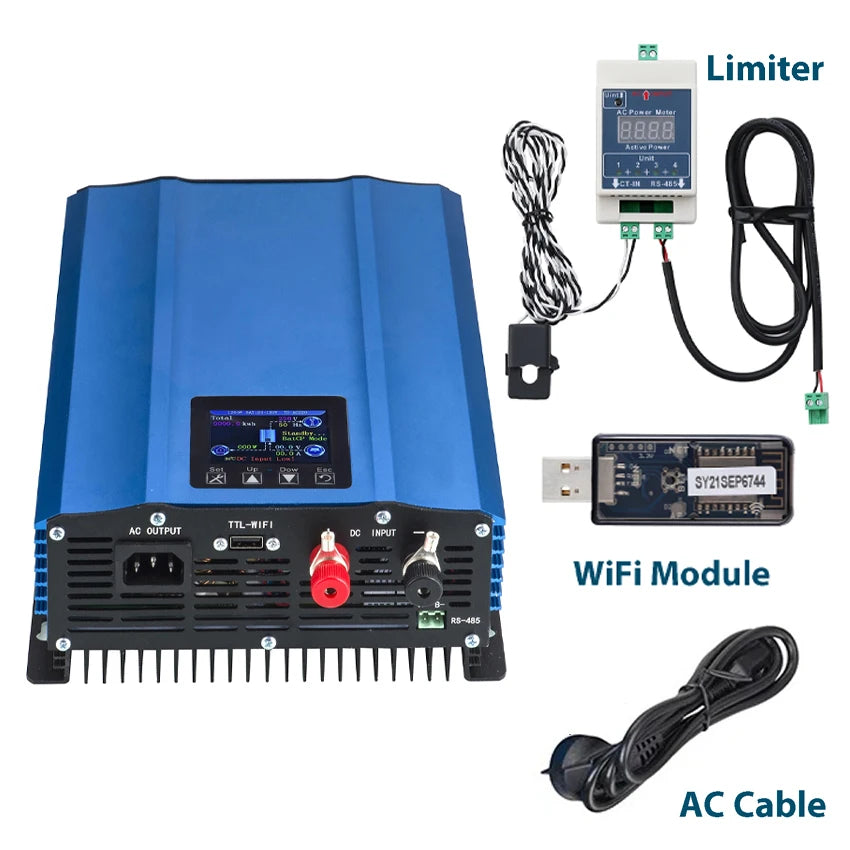

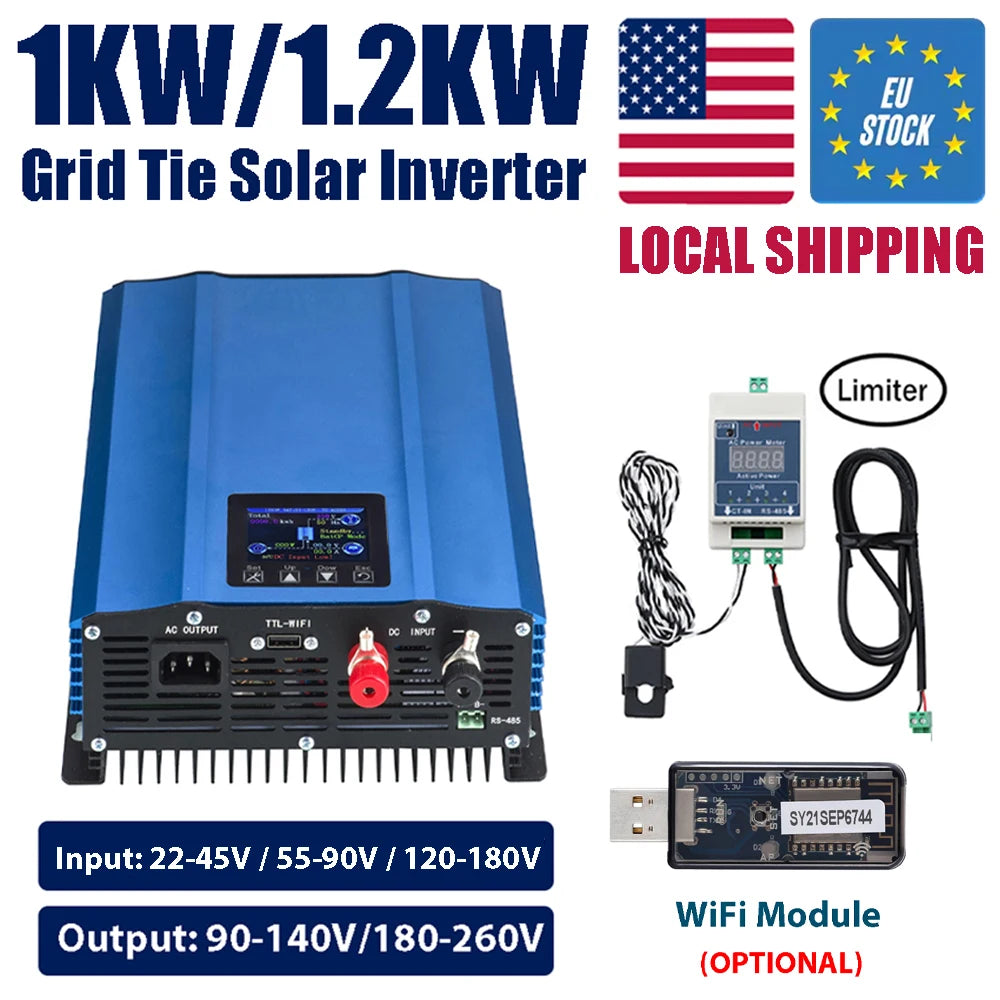

1KW 1200W Grid Tie Solar Inverter Battery Discharge DC 24V 26-45V/48V 55-90V PV Panels Input to AC 110V With LCD Limiter

1KW 1200W Grid Tie Solar Inverter Battery Discharge DC 24V 26-45V/48V 55-90V PV Panels Input to AC 110V With LCD Limiter

Regular price $295.15

Free Standard Shipping Across USA

Color :

Input Voltage :

26-45V (1000W) 120-180V(1200W) 55-90V (1200W)

Output Voltage|Ships From :

90-140V|United States 180-260V|United States

Wishlist

Brand: Homenkitchenshop

Type:

Sku: 1005009979499258-with wifi-26-45V (1000W)-90-140V-United States

Available : Instock

Sold by HomeNKitchenShop, an authorized reseller.

Returns accepted within 30 days | support@homenkitchenshop.com

✓ Verified

Shipping Information

Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Carefully packed to keep your home & kitchen items safe during transit
Tracking number sent via email once dispatched

Returns & Refund

Returns accepted within 30 days of delivery.

Damaged or Defective Item

Free return shipping + replacement or full refund

Wrong Item Received

Free return shipping + replacement or full refund

Change of Mind

Return shipping at customer's expense · Item must be unused, unwashed & in original packaging

All returns require a Return Authorization (RA) number before sending.

To initiate a return, contact us:

support@homenkitchenshop.com +1 832-730-5801

Safety & Compliance

Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

www.P65Warnings.ca.gov

Always follow manufacturer instructions for use, cleaning, and maximum temperature ratings. Do not use cookware or utensils that are cracked, chipped, or damaged.

Keep sharp kitchen tools out of reach of children. Use heat-resistant gloves when handling hot items.

Colors and finishes may vary slightly from product images due to screen settings and natural material differences. Follow care instructions to maintain product quality and longevity.

Not all products are suitable for outdoor use unless explicitly stated.

Secure payment

Guarantee safe checkout

1KW 1200W Grid Tie Solar Inverter Battery Discharge DC 24V 26-45V/48V 55-90V PV Panels Input to AC 110V With LCD Limiter - with wifi / 26-45V (1000W) / 90-140V|United States

Color

Input Voltage

Output Voltage|Ships From

$295.15

Description

SPECIFICATIONS

Brand Name: EVSOLAR

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Origin: Mainland China

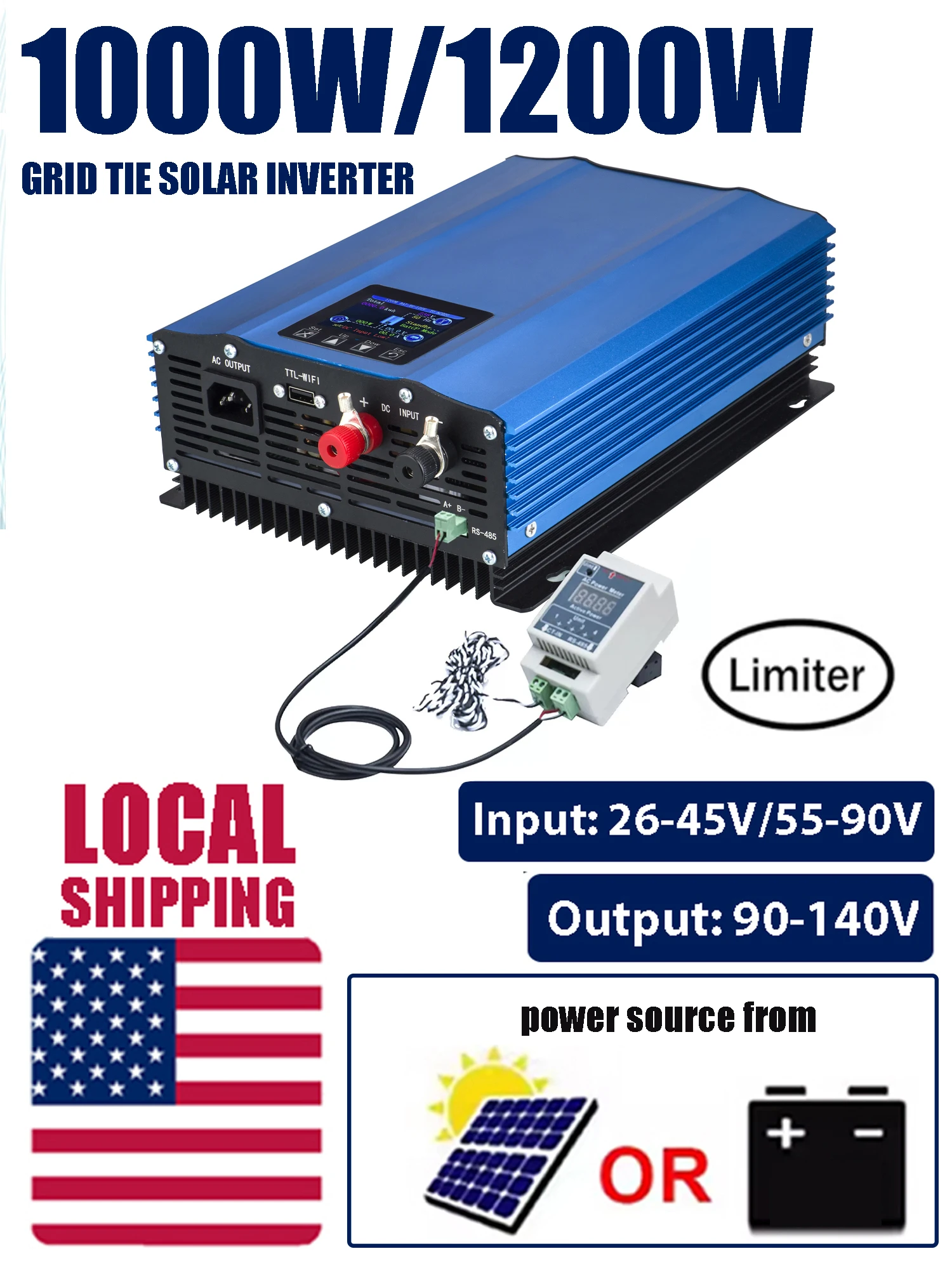

1000W Solar Grid Tie Inverter LCD Screen With Limiter Battery 24V Solar Panel Input 26-45V AC Output 110V 120V/220V 230V

Shipping from EU: With EU Cable

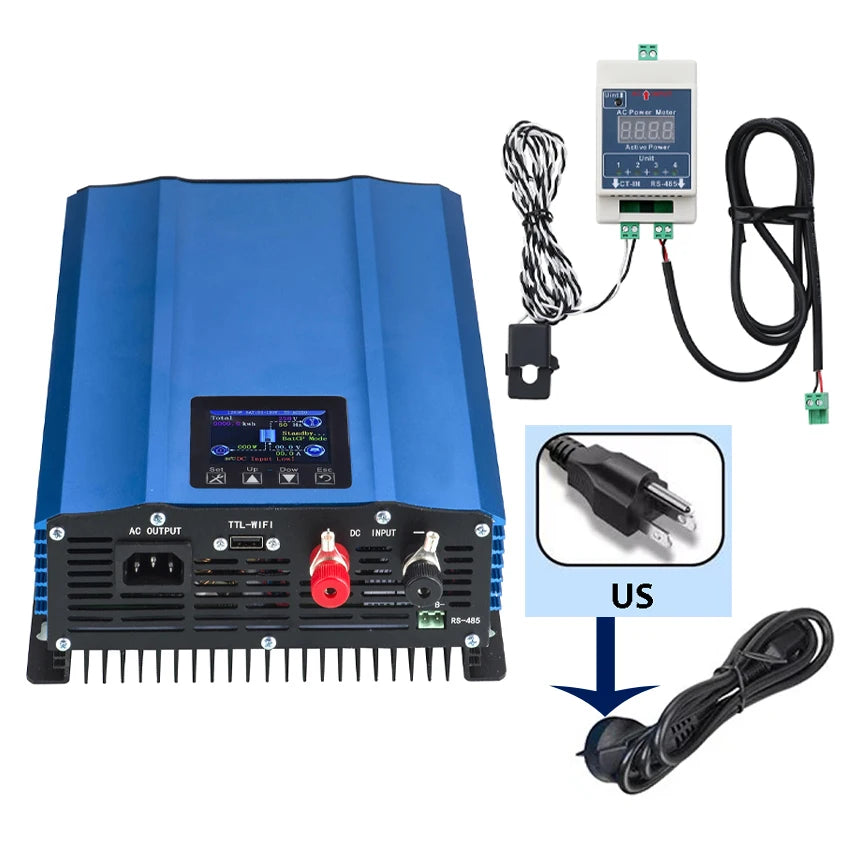

Shipping from US: With US Cable

Product Description:

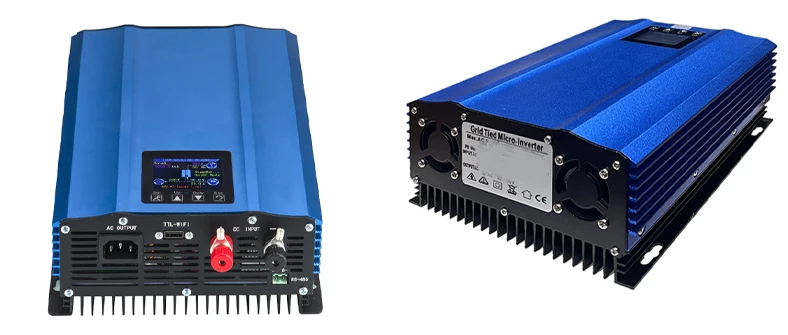

The GTN grid-tied inverter uses innovative grid-connected inverter technology, which has the same ability to serial and parallel connect multiple components in series with a centralized inverter, while also having a distributed micro-inverter Small size and high efficiency, built-in innovative speed-enhanced maximum power point tracking (MPPT) control algorithm, integrated LCD function display and LED status display. The whole machine uses a number of patented designs, with high circuit integration, reliable performance, comprehensive optimization of the heat dissipation system, compatibility with various types ofphotovoltaic panel components, easy to operate and install.

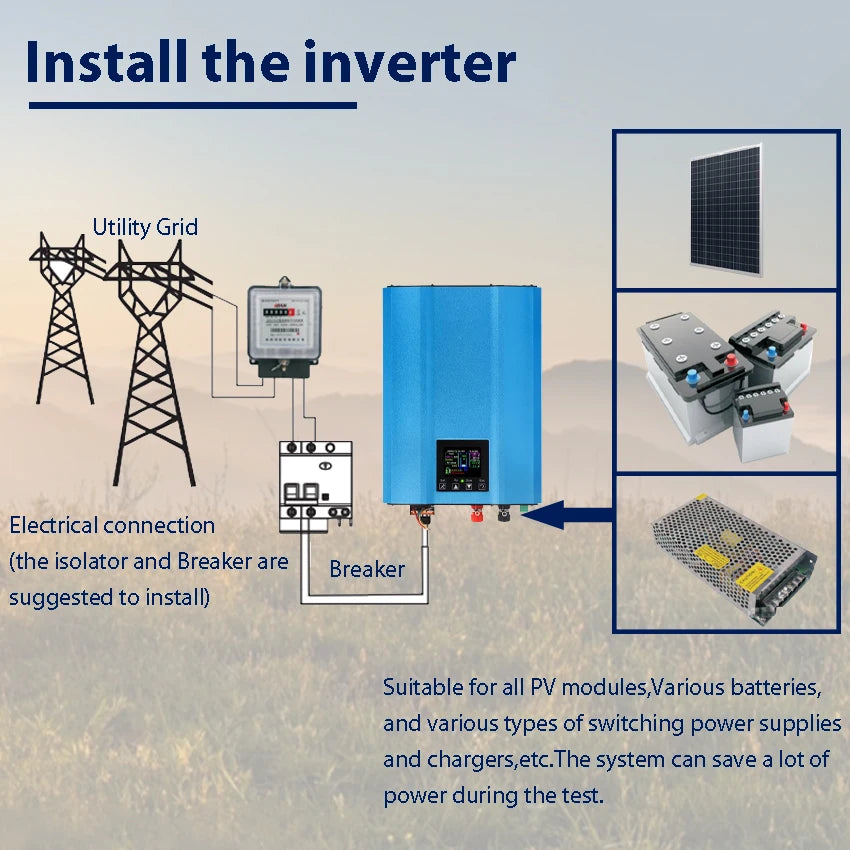

The grid-connected inverter can be applied to (such as various types of photovoltaic modules, various types of batteries, DC switching power supplies, DC motors, etc.) in the grid feed system or power supply type of load discharge, aging test and other systems. In the photovoltaic gridconnected inverter, the solar panel assembly can maximize the power output (built-in precision

MPPT), convert the output energy of the solar panel assembly to the grid, or use other switching power supplies and battery discharge tests.

Features of grid tie inverter:

With imported high-speed main control chip and powerdevice to improve system stability.
Advanced Maximum powerpoint tracking(MPPT)to ensure the high efficiency of system.
Efficiencyof MPPT>99%.

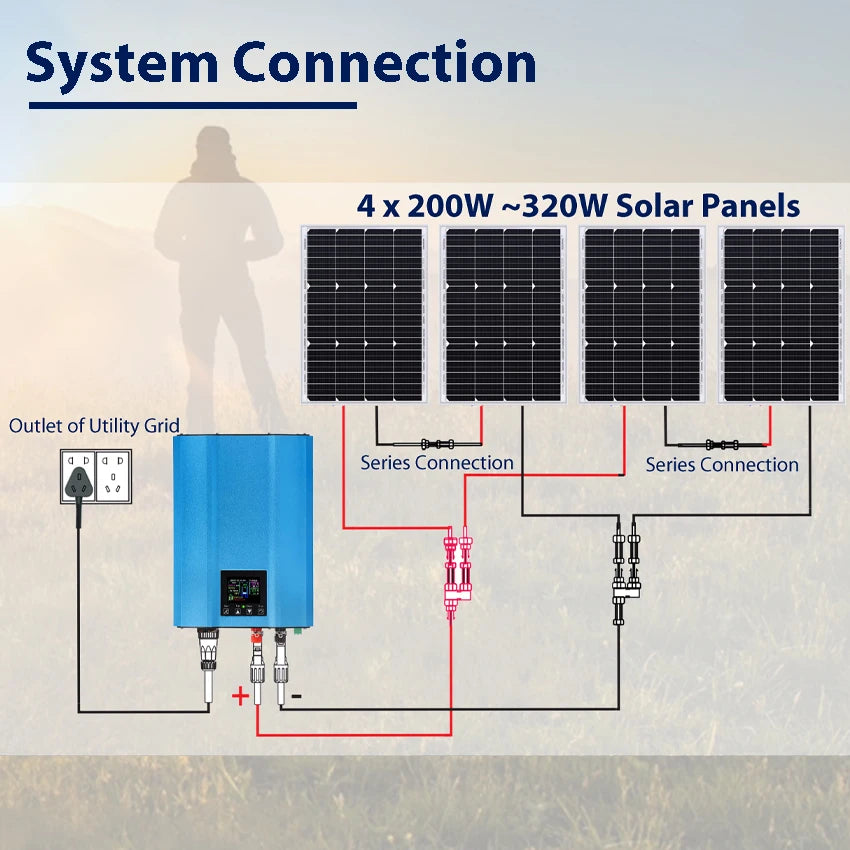

solarmodules can be serial/parallel input foreasy adjustment of system combination power.
High-efficiency and frequency transformer,sufficient patents.
Anti-islanding technology.
Multiple software, hardware system protection, advanced modular design,safe and reliable

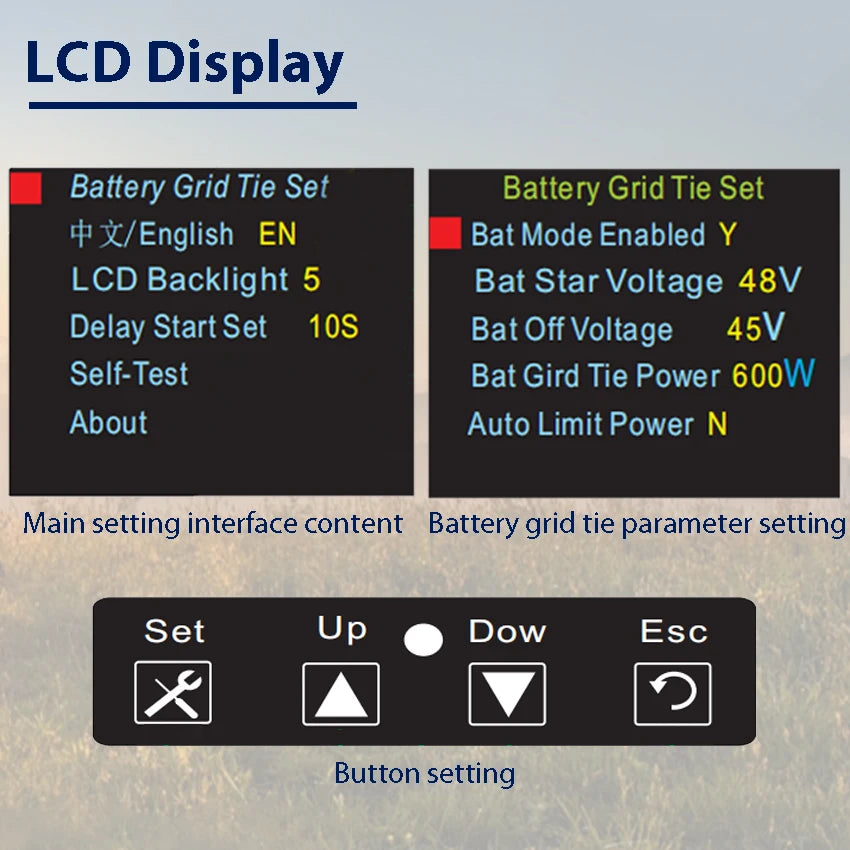

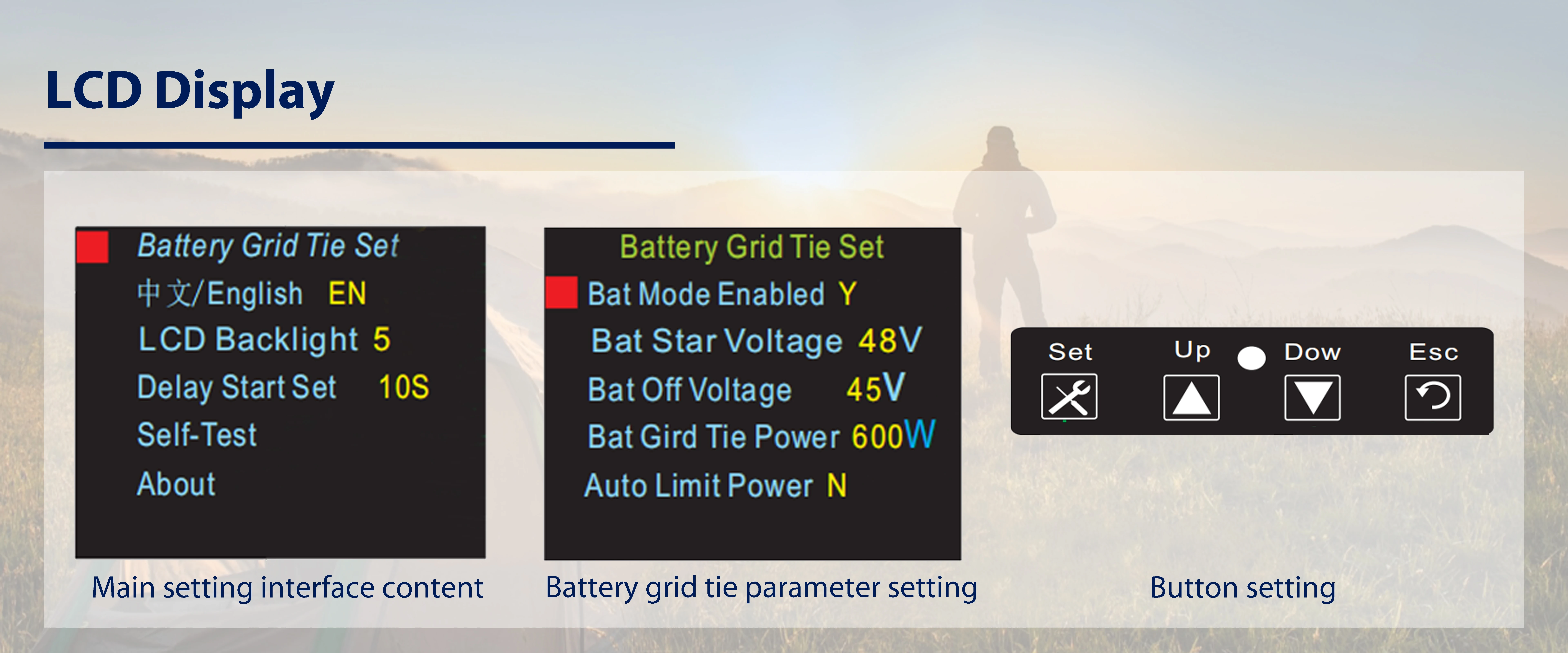

LCD rich content display function,userinterface,clear and intuitive.
Lightweight,easy to instal,operate and maintain.

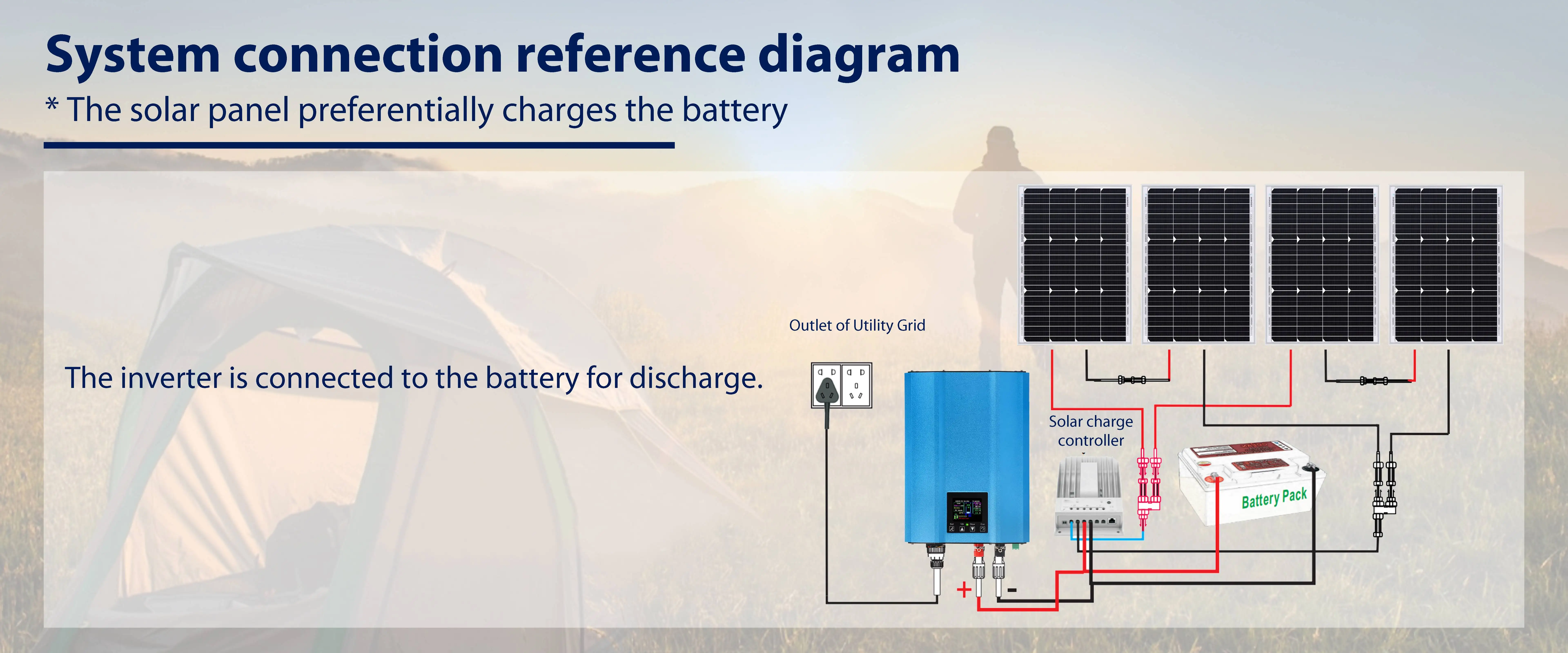

Supports access to various DC sources fordischarge and can be used as energy-saving feedback electronic loads.
Support RS-485 communication function,data transmission and remote control to operate various functions of this inverter.

Product Parameters

1000W

Model	GTN1000W
Data Name	DC Input Data
PV module open circuit voltage range(V)	24V~45V
PV module power range (W)	200W~1100W
MPPT operating voltage range(V)	21~31V
Battery voltage suitable for connection(V)	24V
Battery startup voltage setting range(V)	24~31V
Battery low voltage shutdown setting range(V)	21V~30V
Maximum input protection current(A)	40A
AC Output Data (AC 120V or AC 230V, 48-62HZ)
PV Mode AC Output Peak Power (W)	1000W
Battery mode output power setting range (W)	60-650W
Inverter conversion efficiency	88%
AC Voltage Range (V)	90V~140V for AC 120
AC frequency Range (Hz)	59.3~60.5 for 60Hz; or 47.5~51.5 for 50Hz
MPPT Efficiency	＞90%

1200W

Model	GTN1200W (BATTERY 48V)	GTN1200W (BATTERY 96V)
Data Name	DC Input Data
PV module open circuit voltage range(V)	55V~90V	120V~180V
PV module power range (W)	200W~1300W
MPPT operating voltage range(V)	44~70V	90~135V
Battery voltage suitable for connection(V)	48V	60V
Battery startup voltage setting range(V)	46~70V	90~120V
Battery low voltage shutdown setting range(V)	44V~69V	88~119V
Maximum input protection current(A)	30A	20A
AC Output Data (AC 120V or AC 230V, 48-62HZ)
PV Mode AC Output Peak Power (W)	1200W
Battery mode output power setting range (W)	60-800W
Inverter conversion efficiency	90%
AC Voltage Range (V)	90V~140V for AC120----US or 180V~260V for AC 230----EU (OPTIONAL)
AC frequency Range (Hz)	59.3~60.5 for 60Hz; or 47.5~51.5 for 50Hz
MPPT Efficiency	＞99%
