Commercial Inline SMART Water Filter

The Crystal Quest Commercial Single Inline Water Filters eliminate the impurities of tap water to offer greater taste and pureness. The perfect solution for any application, it is quick and easy to install and use, attractive, convenient, and effectively removes many contaminants from water. This uniquely designed water filter uses the latest technologies that blend the adsorption capabilities of coconut shell activated carbon with REDOX and more.

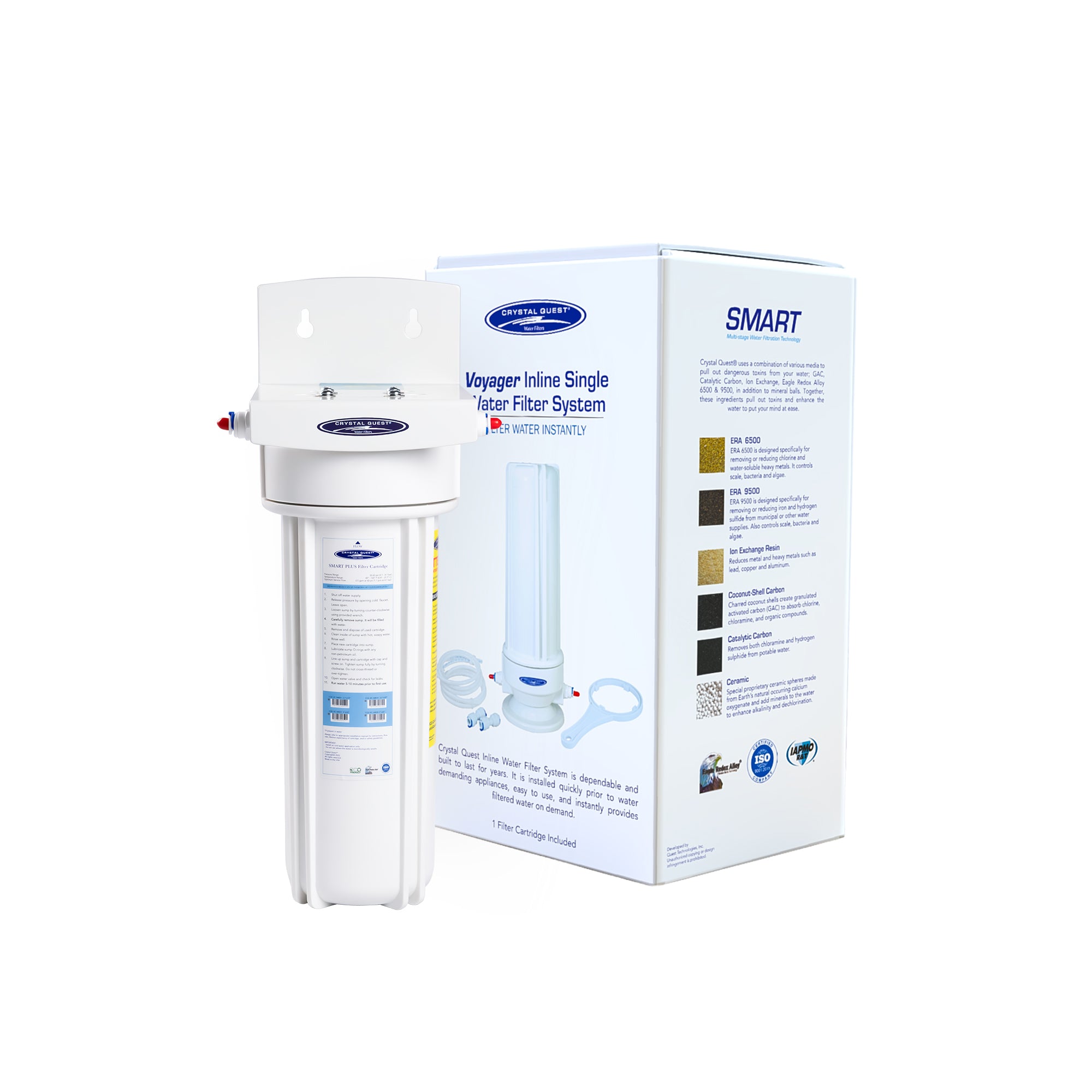

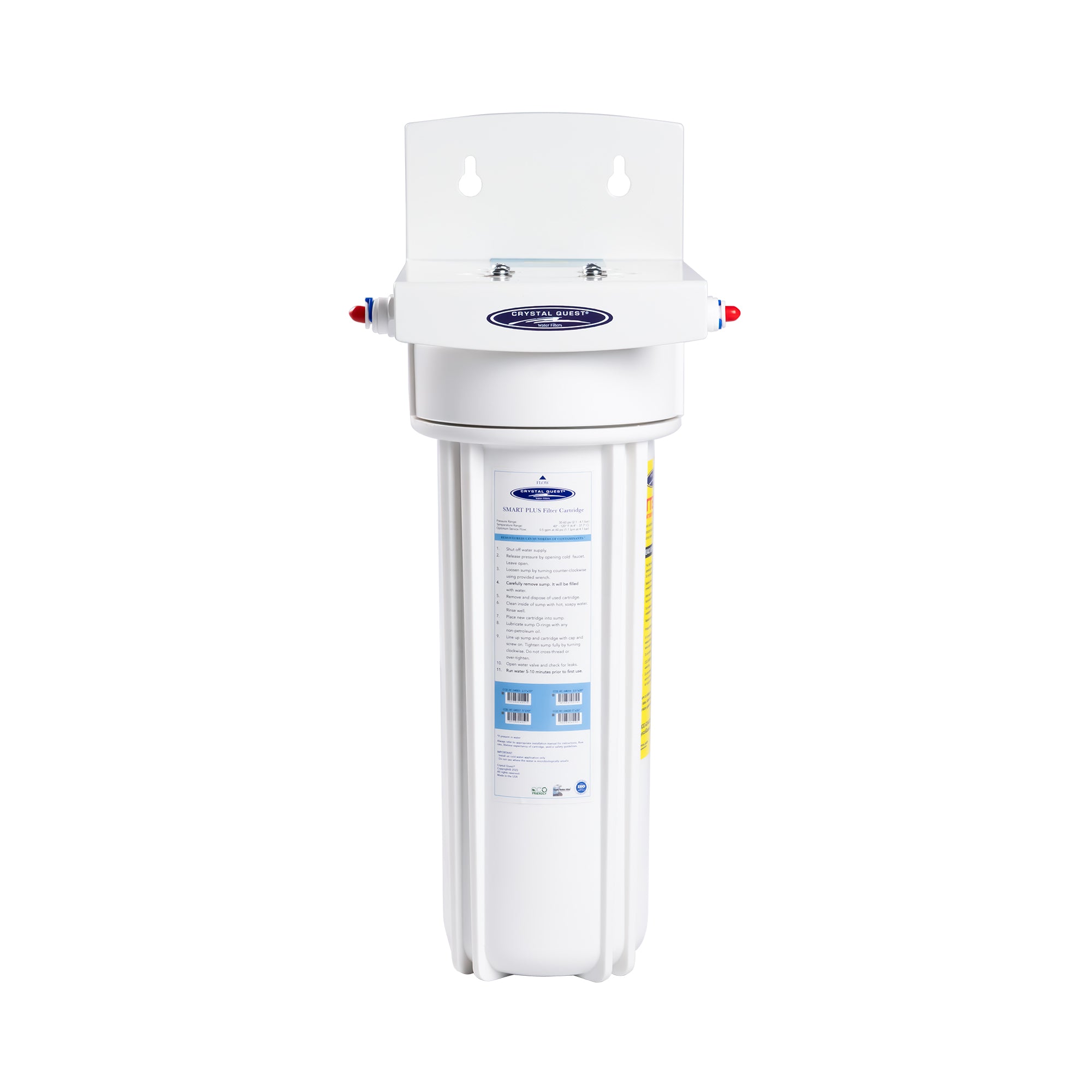

Single Inline SMART Water Filter

• Water travels through 6 stages of filtration, removing many contaminants from water.
• Conveniently provides 10,000 gallons of water (1-3 years, or when the flow of water will automatically either stop or slow down greatly.)
• Available at 1/4" NPT input/output.
• Designed in an attractive white housing, conveniently provides 10,000 gallons of water (1-3 years, or when the flow of water will automatically either stop or slow down greatly.)
• Also available for 20,000 gallons (2-4 years), and 30,000 gallons (3-5 years) filtration capacity.
• Dimensions: 5"L x 14"H (10"+4" to change cartridge) x 5"W
• Weight: 6 lbs.

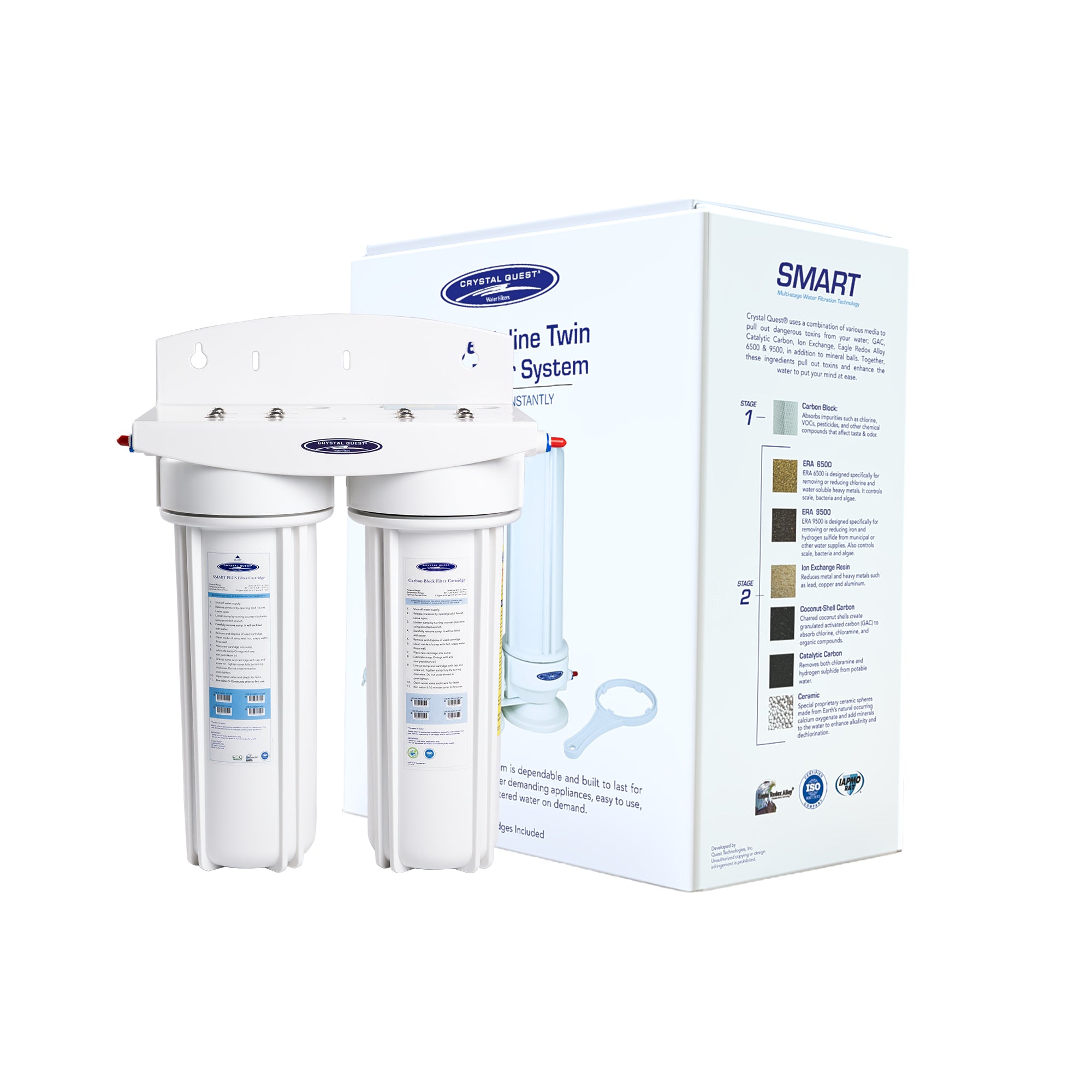

Double Inline SMART Water Filter

• Water travels through 7 stages of filtration, removing many contaminants from water.
• First, water flows through a solid carbon cartridge for removing volatile organic carbon compounds (VOC's), insecticides, pesticides and industrial solvents. Then, water flows through a 6-stage cartridge, removing hundreds of contaminants from water.
• Conveniently provides 10,000 gallons of water (1-3 years, or when the flow of water will automatically either stop or slow down greatly.)
• Available at 1/4" NPT input/output.
• Also available for 20,000 gallons (2-4 years), and 30,000 gallons (3-5 years) filtration capacity.
• Dimensions: 5" x 12"
• Weight: 9 lbs.

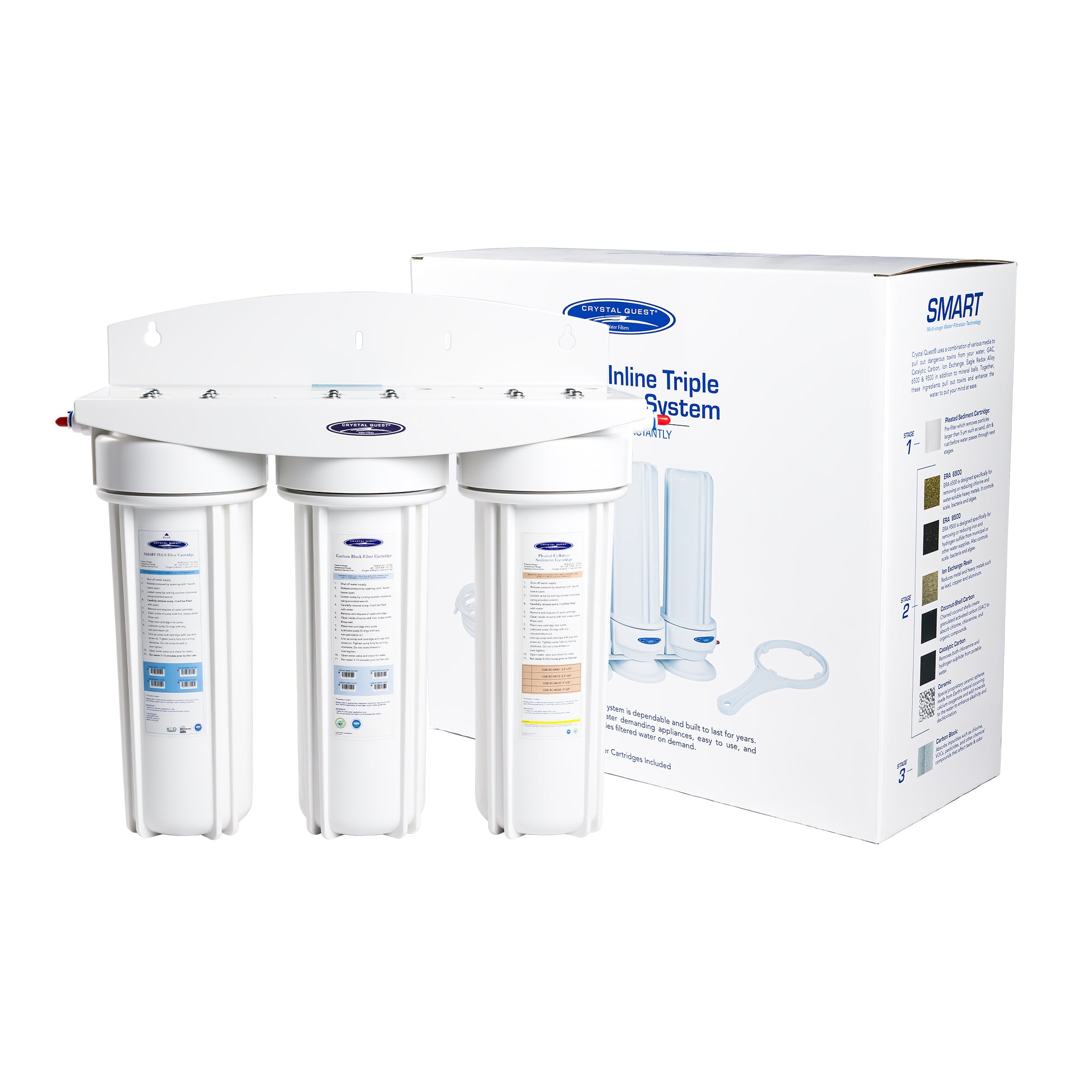

Triple Inline SMART Water Filter

• Water travels through 8 stages of filtration, removing many contaminants from water.
• First, water flows through a sediment filter cartridge that removes sediment, silt, sand and dirt. This also extends the life of the water filter. Next, water flows through a 6-stage cartridge, removing hundreds of contaminants from water. Then, water flows through a solid carbon cartridge for removing volatile organic carbon compounds (VOC's, insecticides, pesticides and industrial solvents).
• Conveniently provides 10,000 gallons of water (1-3 years, or when the flow of water will automatically either stop or slow down greatly.)
• Available at 1/4" NPT input/output.
• Also available for 20,000 gallons (2-4 years), and 30,000 gallons (3-5 years) filtration capacity.
• Dimensions: 15"L x 14"H (10" + 4" to change cartridge) x 5"W
• Weight: 14 lbs.

###

Min Operating Pressure: 20 psi (pounds per sq. in.)
Max Operating Pressure: 60 psi (pounds per sq. in.)
Min Operating Temperature: 40 degrees F
Max Operating Temperature: 90 degrees F
Max Flow Rate: 0.5 gallons per minute

###

###
