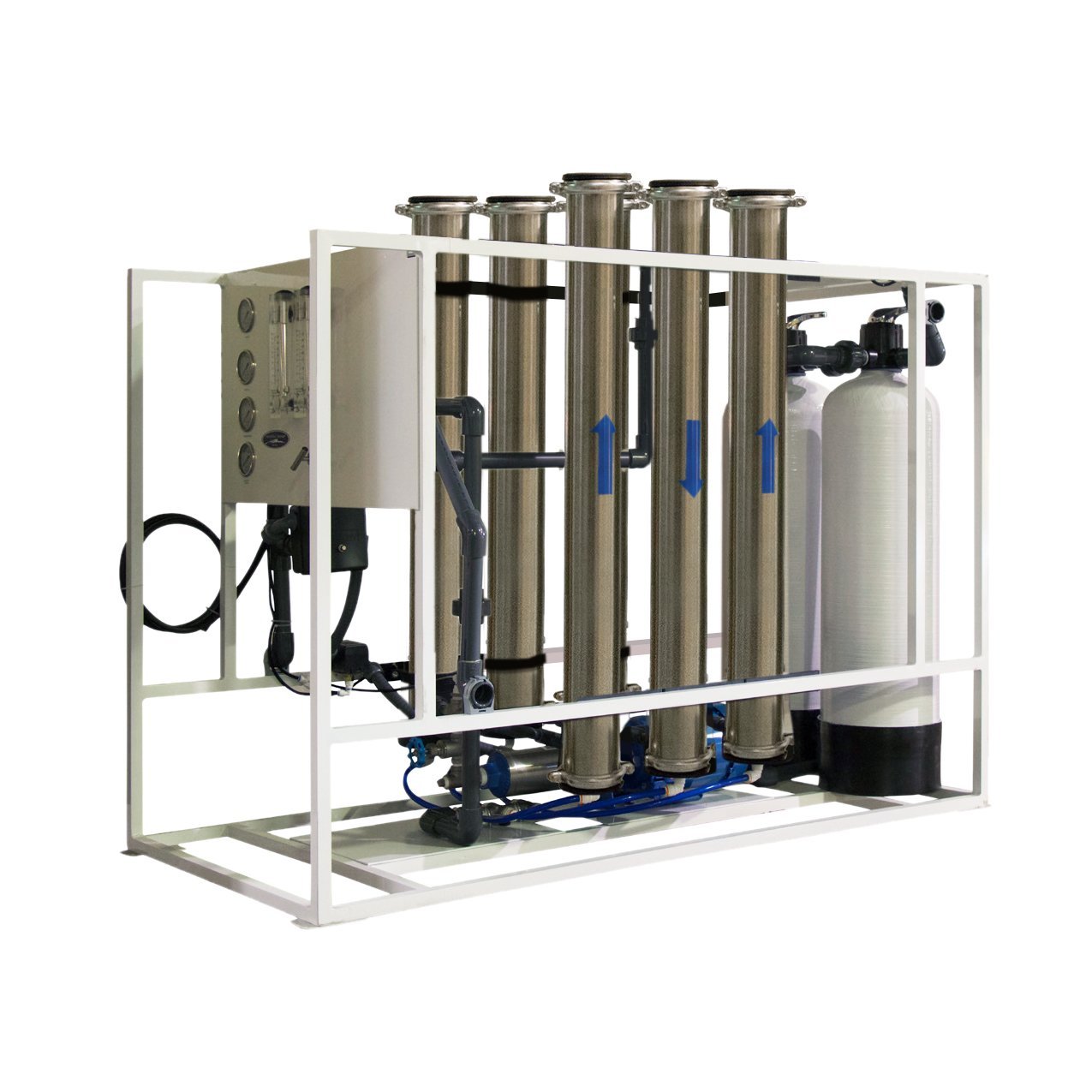

Commercial Reverse Osmosis Water Filter System - 10000 Gallons Per Day

$15,832.65

Description

REVERSE OSMOSIS | COMMERCIAL WATER FILTRATION SYSTEM 10000 GPD

Optional Features:

Stainless Steel Housings: Two 2.5” x 21” PuroTech Stainless Steel Membrane Housings 3/8” FNPT
TDS Meter: One Panel Mount TDS Meter, Provides you with accurate readings of the feed and product water quality.
Float Switch: One Mechanical Float Switch, For atmospheric storage tank applications.
Flow Meters: One Product (0-2 GPM) & One Waste (0-5 GPM) Flow Meters, Enables operator to accurately adjust product to waste ratio and monitor systems performance.
Concentrate Re-Circulate: This feature offers a higher recovery rate for the system by taking a % of the waste water and feeding it back into the system.
Additional cost will apply to listed price for custom modification based on water laboratory test report.

###

Station Design

Gallons Per Day: 10000 @ 77° F

Dimensions (Approx.): 49" x 33" x 54"

Weight (Approx.): 385 lbs.

Concentrate Re-Circulate: Optional

Auto Flush: Optional

Element Size (in.): 4040 TFC HF1

Elements (Qty.): 6

Motor HP: 3

Voltage: 110 or 220 Volts AC

Hertz: 60 or 50 cycles

Feed Connection: 2"

Product Connection: 1"

Waste Connection: 1"

Minimum Feed Pressure: 45 psi

Minimum NaCl - % Rejection: 96%

Minimum Feed (GPM): 14

Maximum Hardness: 15 Grains / Gallon

Maximum TDS: 2000 ppm

Operating Pressure: 150 psi

Maximum NaCl - % Rejection: 98.5%

Maximum Feed (GPM): 30

pH Range: 3 - 11

Maximum Temperature: 105° F

Membrane: Six 4" x 40" TFC HF1 Membranes, For rejection of impurities and high flow.

Membrane Housing: Six 4" x 40" Champ Membrane Housing, Features a patented design and requires no tools for servicing.

Pump & Motor: One Gould's 3 HP Multistage Pump and Motor, 110 or 220 volts AC, 60 or 50 hertz, single Phase, designed for continuous high pressures.

Frame: Aluminum, White Powder Coated, Corrosion resistant, and light weight.

Sediment Filter: One 18" FSI Bag 10 Micron Sediment Filter, Removes sediments and protects the system.

Sediment Filter: One 4.5" x 20" 5 Micron Polyethylene Sediment Filter, removes sediments and protects the system down to 5 microns.

GAC/ERA Filter: One 4.5" x 20" Coconut Shell GAC/Eagle Redox Alloy Filter.

Filter Housing: One 4.5" x 20" Big Grey Double O-Ring Filter Housing, Offers durability and improved sealing capabilities.

Pressure Gauges: Two 2.5" Gauges, 0-300 PSI, Panel Mount, Glycerin Filled, and Two 1.5" Dry Gauges, 0-160 psi, Top Mount, For monitoring the system's operating pressure, the filter and carbon operating pressure.

Low Pressure Switch: One McCann's Low Pressure Switch Safety, Device to protect the pump from running dry when there is insufficient feed water pressure.

High Pressure Switch: One Square D High Pressure Switch, Automatically starts when the tank pressure falls below 40 psi and stops when the pressure reaches 60 psi

Solenoid Valve: One Solenoid Valve with manual override, 110 or 220 Volts AC, 60 or 50 Hertz, Assists with the on/off functionality of the system.

Manual Flush Valve: One 1/2" Brass Needle Valve, Regulates the product to waste ratio (systems recovery).

Computer Controller: One Rotrol S-150 Computer Controller, 110 or 220 volts AC, with built-in TDS monitor, pre-treat lockout, tank full contacts, low pressure monitoring, and alarm.

Flow Meters: One Product (0-10 GPM) & One Waste (0-20 GPM) Flow Meters, Enables operator to accurately adjust product to waste ratio, and monitor systems performance.

TDS Meter: One Panel Mount TDS Meter, provides accurate readings of the feed and product water quality.

Easy Maintenance & Operation: CRYSTAL QUEST® commercial reverse osmosis systems feature a compact design and have all of their components strategically located for easy access and inspection.
