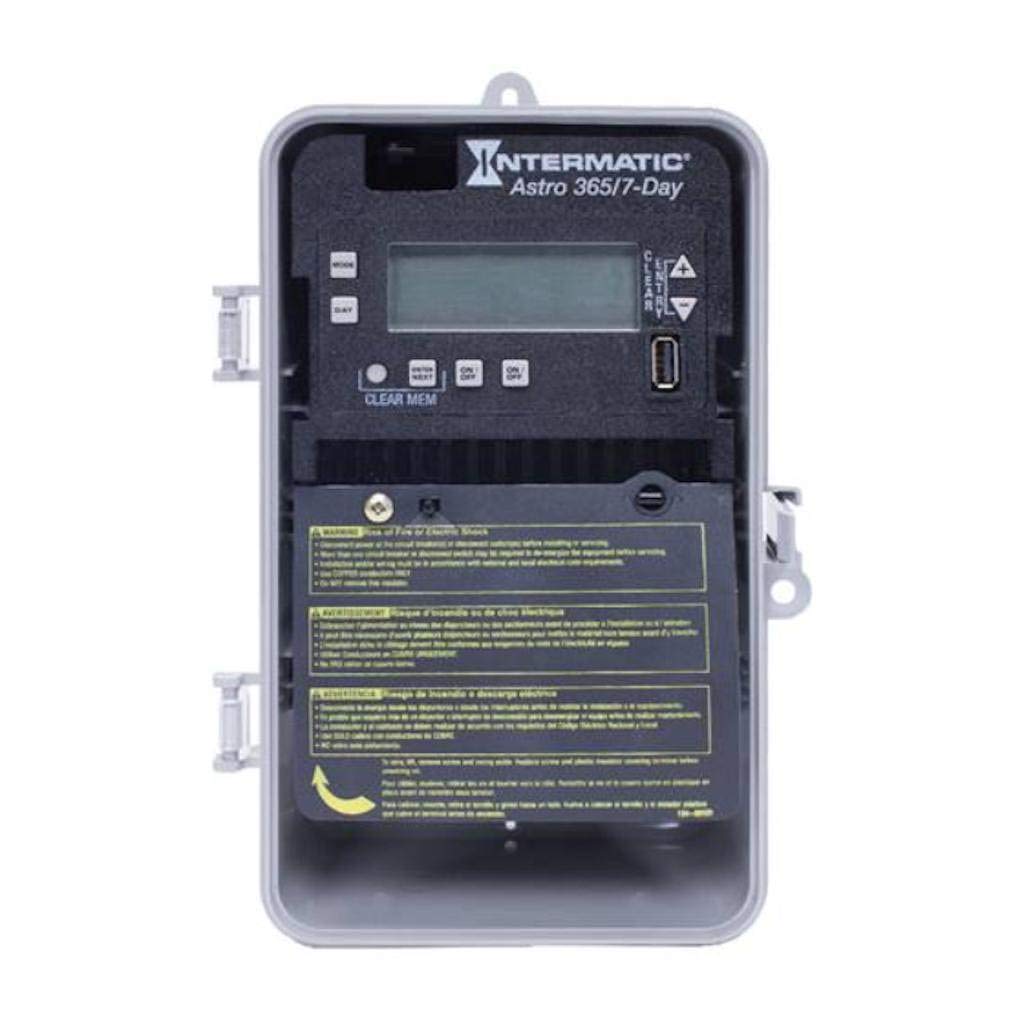

Intermatic - Et2825Cp - Intermatic Et2825Cp 365/7-Day Astronomic (Dusk and Dawn) Timer Switch, 2Xspst

Technical Specification Item Electronic Timer Operation Mode Astro 7/365 Days Number Of Channels 2 Contact Form Spst Voltage 120 To 277Vac Amps 30 Hp @ 120V 1 Hp @ 240V 2 Events Available - Electronic Timer 96 Available Actions - Electronic Timer On/Off, Pulse Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event Pulse Duration 2 Sec. Enclosure Plastic Mounting Surface Number Of Poles 2 Min. Time Setting 1 Min. Max. Time Setting 7 Days Nema Rating 3R Color Gray Backup Device Capacitor Backup Time 100 Hr. Operating Temp. -40 Degrees To 155 Degrees F Display Height 1 Display Width 3 Height 10 Depth 4 Width 6-1/2 Description/Special Features Outdoor Standards Ul Listed, California Title 20 Listed, Led Listed This Listing Is For Each. Upc: 078275147713 Action: 2 X Spst Amperage Rating: 30 Application: Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor/Outdoor Brand: Intermatic Connection: Wire Lead Contact Configuration: 1 No Contact Rating: 30 Amp @ 120/240 Vac, 20 Amp @ 28 Vdc (Resistive), 30 Amp @ 120/240 Vac (Inductive), 5 Amp @ 120/240 Vac (Tungsten), 20 Amp @ 120 - 277 Vac, 10 Amp @ 120/277 Vac (Ballast) Enclosure: Type 3R Plastic Frequency Rating: 50/60 Gross Weight: L Gtin: 00078275147713 Height: 10. 0600 Length: 6. 5600 Motor Power: 1 Hp @ 120 Vac, 2 Hp @ 240 Vac Mounting: Wall Mount Number Of Poles: 1 Operating Temperature: -40 To +155 Deg F, -40 To +68 Deg C Order Minimum: 6. 000 Special Features: Features: Automatic Voltage Detection For Fast, Easy, Out-Of-The-Box Installations, Control Different Load Types And Voltages From A Single Control, Adjust Daylight Savings Time Through Software, Rather Than Dip Switches, Configurable Outputs Allow These Models To Cover Various Types Of Applications With A Single Clock, New Mode Of Operation Allows For Manual On/Off Buttons To Operate As A 2-Hour Override, Non-Volatile Eeprom Memory Protects.
