What is the purpose of the NANPU DFR-03 Air Drying System?

The NANPU DFR-03 Air Drying System is designed to filter and regulate air pressure for pneumatic systems, ensuring clean, dry air for optimal performance.

How do I install the NANPU DFR-03 Air Drying System?

To install, clean the port and fitting, ensuring proper airflow direction as indicated on the unit. Adjust the pressure using the knob and ensure all fittings are securely tightened.

What materials are used in the construction of the NANPU DFR-03?

The NANPU DFR-03 is made from aluminum, plastic, and brass, providing durability and resistance to corrosion.

What is the maximum supply pressure for this system?

The maximum supply pressure for the NANPU DFR-03 is 145 psi.

What should I do if the water bowl becomes full?

If the water bowl reaches its upper limit, drain it to prevent poor dehumidification. The system features a semi-auto drain function that operates when there is no air pressure.

Can I adjust the operating pressure on this air drying system?

Yes, you can adjust the operating pressure from 0 to 125 psi by turning the pressure adjustment knob.

What is the flow rate of the NANPU DFR-03?

The flow rate is 70 standard cubic feet per minute at 90 psi, making it suitable for various pneumatic applications.

Does this product include all necessary installation accessories?

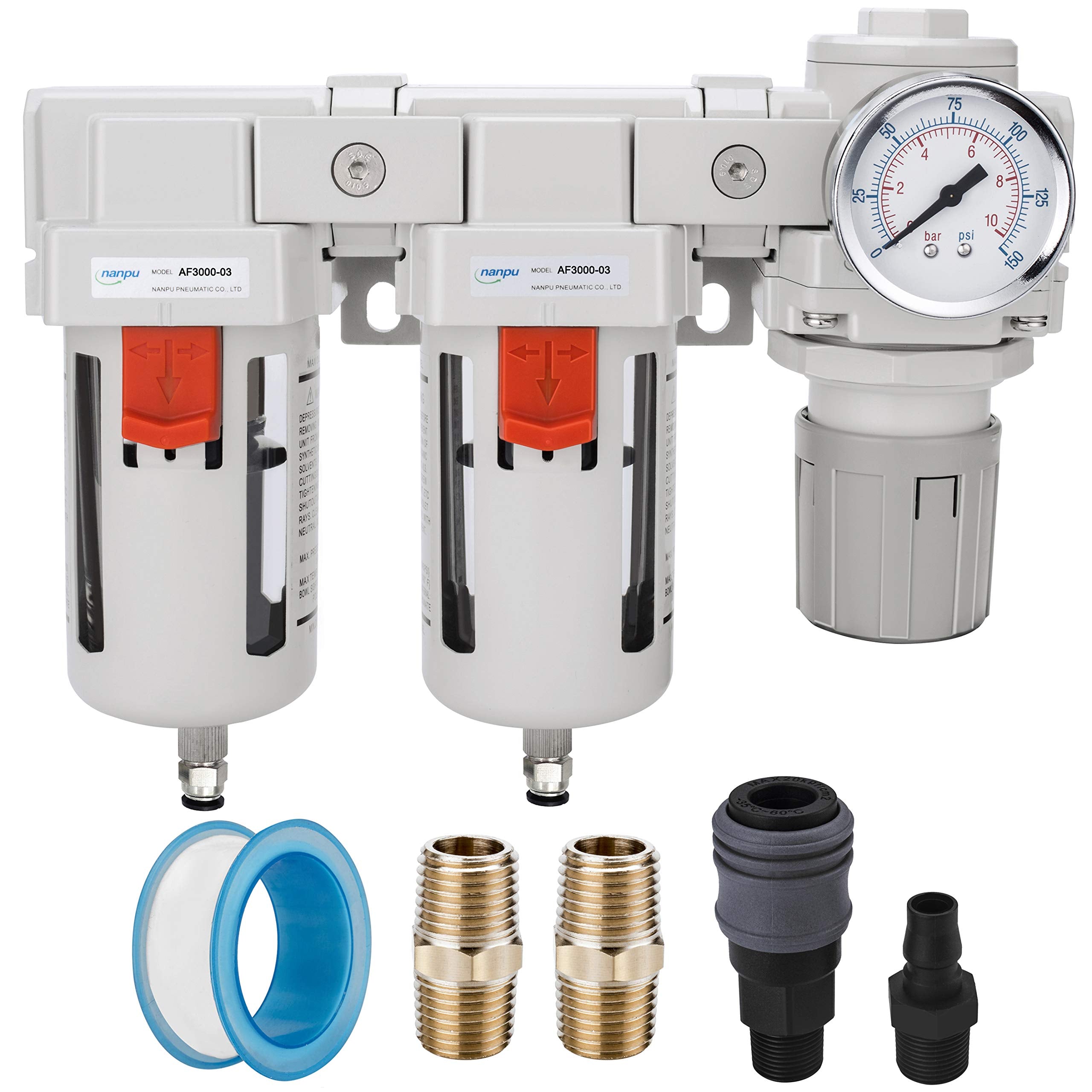

Yes, the NANPU DFR-03 includes a pair of air coupler and plug kit, two 3/8 inch NPT fittings, and thread seal tape for easy installation.

What is the temperature range for the NANPU DFR-03?

The operating temperature range for the NANPU DFR-03 is from 41 to 140 degrees Fahrenheit.

Is the NANPU DFR-03 easy to maintain?

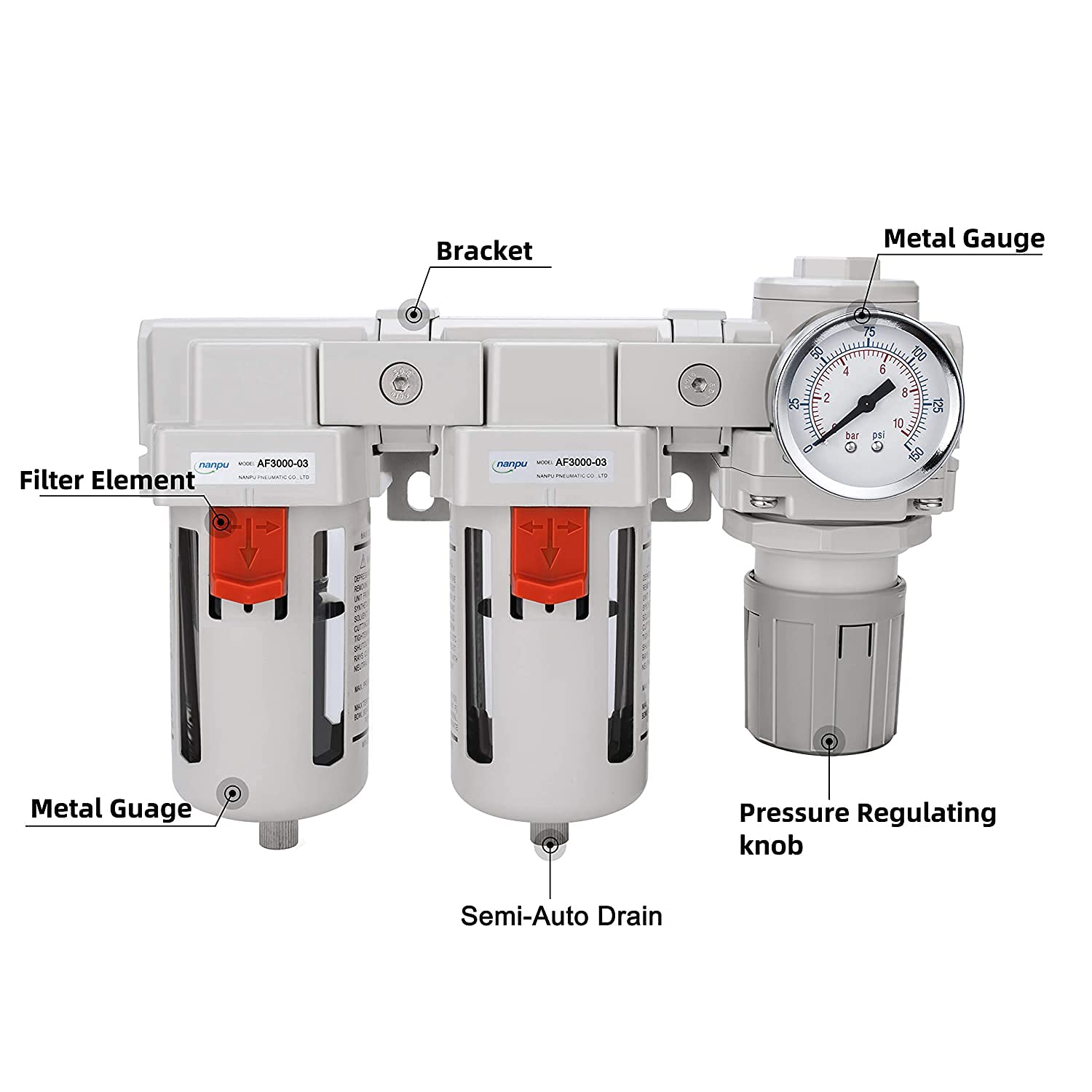

Yes, the NANPU DFR-03 is designed for easy maintenance, with features that allow for simple draining of the water bowl and accessible filter elements.

Nanpu Dfr-03 38 Npt Air Drying System - Double Air Filters, Air Pressure Regulator Combo - Semi-Auto Drain, Poly Bowl

Nanpu Dfr-03 38 Npt Air Drying System - Double Air Filters, Air Pressure Regulator Combo - Semi-Auto Drain, Poly Bowl

Regular price $60.88

Hurrify, 5 item(s) left in stock!

Wishlist

Brand: Nanpu

Type: Kitchen & Dining,Kitchen Storage & Organization,Drawer Organizers

Sku: WBKITB07Z5PHJS6

Available : Instock

Sold by HomeNKitchenShop, an authorized reseller.

Returns accepted within 30 days | support@homenkitchenshop.com

✓ Verified

Shipping Information

Free Standard Shipping — United States only
Processing Time: 1–3 business days
Estimated Delivery: 3–5 business days after dispatch
Carefully packed to keep your home & kitchen items safe during transit
Tracking number sent via email once dispatched
Orders over $250 require signature upon delivery. Taxes calculated at checkout.

Returns & Refund

Returns accepted within 30 days of delivery.

Damaged or Defective Item

Free return shipping + replacement or full refund

Wrong Item Received

Free return shipping + replacement or full refund

Change of Mind

Return shipping at customer's expense · Item must be unused, unwashed & in original packaging

All returns require a Return Authorization (RA) number before sending.

To initiate a return, contact us:

support@homenkitchenshop.com +1 832-730-5801

Safety & Compliance

Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

www.P65Warnings.ca.gov

Always follow manufacturer instructions for use, cleaning, and maximum temperature ratings. Do not use cookware or utensils that are cracked, chipped, or damaged.

Keep sharp kitchen tools out of reach of children. Use heat-resistant gloves when handling hot items.

Colors and finishes may vary slightly from product images due to screen settings and natural material differences. Follow care instructions to maintain product quality and longevity.

Not all products are suitable for outdoor use unless explicitly stated.

Secure payment

Guarantee safe checkout

Nanpu Dfr-03 38 Npt Air Drying System - Double Air Filters, Air Pressure Regulator Combo - Semi-Auto Drain, Poly Bowl

$60.88

Description

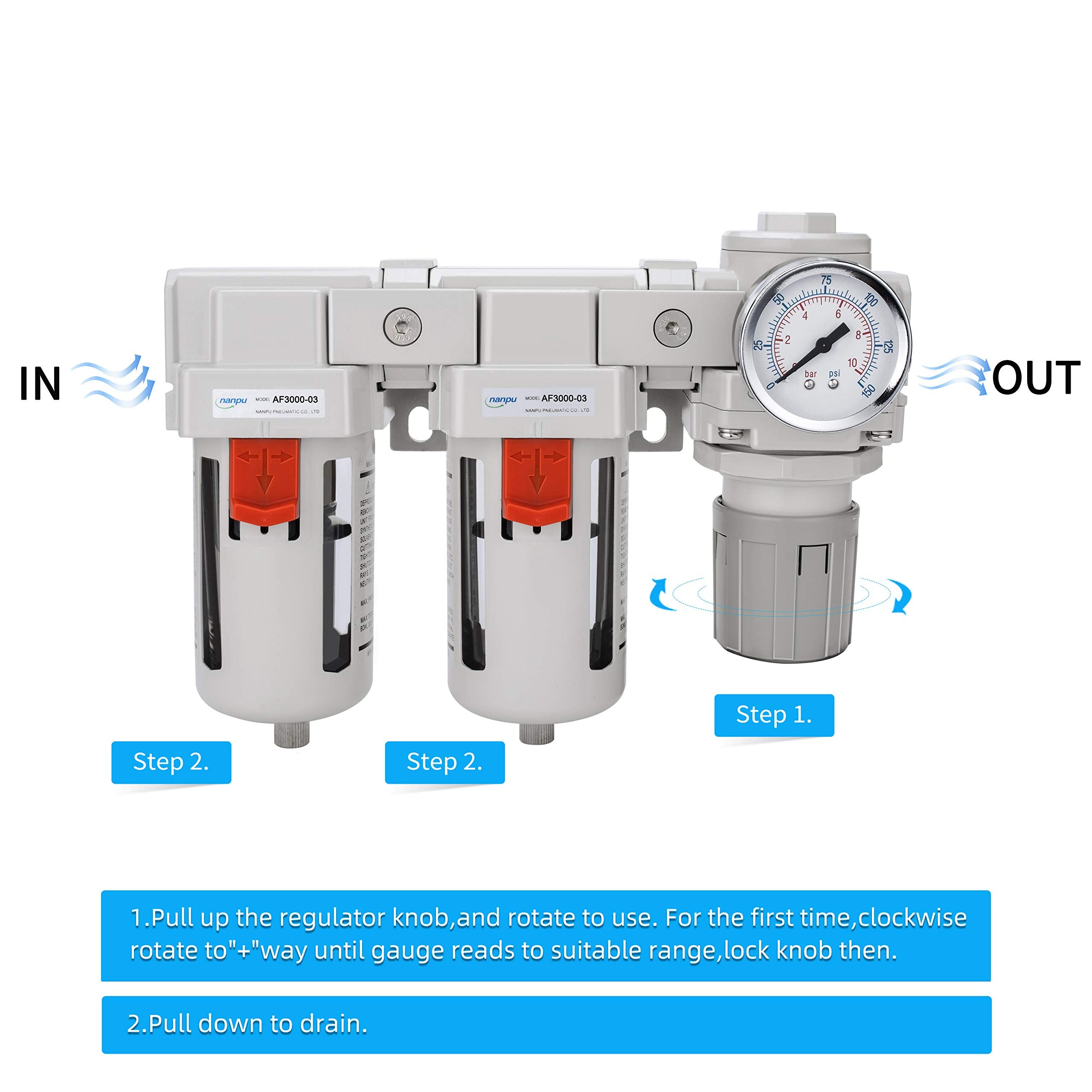

Installation And Operating: 1 Please Cleaning The Port And Fitting Before Installing, Avoiding Bringing Dirty Thing To The Air Path2 Pay Attention To Direction Of Air Flow And Arrow Pointing On Body If Match, Minding Port And Tooth Type If Correct3 Adjustment Of Pressure: Pull Up The Knob Of Adjustment Of Pressure Up, Clockwise Rotation, Pressure Is Rising Anticlockwise Rotation, Pressure Is Down Watch The Air Gauge And Point Range And Adjust The Required Pressure, Then Press The Button To The Lock Status4 Water Bowl Excretion When It Is No Air Pressure, Water Bowl Will Automatic Excrete When It Has Air Pressure, The Drainage Column Will Rise Water Bowl Excreted, Releasing The Drainage Column After Drainage Finished, Then Drainage Column Will Automatic Rebound, Drainage Ended When The Water Level Is Beyond Upper Limit, Please Drainage Otherwise That Will Cause Poor Dehumidification Notice: Please Be Careful To Use A Wrench To Tighten The Fitting It Is Normal If There Are Extra Threads, You Can Feel Free To Use The First Installation May Have An Excretion Reaction(Not Leakage, For The First Time The Internal Pressure Is Different From The Outside, It Is Necessary To Discharge The Excess Air First In This Case, Please Wait For A While

Frequently Asked Questions

Q: What is the purpose of the NANPU DFR-03 Air Drying System? A: The NANPU DFR-03 Air Drying System is designed to filter and regulate air pressure for pneumatic systems, ensuring clean, dry air for optimal performance.
Q: How do I install the NANPU DFR-03 Air Drying System? A: To install, clean the port and fitting, ensuring proper airflow direction as indicated on the unit. Adjust the pressure using the knob and ensure all fittings are securely tightened.
Q: What materials are used in the construction of the NANPU DFR-03? A: The NANPU DFR-03 is made from aluminum, plastic, and brass, providing durability and resistance to corrosion.
Q: What is the maximum supply pressure for this system? A: The maximum supply pressure for the NANPU DFR-03 is 145 psi.
Q: What should I do if the water bowl becomes full? A: If the water bowl reaches its upper limit, drain it to prevent poor dehumidification. The system features a semi-auto drain function that operates when there is no air pressure.
Q: Can I adjust the operating pressure on this air drying system? A: Yes, you can adjust the operating pressure from 0 to 125 psi by turning the pressure adjustment knob.
Q: What is the flow rate of the NANPU DFR-03? A: The flow rate is 70 standard cubic feet per minute at 90 psi, making it suitable for various pneumatic applications.
Q: Does this product include all necessary installation accessories? A: Yes, the NANPU DFR-03 includes a pair of air coupler and plug kit, two 3/8 inch NPT fittings, and thread seal tape for easy installation.
Q: What is the temperature range for the NANPU DFR-03? A: The operating temperature range for the NANPU DFR-03 is from 41 to 140 degrees Fahrenheit.
Q: Is the NANPU DFR-03 easy to maintain? A: Yes, the NANPU DFR-03 is designed for easy maintenance, with features that allow for simple draining of the water bowl and accessible filter elements.
