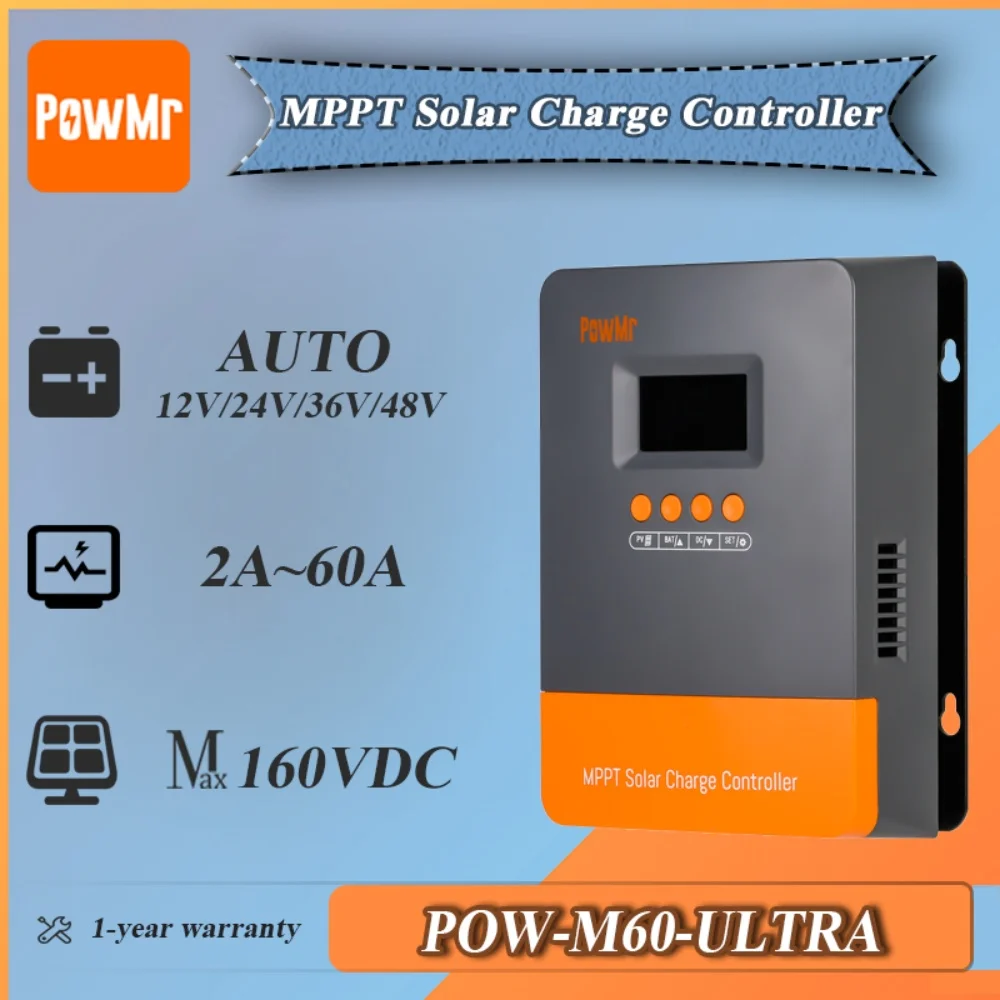

PowMr 12V 24V 36V 48V MPPT Solar Charge Controller PV160V 60A Auto Support up to 12 parallel connections for Solar Home System

PowMr 12V 24V 36V 48V MPPT Solar Charge Controller PV160V 60A Auto Support up to 12 parallel connections for Solar Home System

Regular price $106.37

Free Standard Shipping Across USA

Color :

Rated Voltage :

12V 24V 36V 48V Auto

Ships From :

United States Germany

Wishlist

Brand: Homenkitchenshop

Type:

Sku: 1005010664004706-60A-12V 24V 36V 48V Auto-United States

Available : Instock

Sold by HomeNKitchenShop, an authorized reseller.

Returns accepted within 30 days | support@homenkitchenshop.com

✓ Verified

Shipping Information

Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Carefully packed to keep your home & kitchen items safe during transit
Tracking number sent via email once dispatched

Returns & Refund

Returns accepted within 30 days of delivery.

Damaged or Defective Item

Free return shipping + replacement or full refund

Wrong Item Received

Free return shipping + replacement or full refund

Change of Mind

Return shipping at customer's expense · Item must be unused, unwashed & in original packaging

All returns require a Return Authorization (RA) number before sending.

To initiate a return, contact us:

support@homenkitchenshop.com +1 832-730-5801

Safety & Compliance

Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

www.P65Warnings.ca.gov

Always follow manufacturer instructions for use, cleaning, and maximum temperature ratings. Do not use cookware or utensils that are cracked, chipped, or damaged.

Keep sharp kitchen tools out of reach of children. Use heat-resistant gloves when handling hot items.

Colors and finishes may vary slightly from product images due to screen settings and natural material differences. Follow care instructions to maintain product quality and longevity.

Not all products are suitable for outdoor use unless explicitly stated.

Secure payment

Guarantee safe checkout

PowMr 12V 24V 36V 48V MPPT Solar Charge Controller PV160V 60A Auto Support up to 12 parallel connections for Solar Home System - 60A / 12V 24V 36V 48V Auto / United States

Color

Rated Voltage

Ships From

$106.37

Description

SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Battery Voltage Range: 9 To 60V

Brand Name: PowMr

Certification: CE,FCC,RoHS

Charging Current Range: 2 To 60A

Conversion Efficiency: 98. 1% To99%

Dimensions: 221x163x77mm

Feature: MPPT Solar Charge Controller

Feature 1: 3 Stages Charging

Feature 2: High-Efficiency Charging

Feature 3: Multiple Electronic Protections

Feature 4: Up to 12 Units in Parallel

High-concerned chemical: none

IP Class: IP32

Is Smart Device: no

Max Power: 2800W

Max Voltage Range: 160V

Maximum Current: 60A

Model Number: POW-M60-ULTRA

Net Weight: 1442g

Nominal System Voltage: 12V/24/36V/48V

Origin: Mainland China

is_customized: Yes

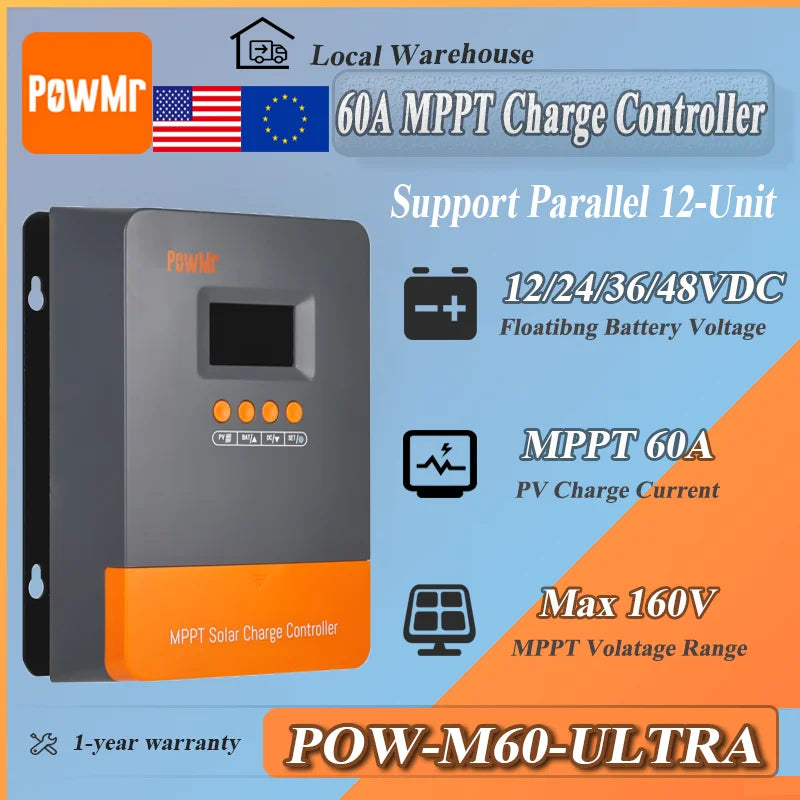

PowMr 60A MPPT Solar Charge Controller PV160V Auto 12V 24V 36V 48V Support up to 12 parallel connections for Solar Home System

Introduce:

Prices in EU countries include tax.

Model	POW-M60-ULTRA

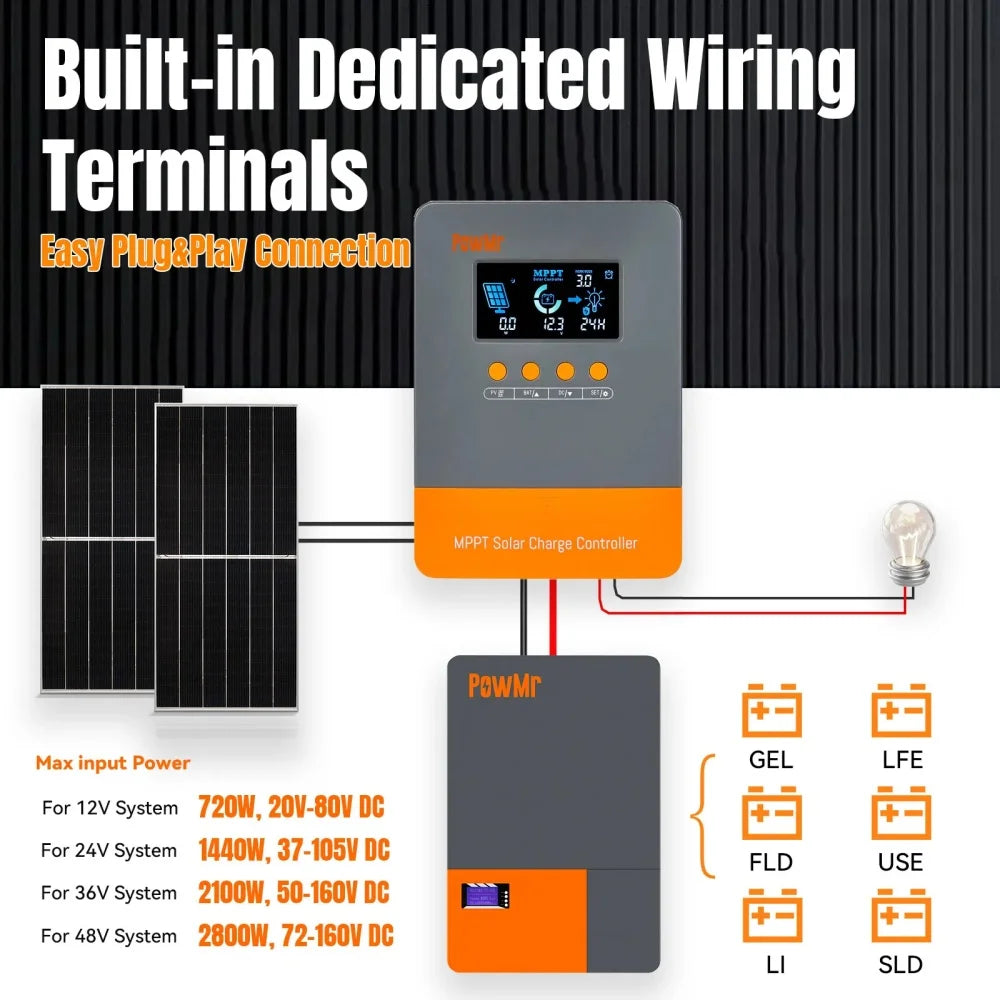

Solar Input Parameters
Max. Input Power:
For 12V System	720W
For 24V System	1440W
For 36V System	2100W
For 48V System	2800W
Input Voltage Range:
For 12V System	20V~80V
For 24V System	37V~105V
For 36V System	50V~160V
For 48V System	72V~160V
Battery Charging Parameters
Charging Technology	MPPT
Charging Algorithm	3 Stages
Nominal System Voltage	12V/24/36V/48V
Battery Voltage Range	9~60V
Rated Charging Current	60A
Conversion Efficiency	≥ 98. 1%
Max. Power Point Tracking Efficiency	>99%
Self-Consumption	0.7W-1.2W
DC Output Parameters
Rated DC Output Current	25A
General Parameters
IP Class	IP32
Operating Temperature Range	-35℃ ~+45℃
Humidity Range	≤ 95% Non-condensing
Altitude	<3000m
Dimensions	221x163x77mm /8.7x6.42x3.03in
Net Weight	1442g / 3.18lb

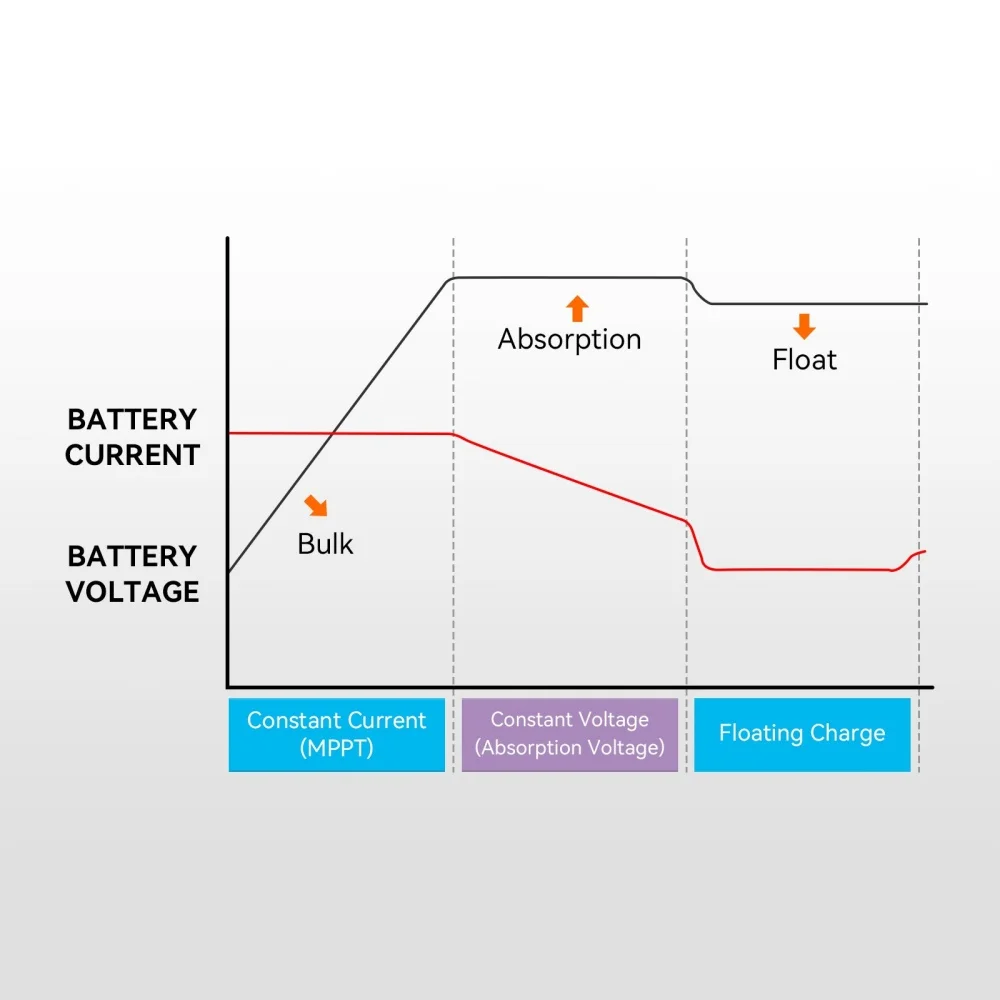

Adaptive Boost Charging

During the initial charging phase, adaptive boost charging monitors battery response and automatically determines the duration of the boost stage for each independent charging cycle, ensuring that the battery is fully charged at any discharge level or capacity while avoiding overcharging during the boost charging stage (extends battery life).

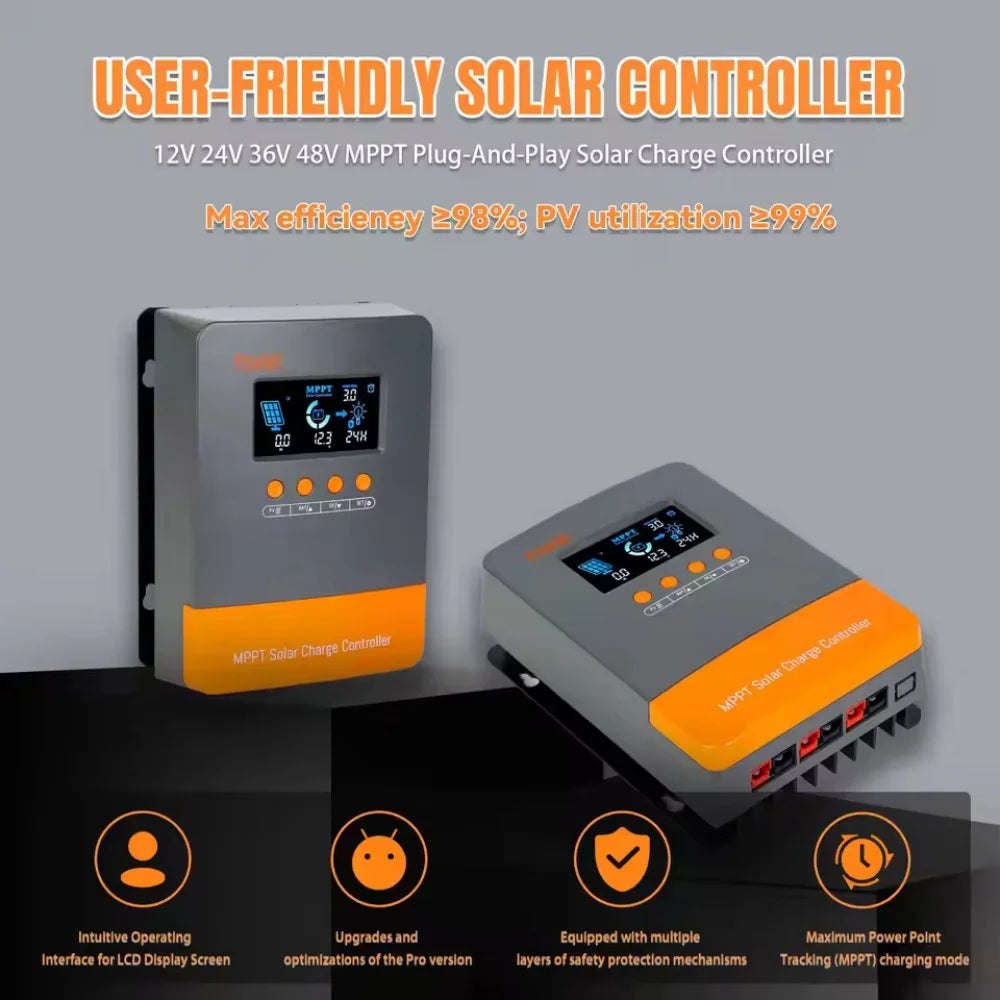

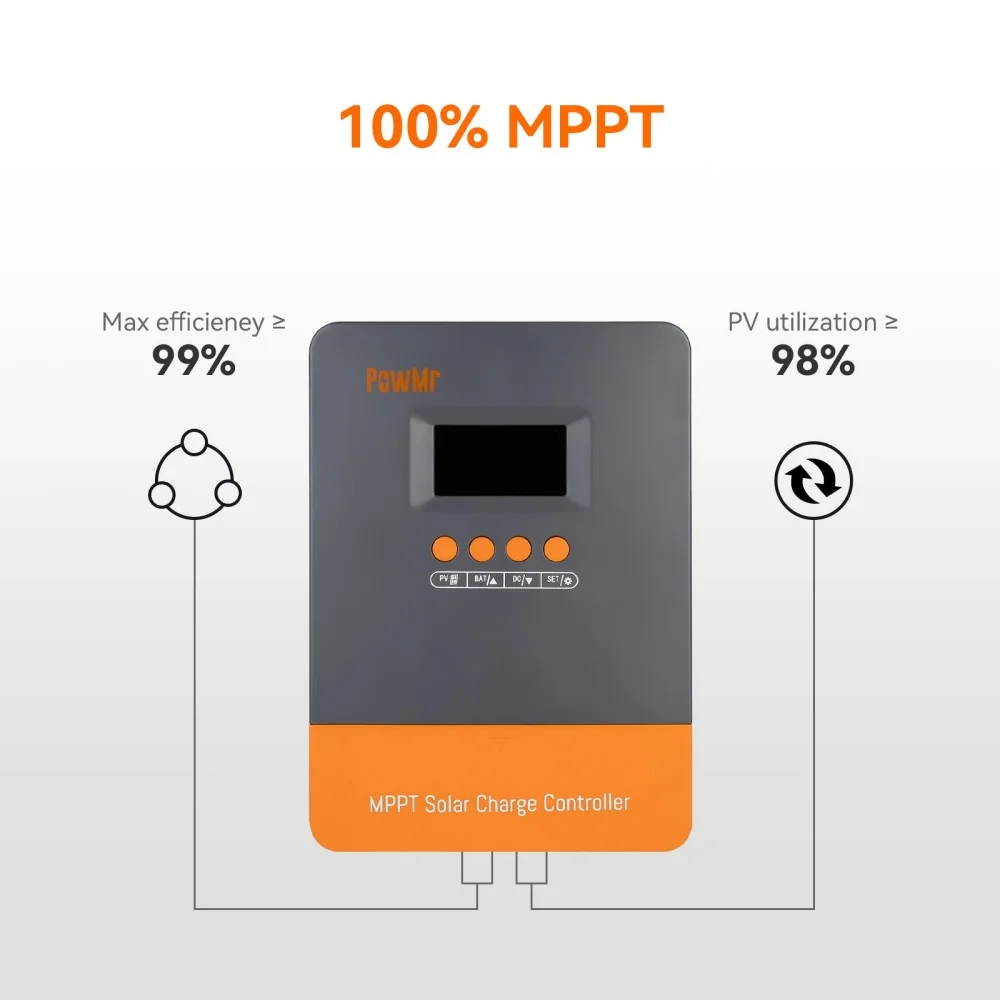

High-Efficiency Charging:

Innovative MPPT technology with a tracking efficiency of up to 99.9% and a peak conversion efficiency of up to 98.1%, reducing power consumption, minimizing heat generation, and lowering operating temperatures. MPPT technology tracks the maximum power point voltage (Vmp) of the array as it varies with weather conditions, ensuring the collection of maximum power from the array throughout the day.

Customizable Charging Current Limit:

Different types of batteries have varying requirements for charging current. Customizing the charging current limit ensures that the charge controller is compatible with multiple battery types. By setting a maximum charging current, you can prevent excessive charging rates, thereby reducing potential damage to the battery and extending its lifespan. The configurable range for the charging current is 2 to 60A.

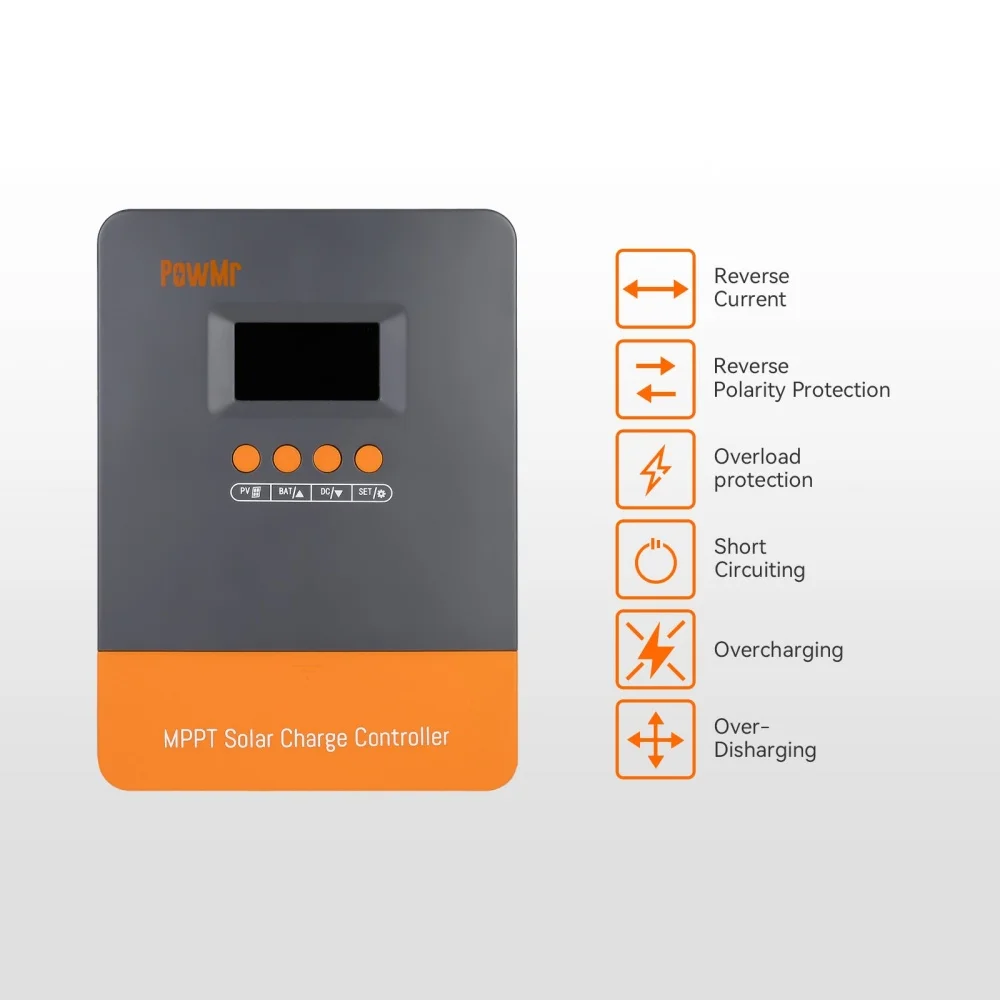

Multiple Electronic Protections:

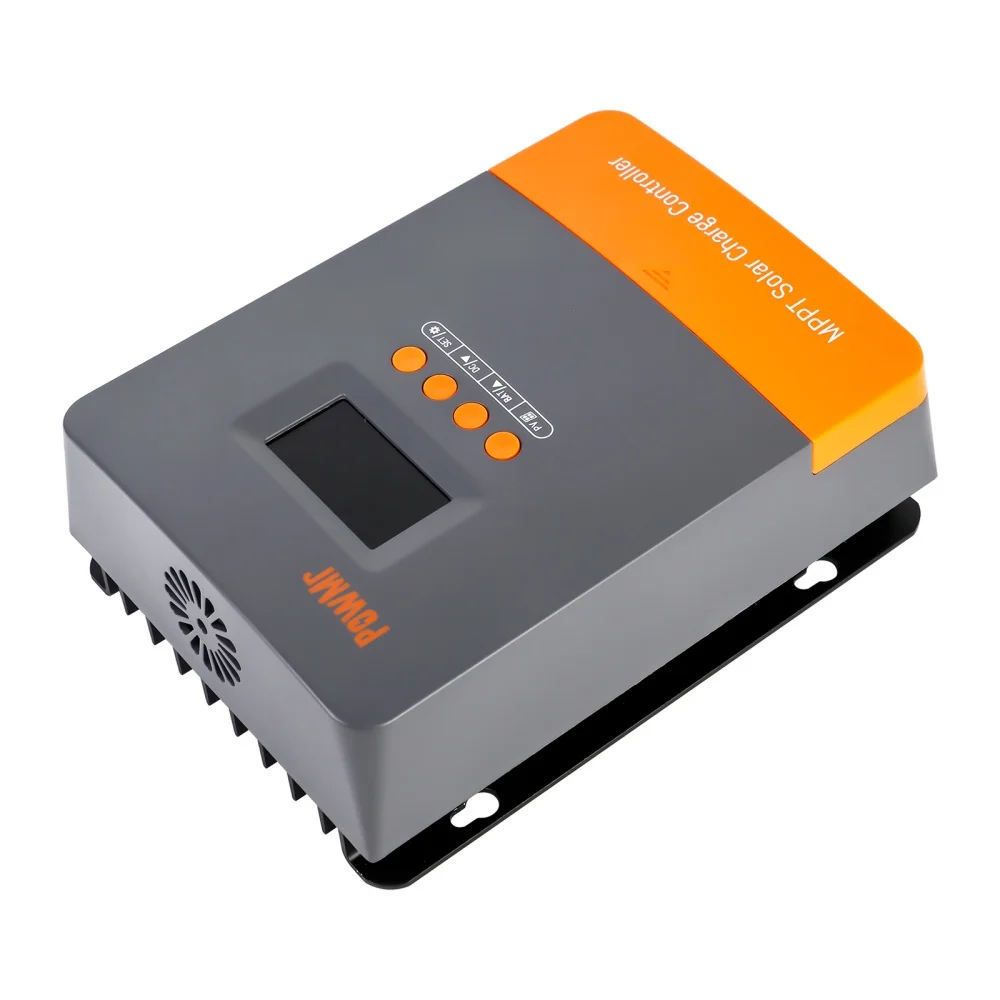

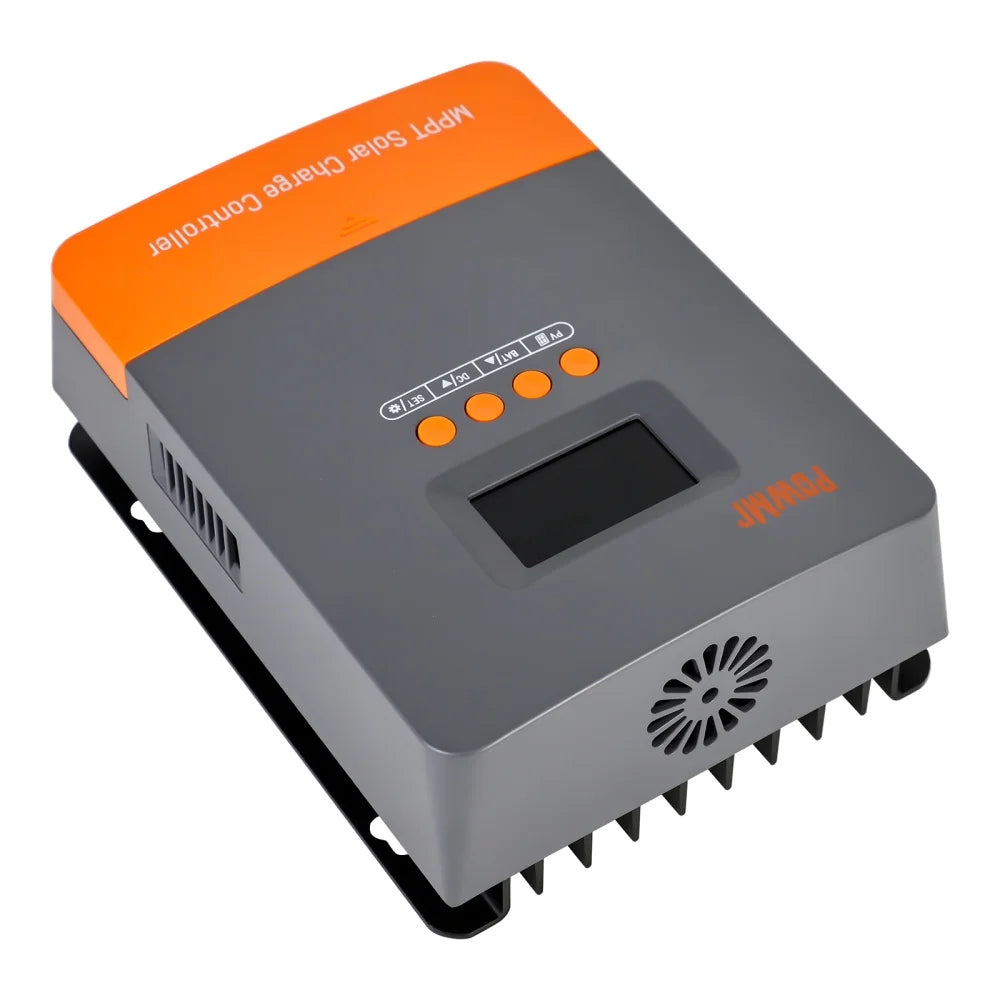

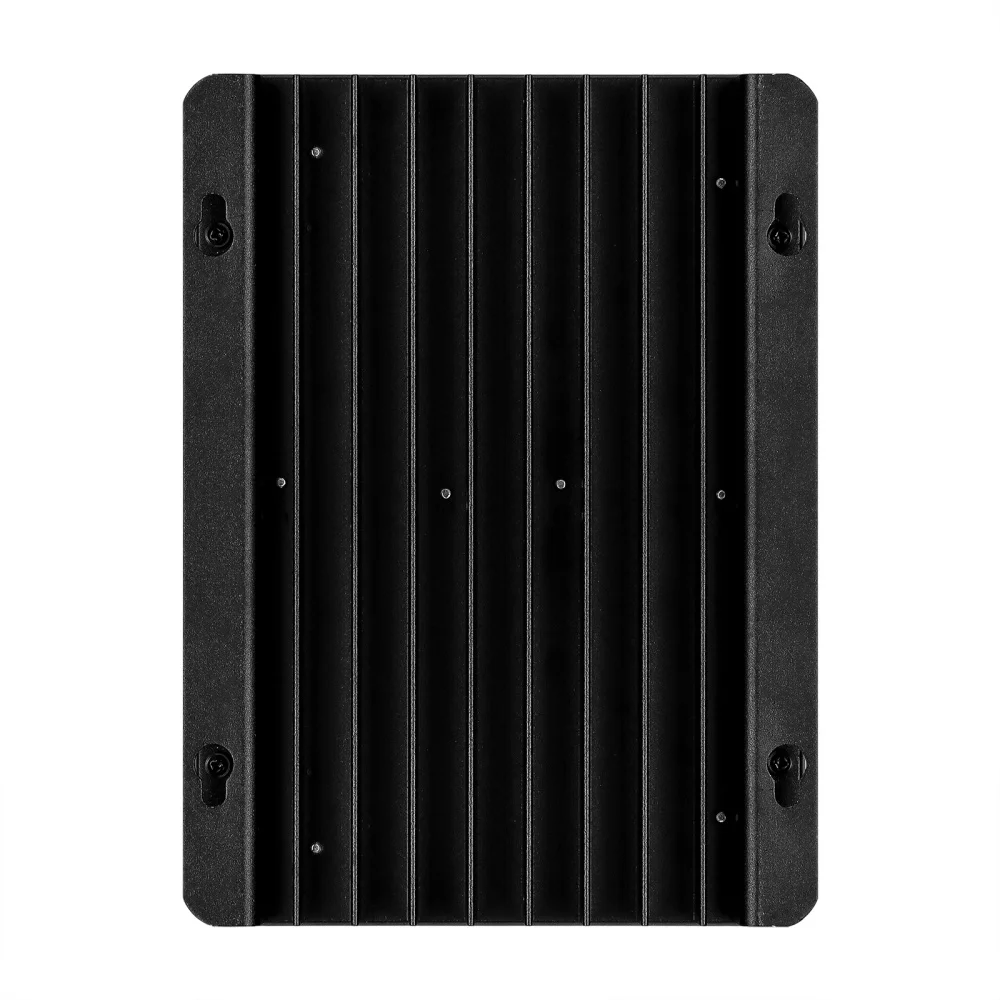

Features an internal cooling fan for forced air cooling and an external heat dissipation plate for natural heat dissipation, enhancing overall equipment efficiency. This MPPT solar charge controller offers comprehensive protection against PV short circuit, battery overvoltage, overdischarge, load overcurrent, load short circuit, and over-temperature conditions to keep your system safe at all times.

Adaptive Boost Charging:

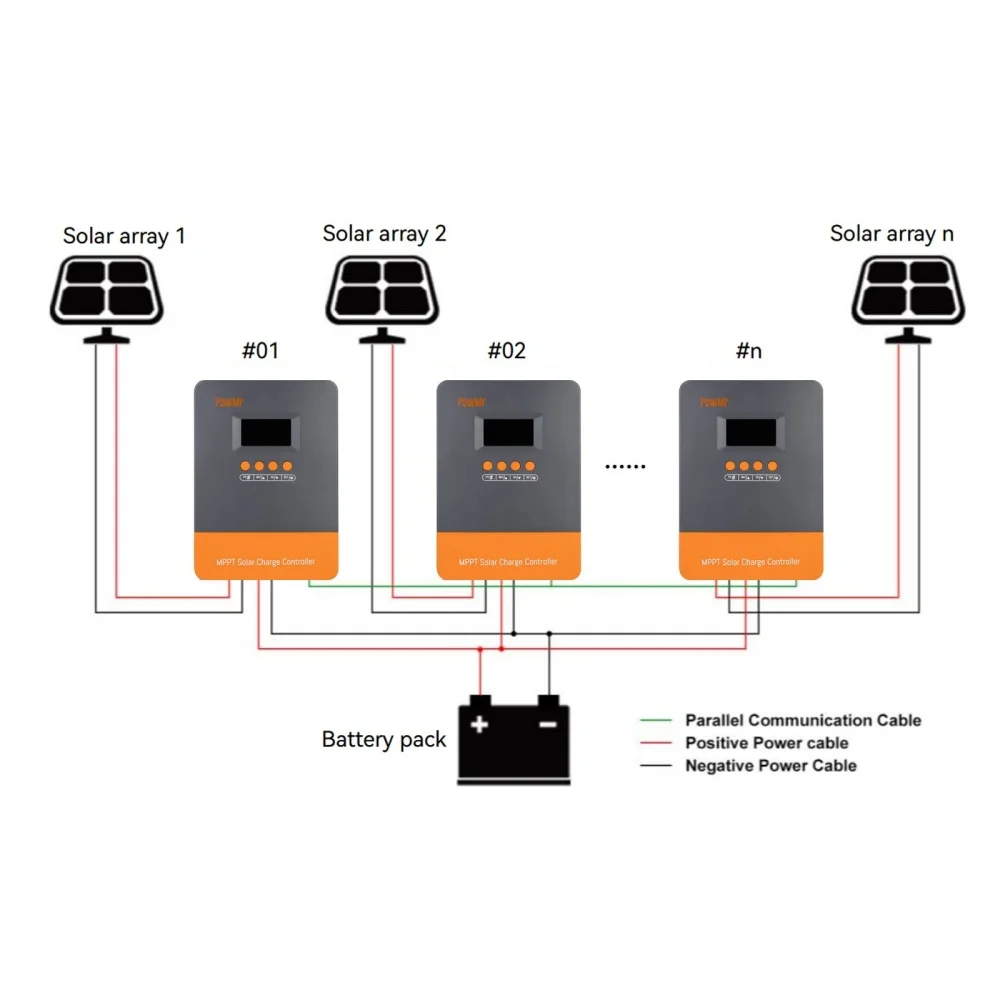

Up to 12 Units in Parallel:

The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage. Support up to 12 charging in parallel to expand the system and meet different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household systems, and field monitoring.
