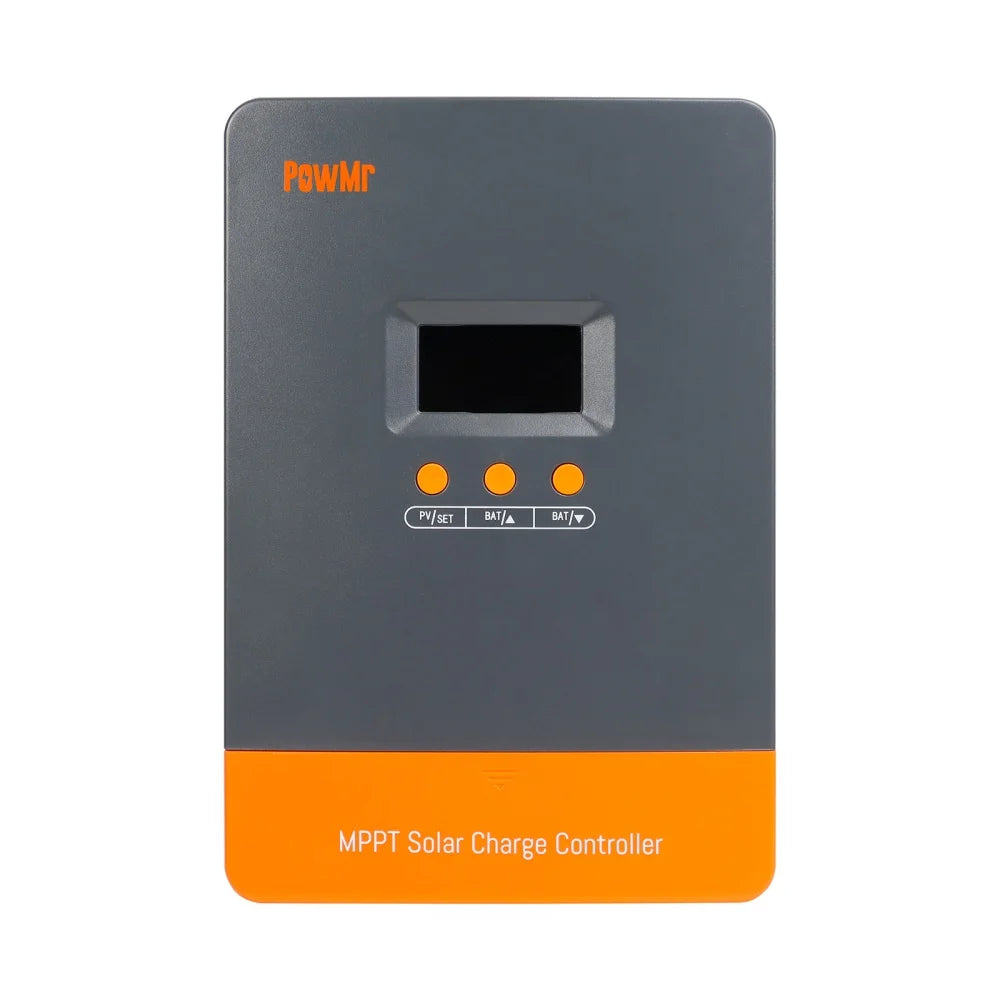

PowMr MPPT 80A/100A Charger Controller 12V 24V 36V 48V Battery Voltage Auto Up to 12 Units in Parallel for 160V Solar Panel US
Free Standard Shipping Across USA
Couldn't load pickup availability
Brand: Homenkitchenshop
Type:
Sku: 1005012206729131-MPPT 100A-PV 160V-Auto 12V 24V 36V 48V-United States
Available : Instock
Sold by HomeNKitchenShop, an authorized reseller.
Returns accepted within 30 days | support@homenkitchenshop.com
Shipping Information
- Free Standard Shipping — United States only
- Processing Time: 3–5 business days
- Estimated Delivery: 6–10 business days after dispatch
- Carefully packed to keep your home & kitchen items safe during transit
- Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · Item must be unused, unwashed & in original packaging
All returns require a Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Safety & Compliance
⚠️
California Proposition 65 Warning
Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
www.P65Warnings.ca.gov
🍳
Kitchen & Food Safety Advisory
Always follow manufacturer instructions for use, cleaning, and maximum temperature ratings. Do not use cookware or utensils that are cracked, chipped, or damaged.
Keep sharp kitchen tools out of reach of children. Use heat-resistant gloves when handling hot items.
🏠
Product Care & Usage Notice
Colors and finishes may vary slightly from product images due to screen settings and natural material differences. Follow care instructions to maintain product quality and longevity.
Not all products are suitable for outdoor use unless explicitly stated.
Secure payment
Guarantee safe checkout
PowMr MPPT 80A/100A Charger Controller 12V 24V 36V 48V Battery Voltage Auto Up to 12 Units in Parallel for 160V Solar Panel US - MPPT 100A / PV 160V / Auto 12V 24V 36V 48V|United States
$152.09
SPECIFICATIONS
Application: Thermal Controller,Charger Controller,Solar System Controller,Solar Working Station
Battery Voltage Range: 9~60V
Brand Name: PowMr
Certification: CE
Dimensions (80A): 260x180x75mm
Dimensions(100A): 315x195x80mm
Feature: MPPT Charger Controller
Feature 1: solar panel Controller
Feature 2: mppt charger control
High-concerned chemical: none
Is Smart Device: no
MPPT Efficiency: >99%
Max. Solar Array Open-Circuit Voltage: 160V
Maximum Current: MPPT 80A/100
Model Number: POW-M80-PRO/POW-M100-PRO
Nominal System Voltage: 12V/24V/36V/48V Auto
Origin: Mainland China
Protection Level: IP 32
Rated Charging Current: 80A/100A
is_customized: Yes
PowMr 80A/100A MPPT Charger Controller 12V 24V 36V 48V Battery Voltage Auto Up to 12 Units in Parallel for160V Solar Panel US
Introduction:
Models |
80A |
100A |
Solar Input Specification | ||
|
Max. Solar Array Open-Circuit
Voltage
|
160V |
|
|
Maximum Input Power:
For 12V System
For 24V System
For 36V System
For 48V System
|
960W
1920W
2880W
3840W
|
1200W
2400W
3600W
4800W
|
|
Input Voltage Range:
For 12V System
For 24V System
For 36V System
For 48V System
|
20V~80V
37V~105V
50V~160V
72V~160V
|
|
Battery Charging Specification | ||
Charging Technology |
MPPT |
|

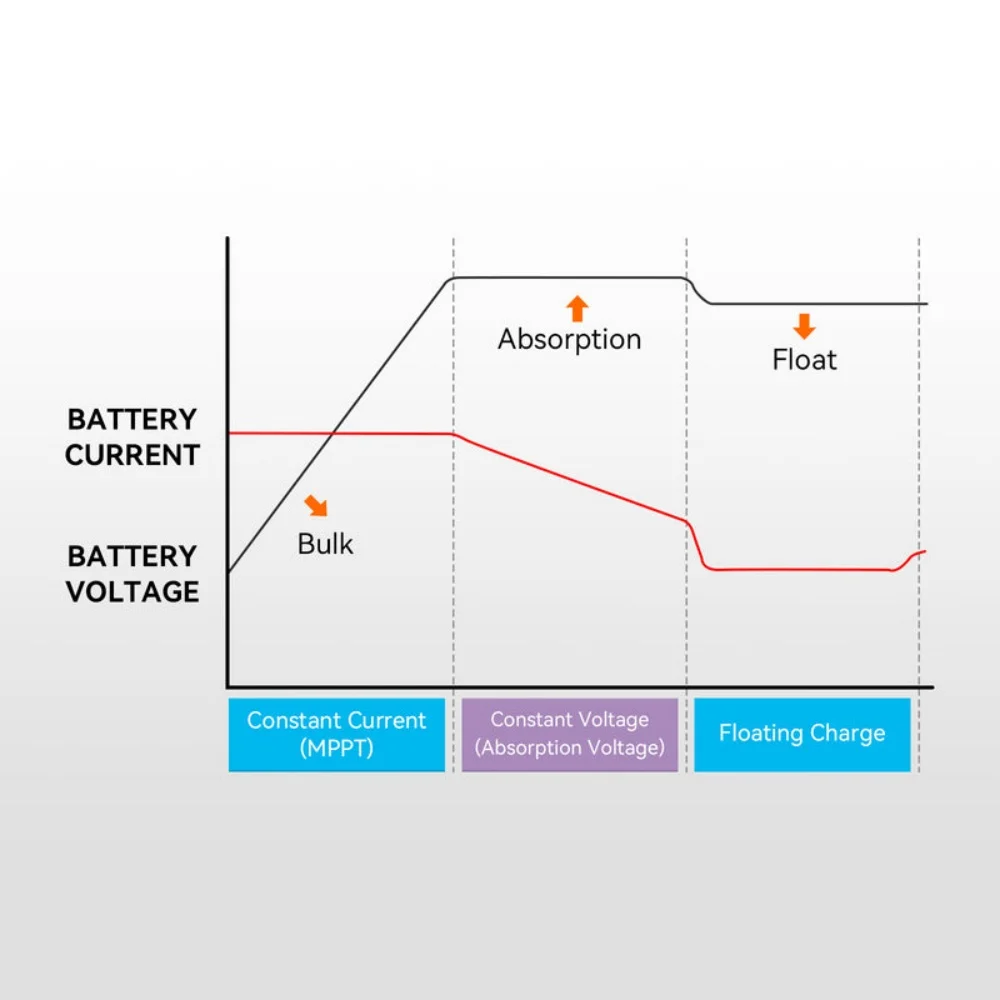

Charging Algorithm |
3 Stages |
|
Nominal System Voltage |
12V/24V/36V/48V |
|
Battery Voltage Range |
9~60V |
|
Rated Charging Current |
80A |
100A |
Maximum Efficiency |
≤98% |
|
MPPT Efficiency |
>99% |
|
Temperature Compensation |
-3mV/℃/2V（default） |
|
Self-Consumption |
44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V |
|
Environment Specification | ||
Operating Temperature Range |
-35℃~+45℃ |
|
Humidity Range |
≤95%，Non-condensing |
|
Altitude |
<3000m |
|
General Specification | ||
Protection Level |
IP32 |
|
Dimensions |
260x180x75mm |
315x195x80mm |

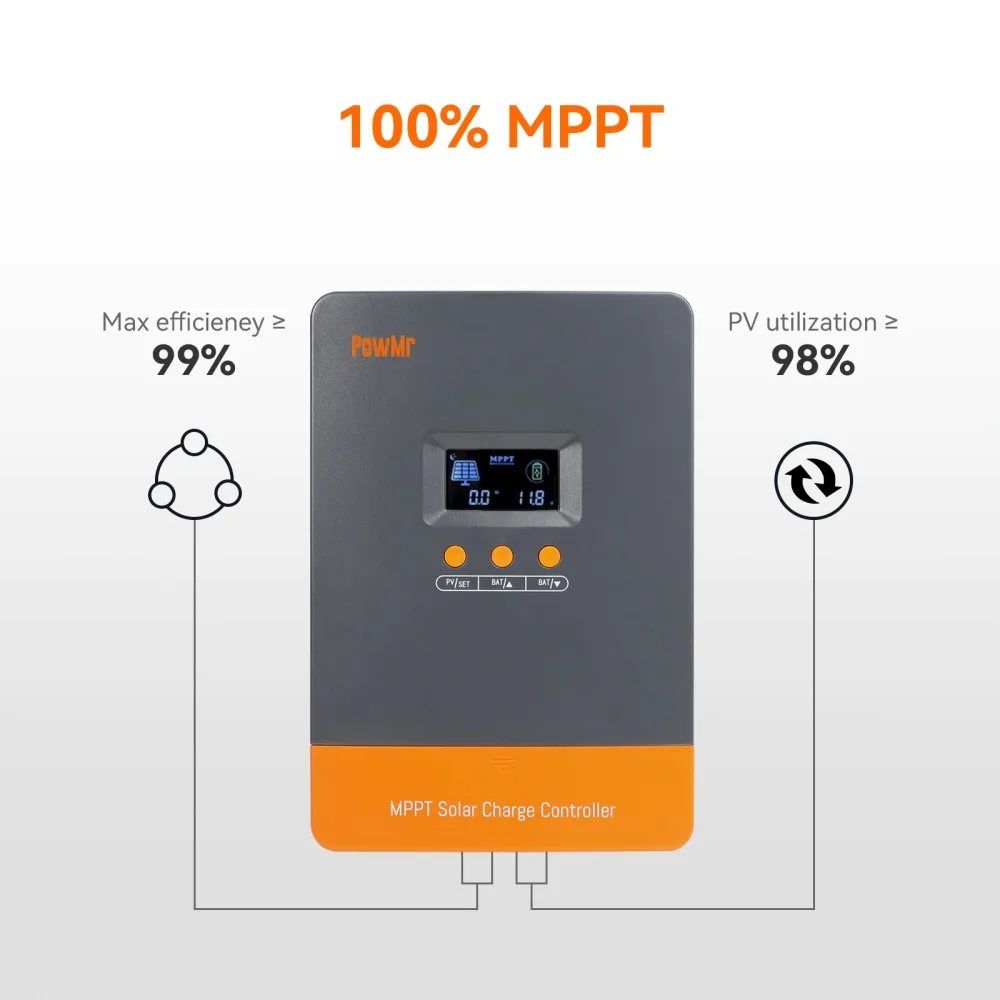

Innovative MPPT technology with a tracking efficiency of up to 99.9% and a peak conversion efficiency of up to 98%, reducing power consumption, minimizing heat generation, and lowering operating temperatures. MPPT technology tracks the maximum power point voltage (Vmp) of the array as it varies with weather conditions, ensuring the collection of maximum power from the array throughout the day.

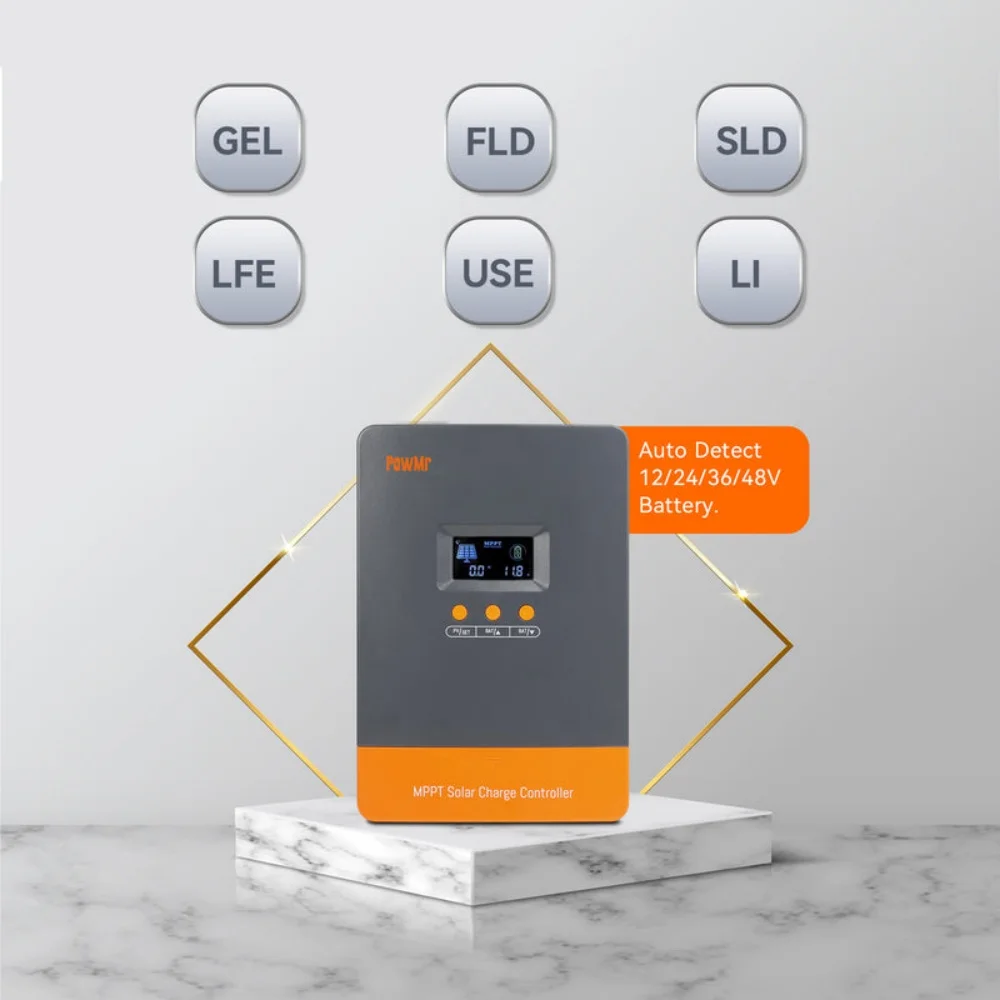

The built-in DSP controller, coupled with high-performance capabilities, automatically detects 12V, 24V, 36V, and 48V solar battery voltages. It offers compatibility with a wide range of Deep Cycle battery options, including Lithium, LiFePO4, Li(NiCoMn)O2, Flooded, Sealed, Gel, and User-Defined batteries.

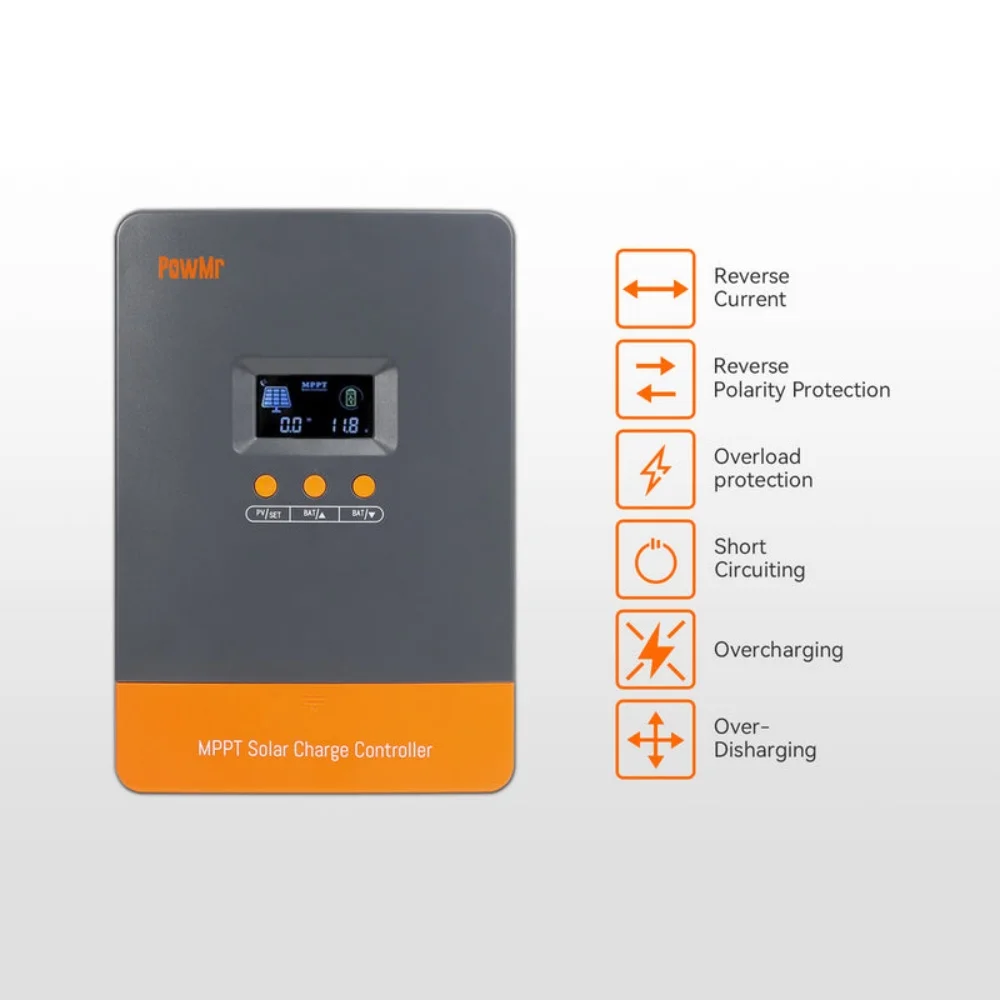

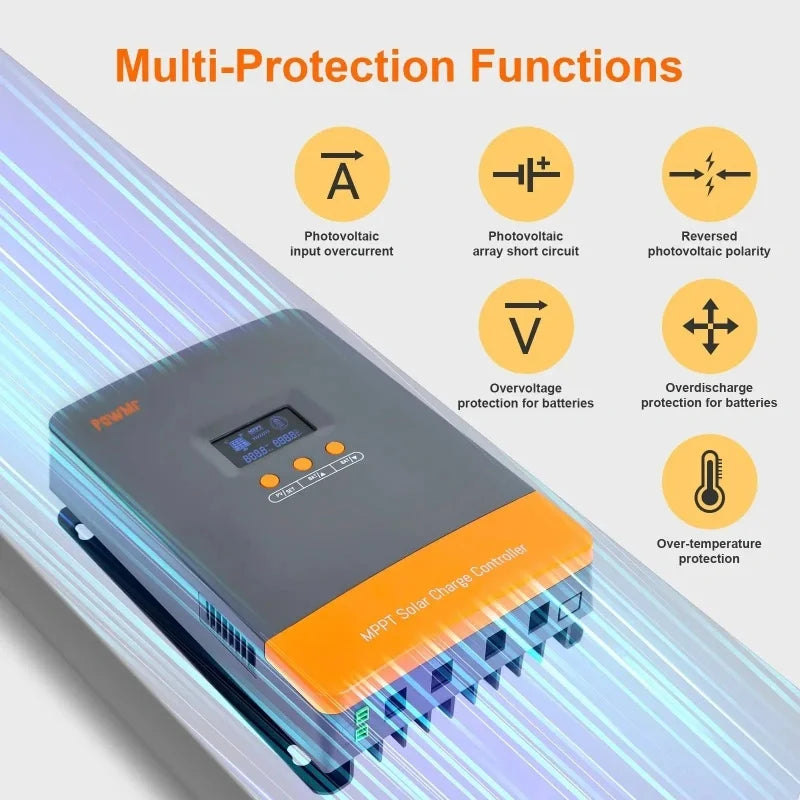

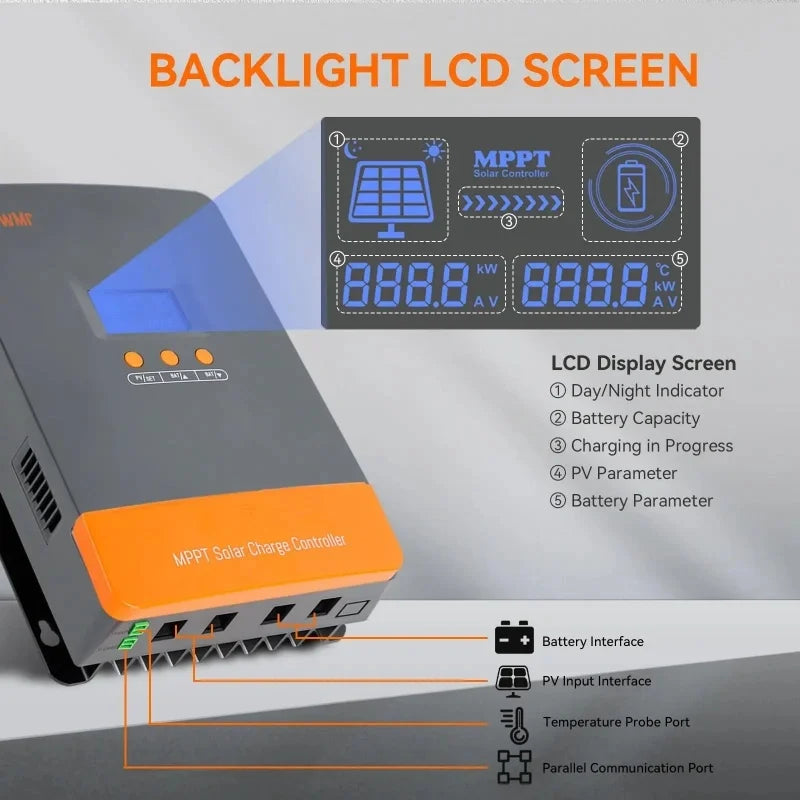

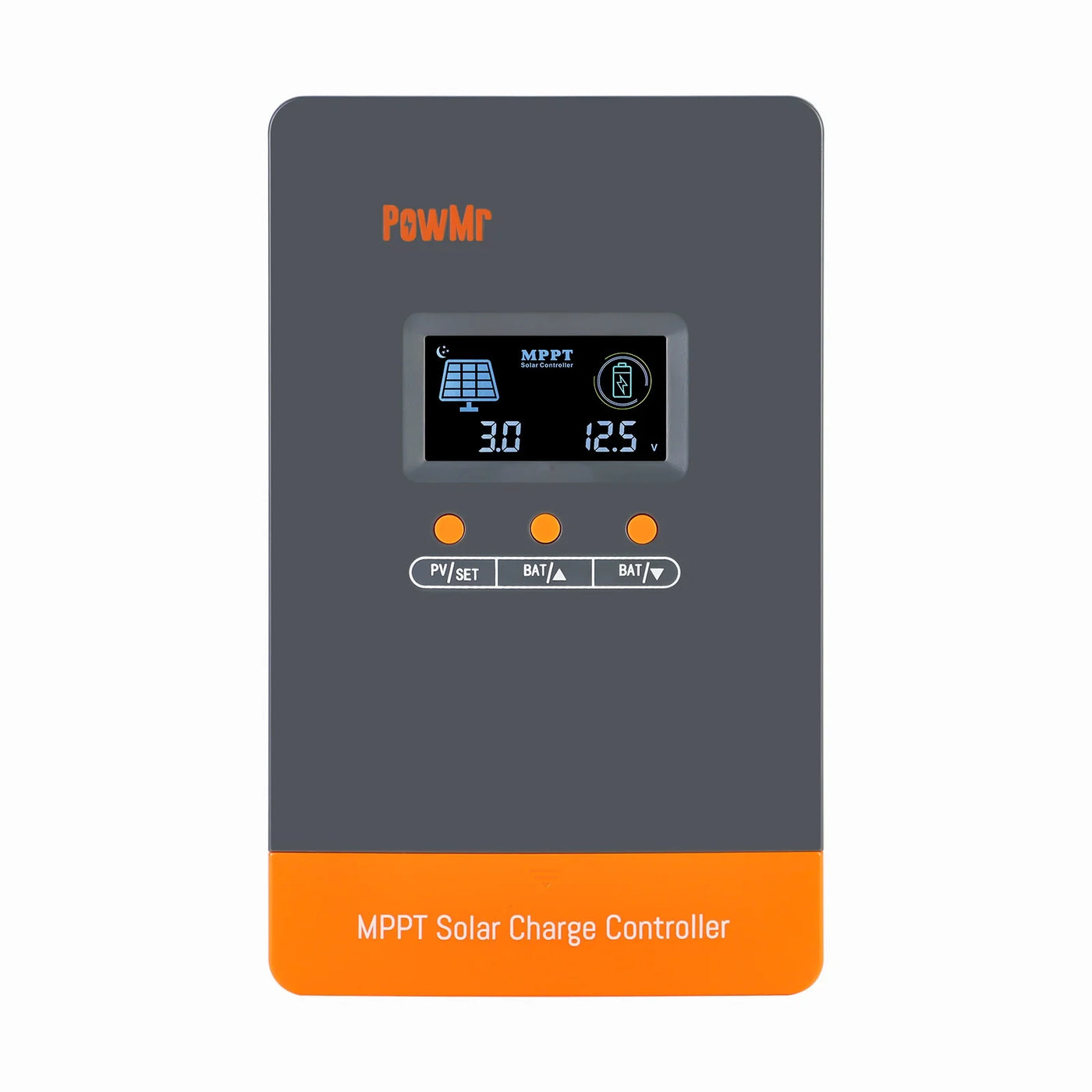

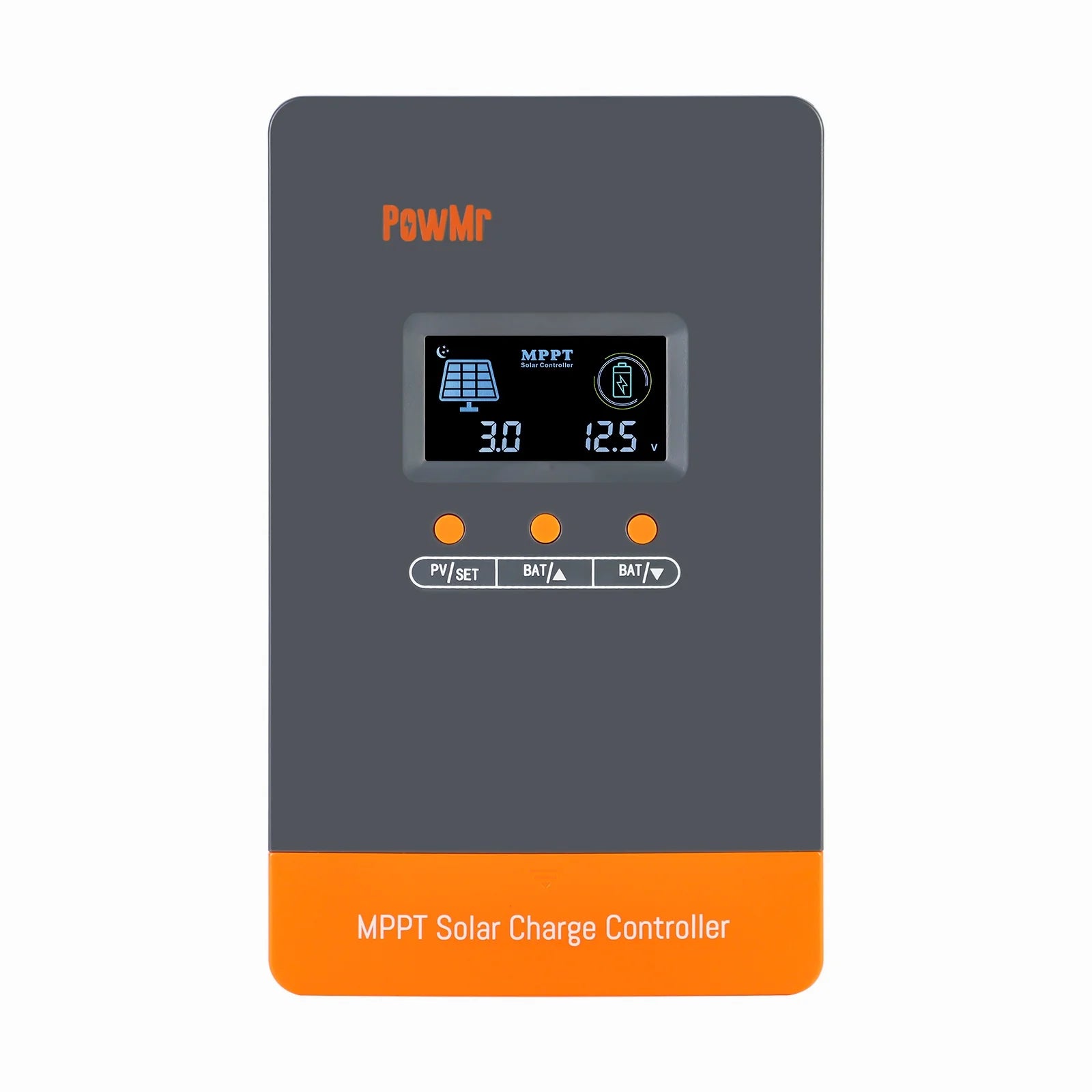

This MPPT solar charge controller offers comprehensive protection against PV short circuit, battery overvoltage, overdischarge, load overcurrent, load short circuit, and over-temperature conditions to keep your system safe at all times. The intuitive LCD screen allows effortless adjustment of charging mode parameters to meet your requirements.
During the initial charging phase, adaptive boost charging monitors battery response and automatically determines the duration of the boost stage for each independent charging cycle, ensuring that the battery is fully charged at any discharge level or capacity while avoiding overcharging during the boost charging stage (extends battery life).

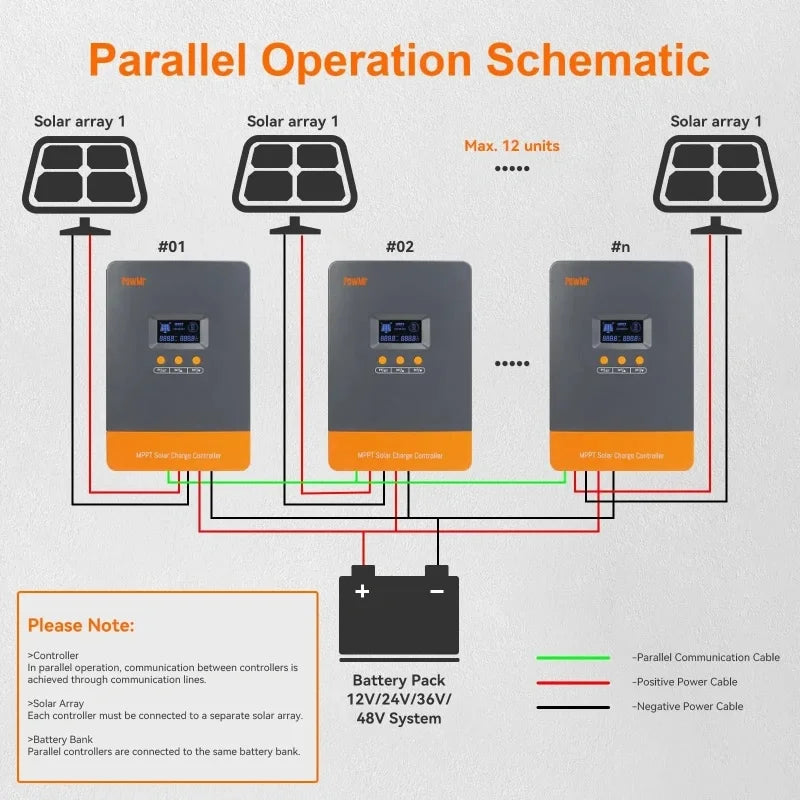

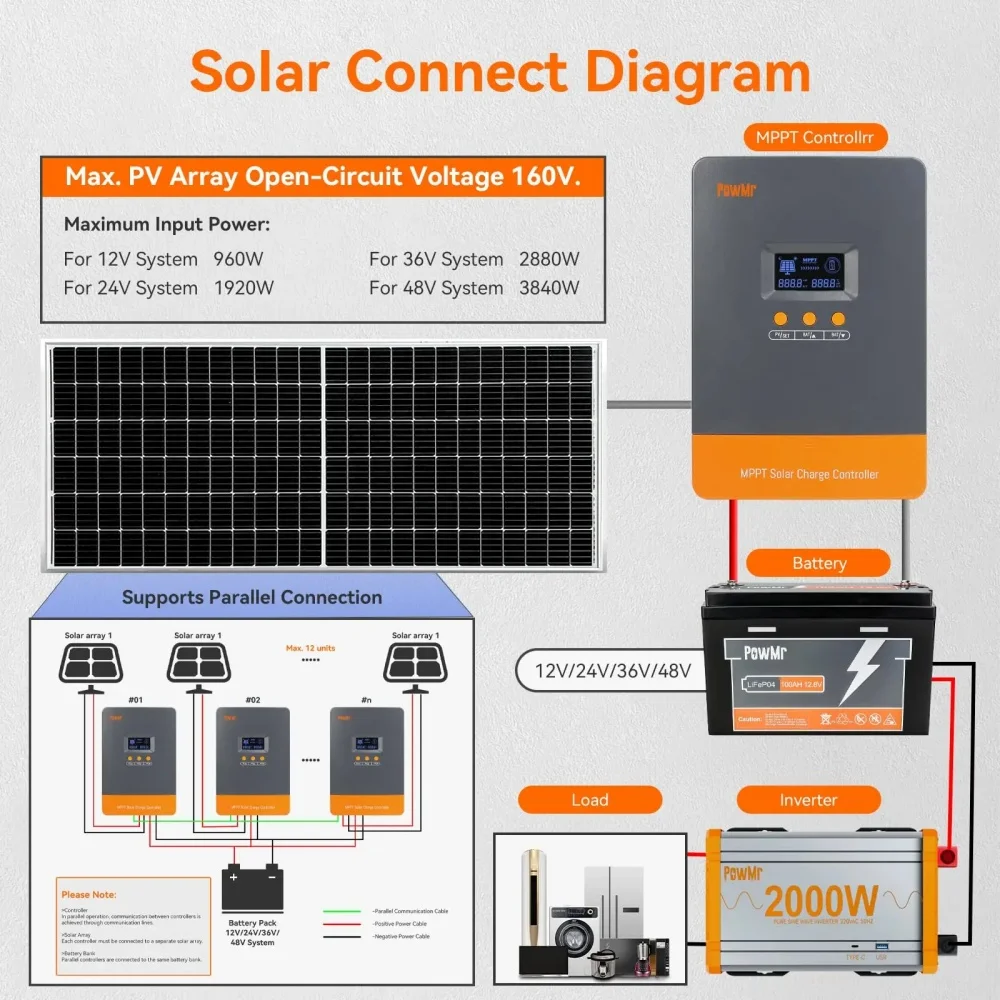

The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage. Support up to 12 charging in parallel to expand the system and meet different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household systems, and field monitoring.
