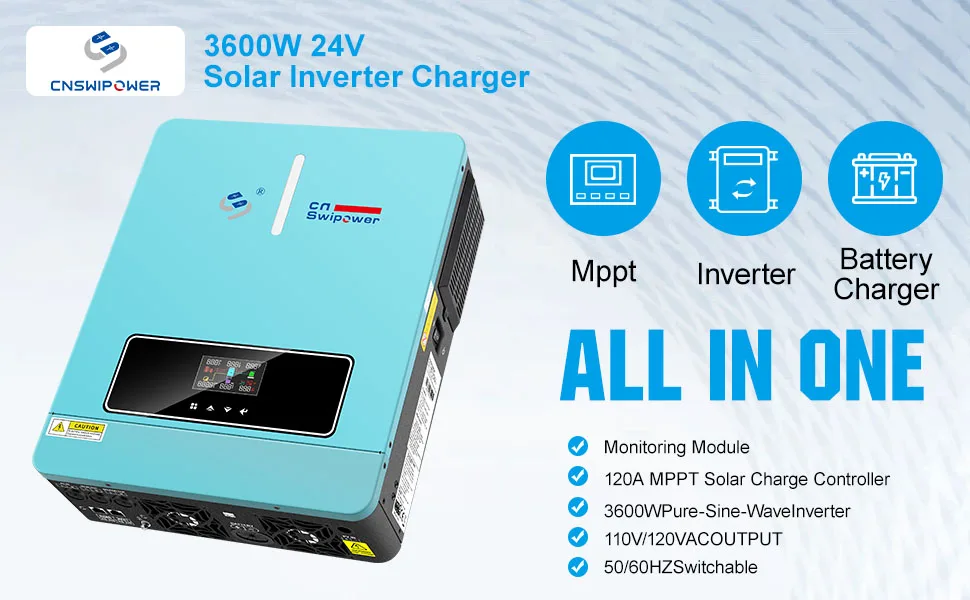

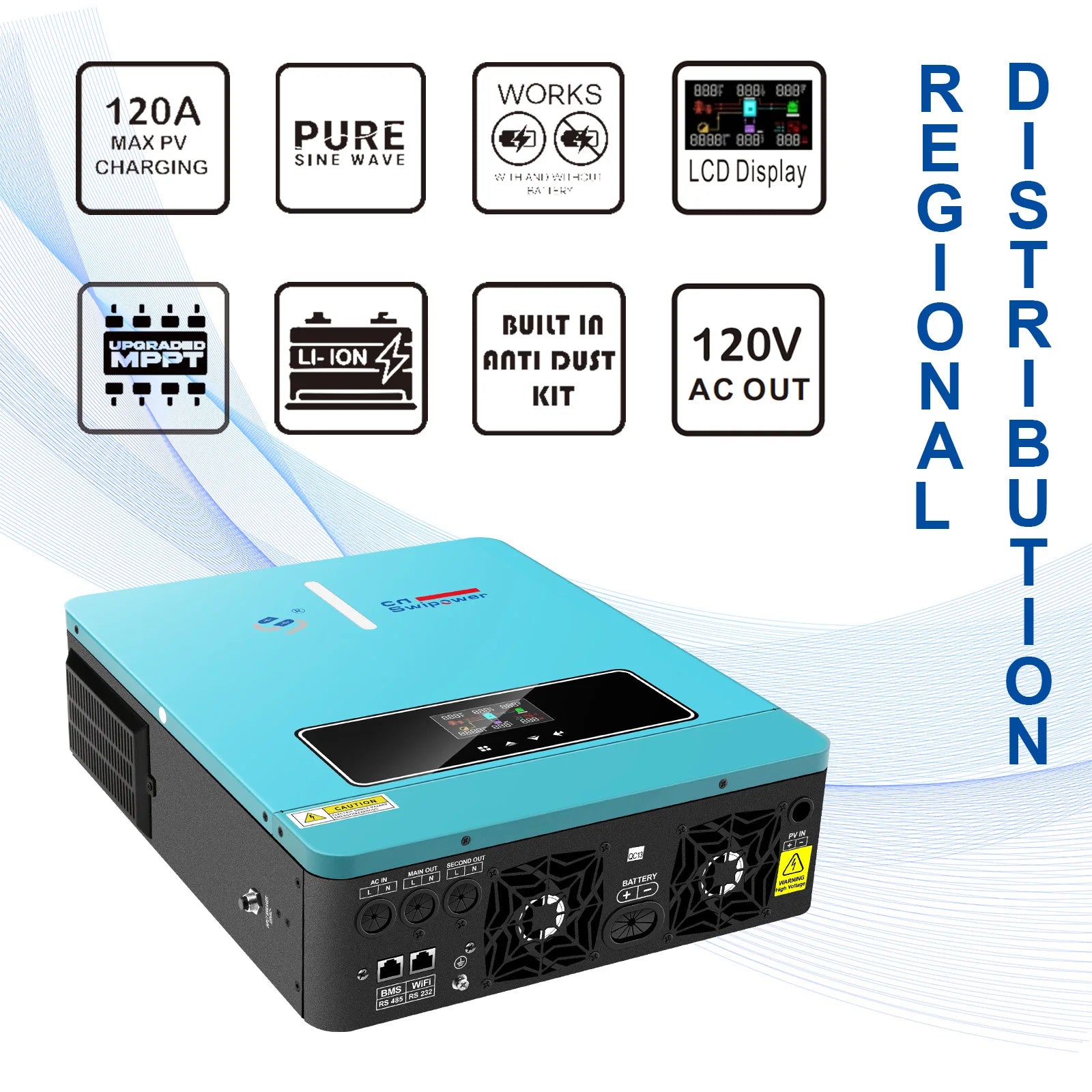

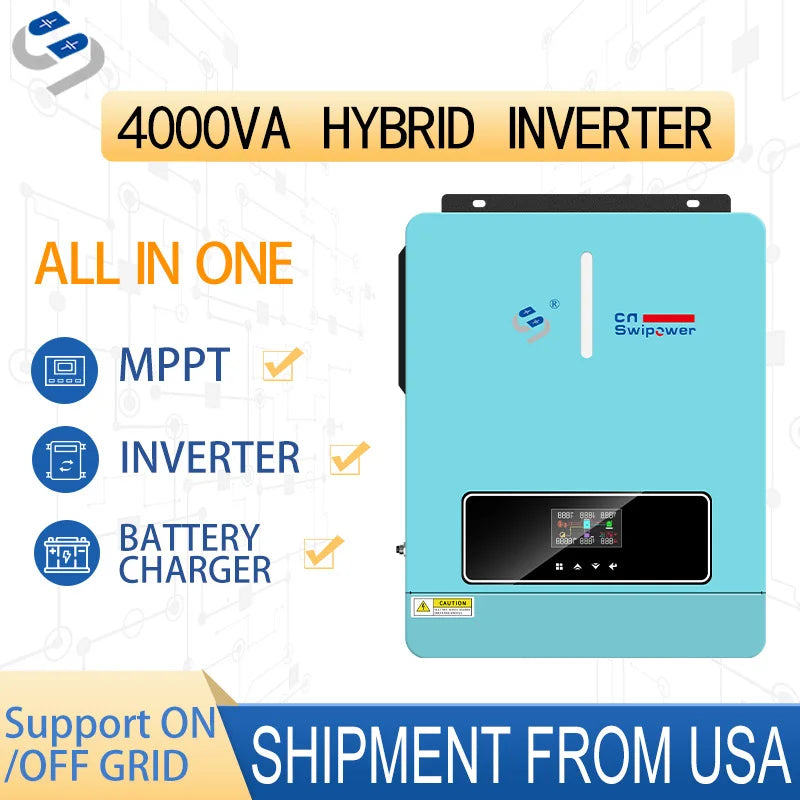

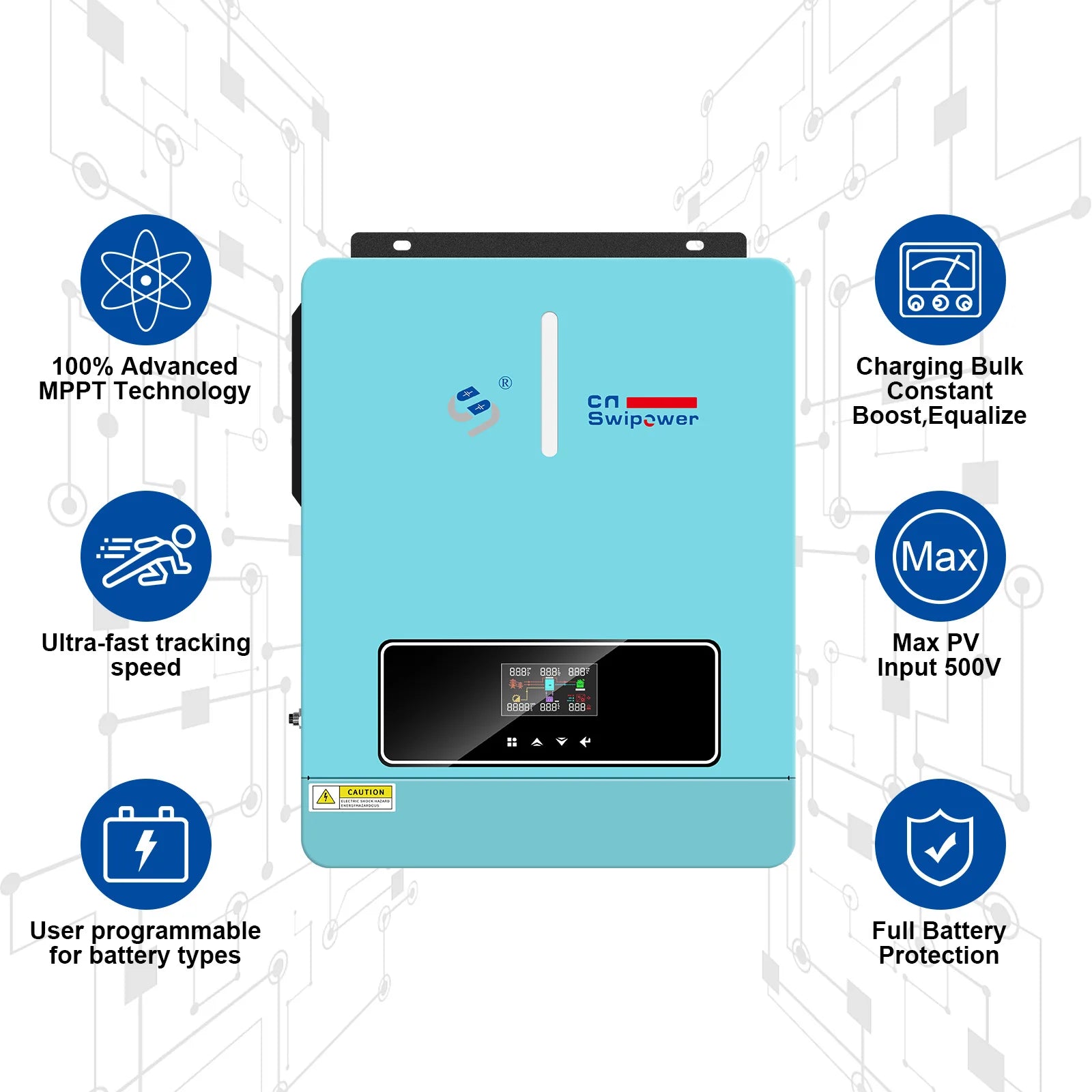

SWIPOWER 4000VA 3600W Hybrid Solar Inverter 120A MPPT Charger 24VDC to 120VAC PV(60~450VDC) - 120V / United States / 24V
$303.59
We will send you an email to reset your password.
Couldn't load pickup availability
Brand: Homenkitchenshop
Type:
Sku: 1005010326139574-120V-United States-24V
Available : Instock
Sold by HomeNKitchenShop, an authorized reseller.
Returns accepted within 30 days | support@homenkitchenshop.com
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · Item must be unused, unwashed & in original packaging
California Proposition 65 Warning
Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
www.P65Warnings.ca.govKitchen & Food Safety Advisory
Always follow manufacturer instructions for use, cleaning, and maximum temperature ratings. Do not use cookware or utensils that are cracked, chipped, or damaged.
Keep sharp kitchen tools out of reach of children. Use heat-resistant gloves when handling hot items.
Product Care & Usage Notice
Colors and finishes may vary slightly from product images due to screen settings and natural material differences. Follow care instructions to maintain product quality and longevity.
Not all products are suitable for outdoor use unless explicitly stated.
Battery Input Voltage: 24V
Brand Name: NONE
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Is Smart Device: Yes
Model Number: SRC-4000VA-US
Origin: Mainland China
Output Frequency: 3600W
Output Type: SINGLE
PV INPUT Voltage: 60~450VDC

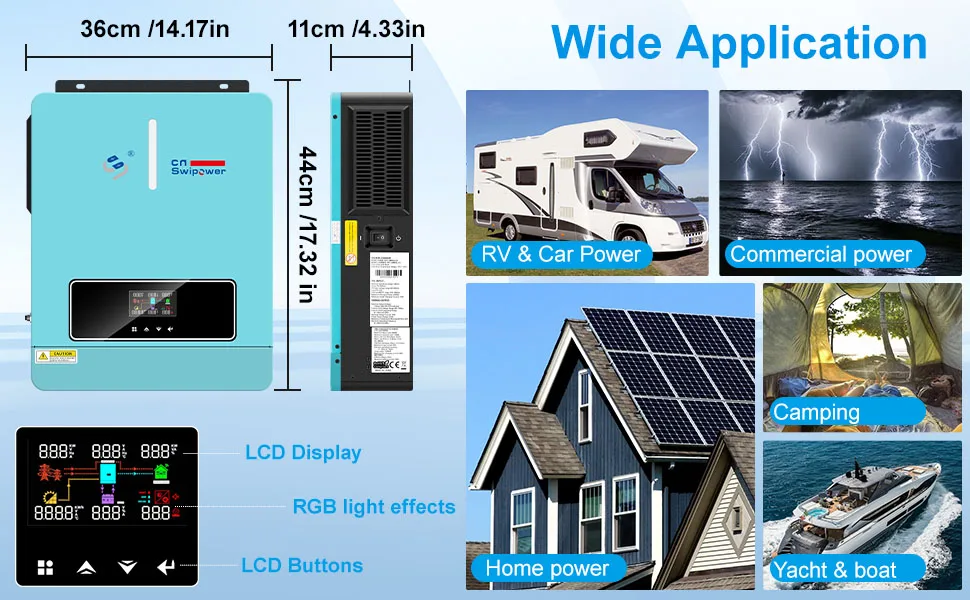

Size: 420*350*110mm
Weight: 8.8kg


MODEL |
ECO-3.6KW |
Phase |
1-phase |
Maximum PV Input Power |
4200W |
Rated Output Power |
3600W/3600VA(3000/3150/3300) |
Maximum Solar Charging Current |
120A |
GRID-TIE OPERATION | |
PV INPUT(DC) | |
Nominal DC Voltage/MaximumDC Voltage |
360/500VDC |
Start-up Voltage/Initial Feeding Voltage |
60VDC/90VDC |
MPPT Voltage Range |
60~450VDC |
Maximum Input Current |
1/18A |
GRID OUTPUT (AC) | |
Nominal Output Voltage |
120VAC(100/105/115V settable) |
Output Voltage Range |
90-150VDC |
Nominal OutputCurrent |
30A |
Power Factor |
>0.99 |
EFFICIENCY | |
Maximum Conversion Efficiency (DC/AC) |
98% |
TWO LOAD OUTPUT POWER | |
FullLoad |
3600W |
MaxiumMain Load |
3600W |
Maxium Second Load(battery mode) |
1200W |
Maxium Load Cut Off Voltage |
26VDC |
Maxium Load Return Voltage |
27VDC |
OFF-GRID OPERATION | |
AC INPUT | |
AC Start-up Voltage/Auto Restart Voltage |
110VAC/120VAC |
Acceptable Input Voltage Range |
90~145AC±2% |
Frequency Range |
49~51±1HZ |
Maximum AC Input Current |
40A |
PV INPUT(DC) | |
Nominal DC Voltage/Maximum DC Voltage |
360/500VDC |
MPPT Voltage Range |
60-450VDC |
Maximum Input Current |
1/18A |
BATTERY MODE OUTPUT(AC) | |
Nominal Output Voltage |
120VAC(100/105/115V settable) |
Output Waveform |
Pure sine wave |
Efficiency(DC to AC) |
94% |
BATTERY & CHARGER | |
Nominal DC Voltage |
24VDC |
Maximum Solar Charging Current |
120A |
Maximum AC Charging Current |
100A |
Maximum Solar+AC Charging Current |
120A |
HYBRID OPERATION | |
PV INPUT(DC) | |
Nominal DC Voltage/Maximum DC Voltage |
360/500VDC |
Start-up Voltage/Initial Feeding Voltage |
90VDC/120VDC |
MPPT Voltage Range |
60~450VDC |
Maximum Input Current |
1/18A |
GRID OUTPUT(AC) | |
Nominal Output Voltage |
120VAC(100/105/115V settable) |
Output Voltage Range |
60-450VDC |
Nominal Output Current |
30A |
AC INPUT | |
AC Start-up Voltage /Auto Restart Voltage |
120-140VAC/180VAC |
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
Maximum AC Input Current |
40A |
Maximum Charging Current |
120A |
