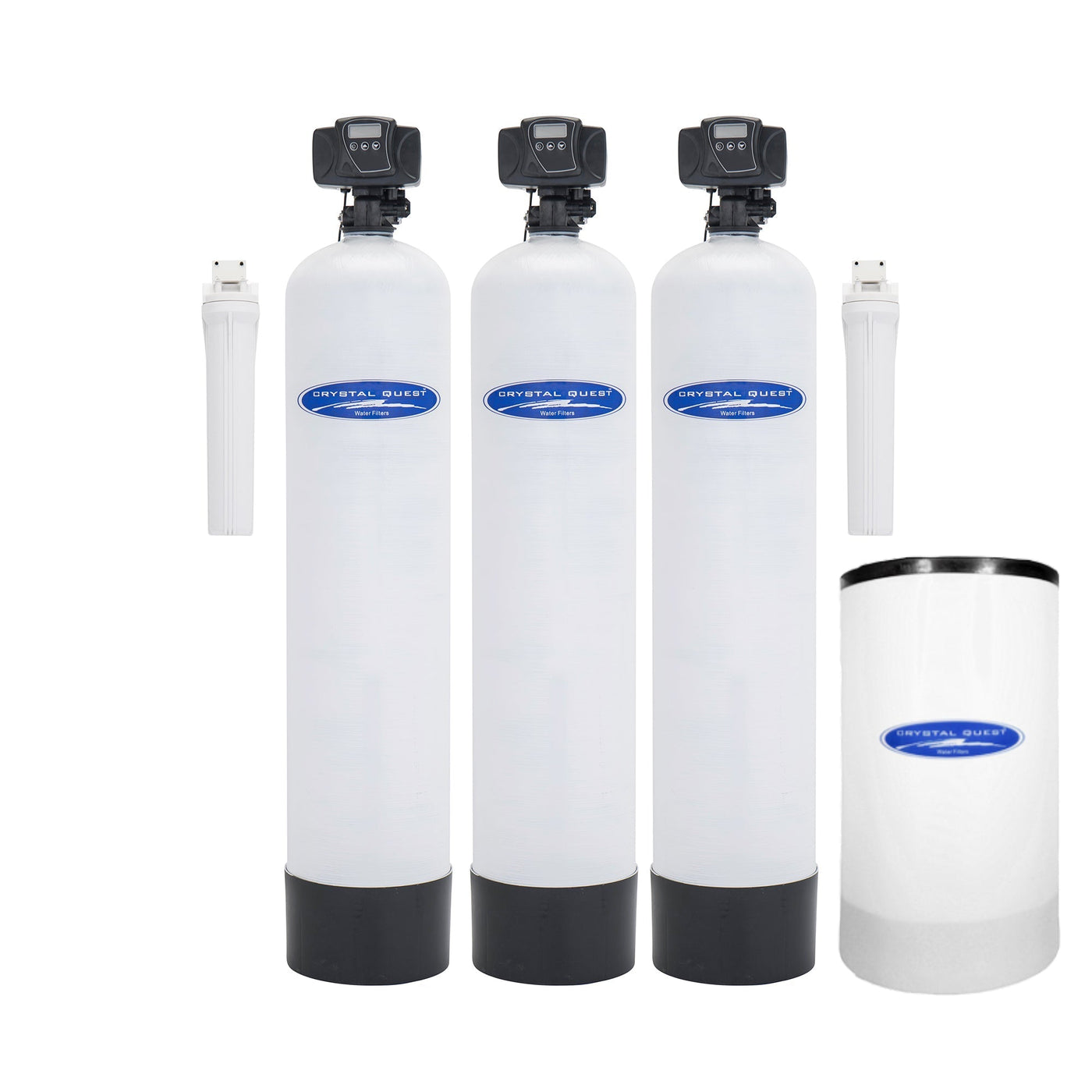

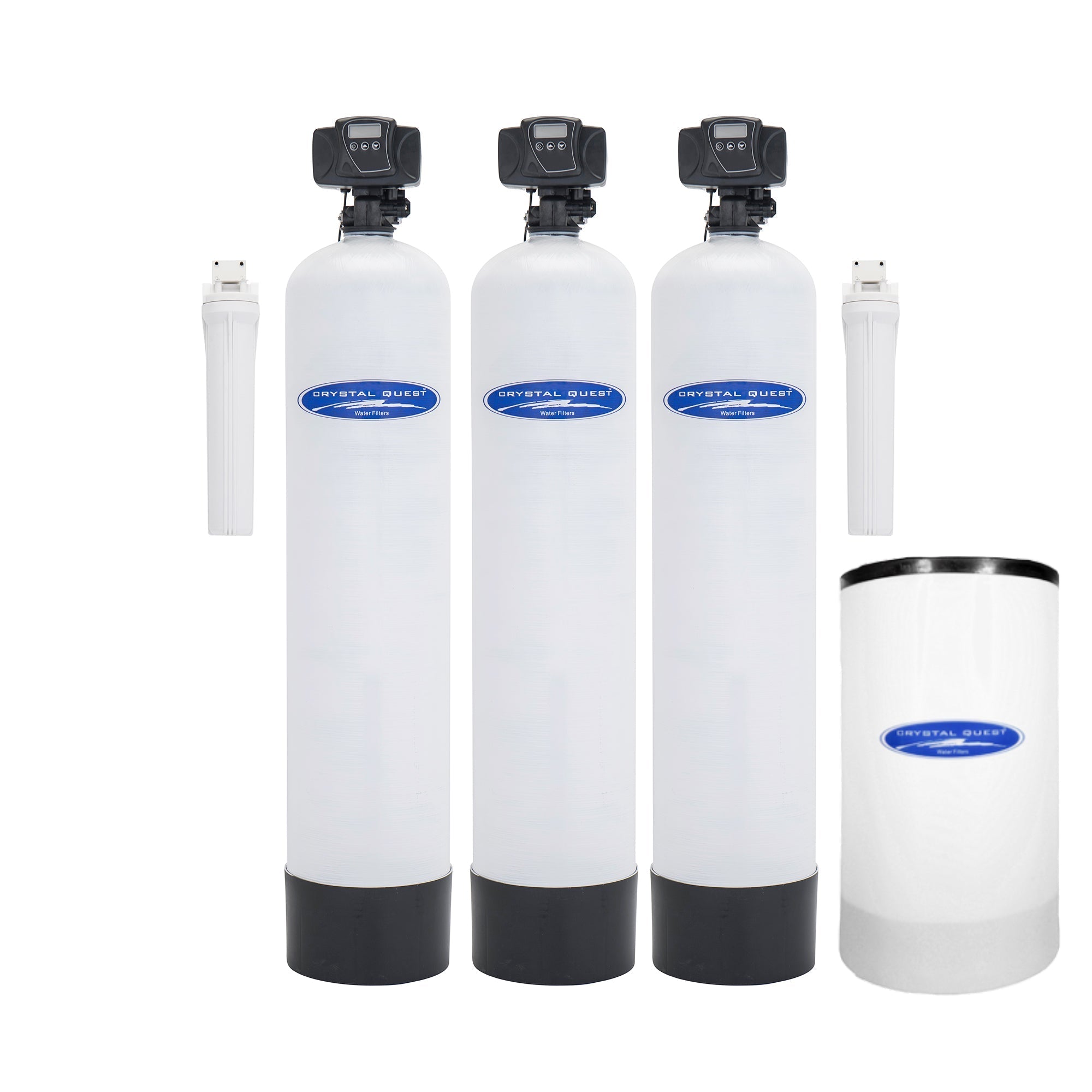

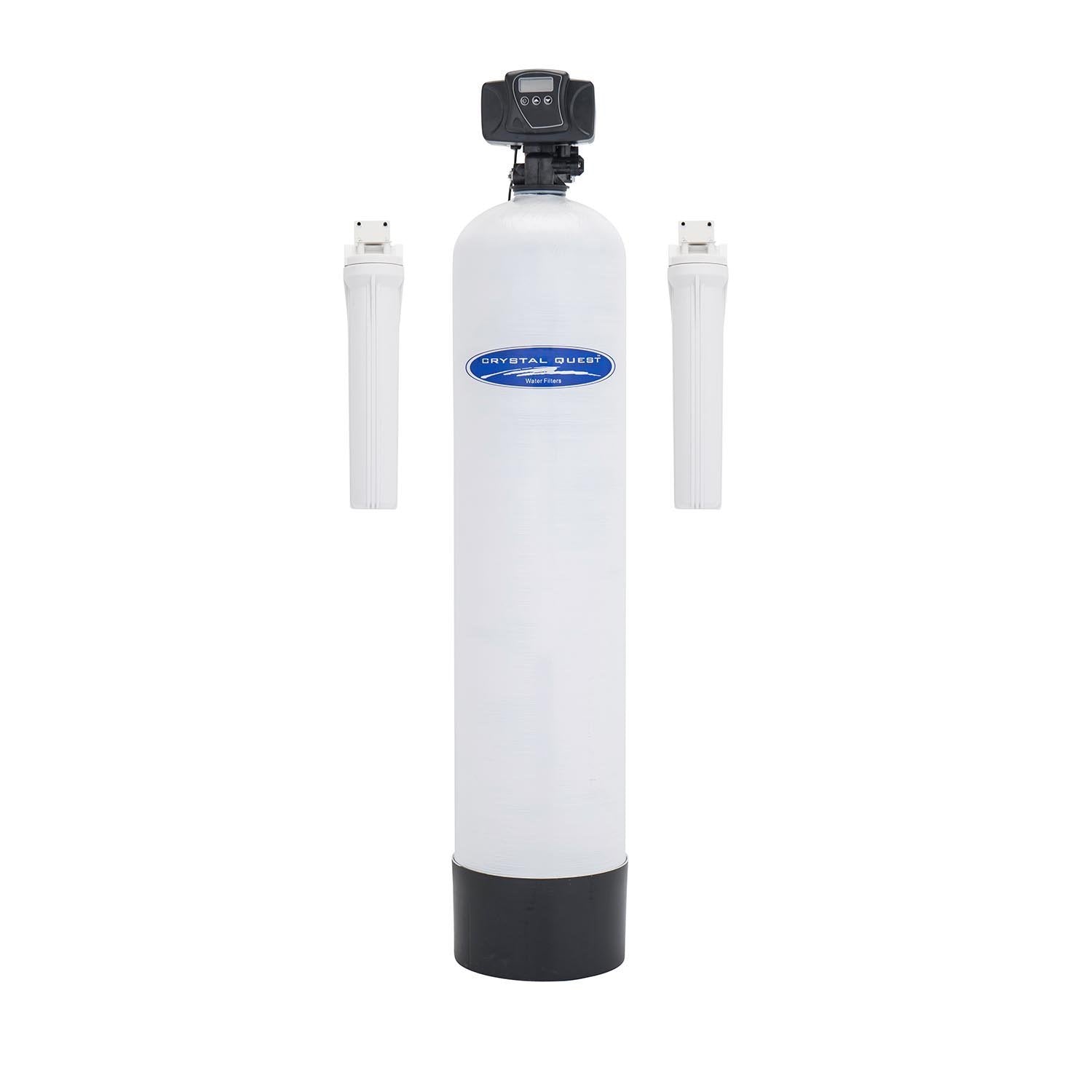

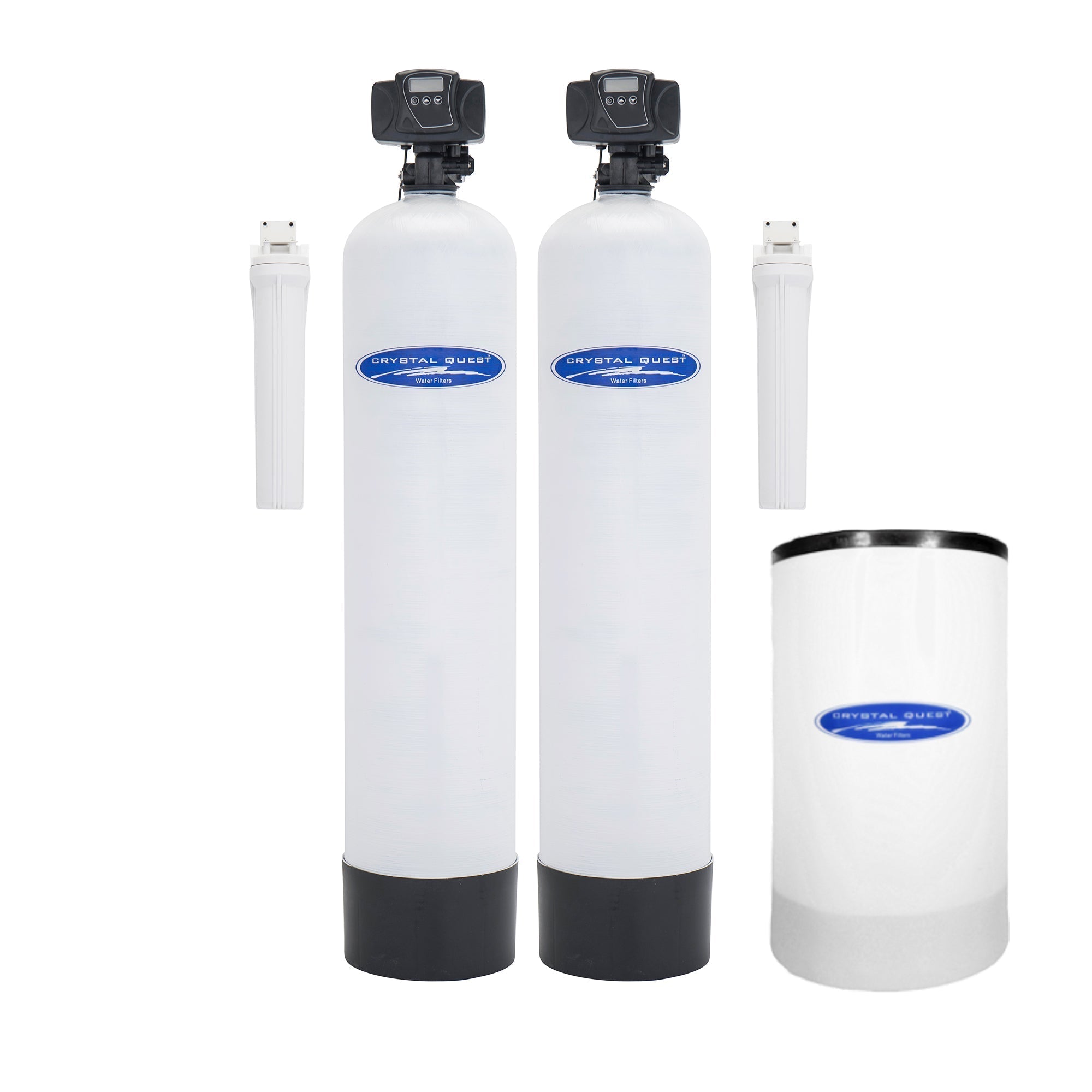

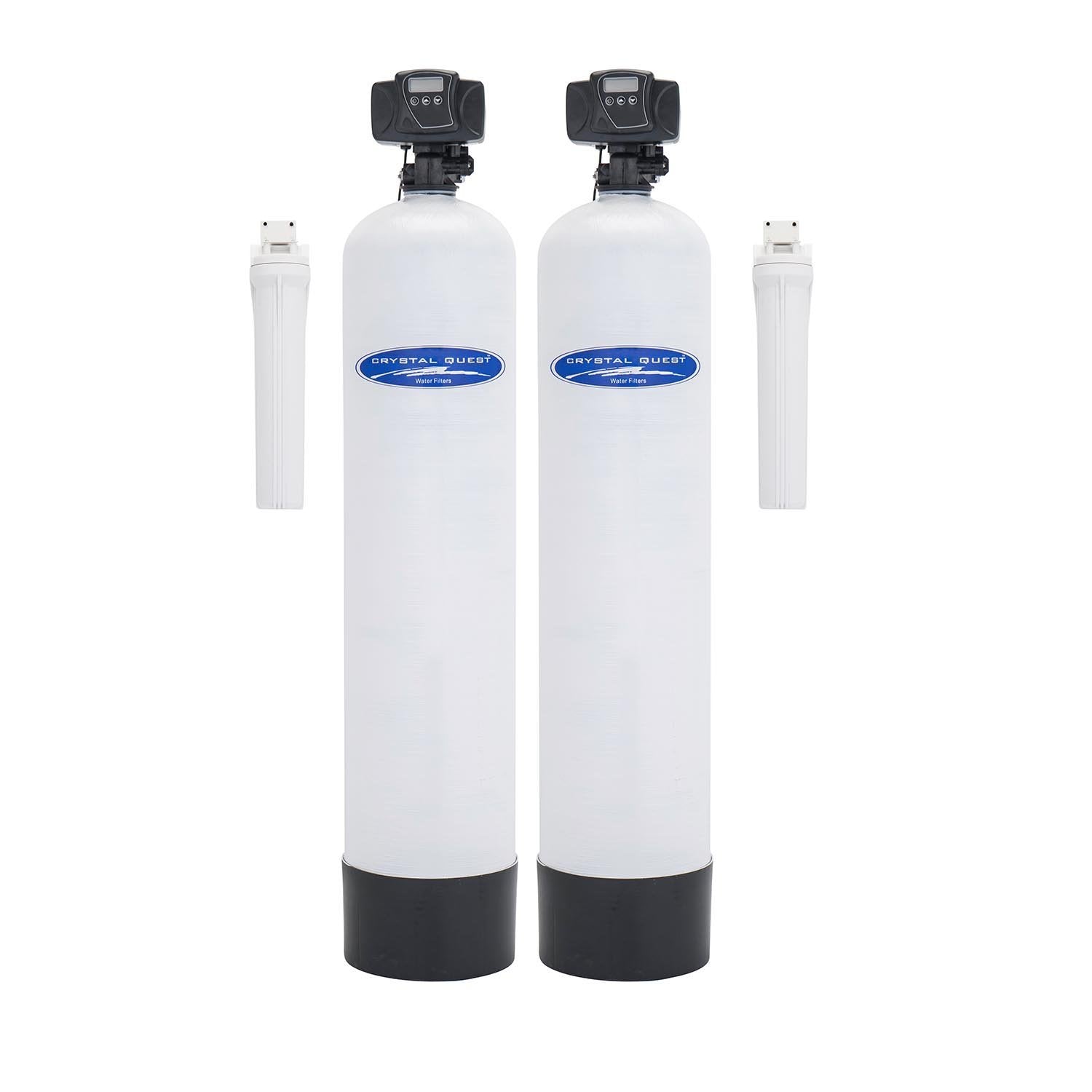

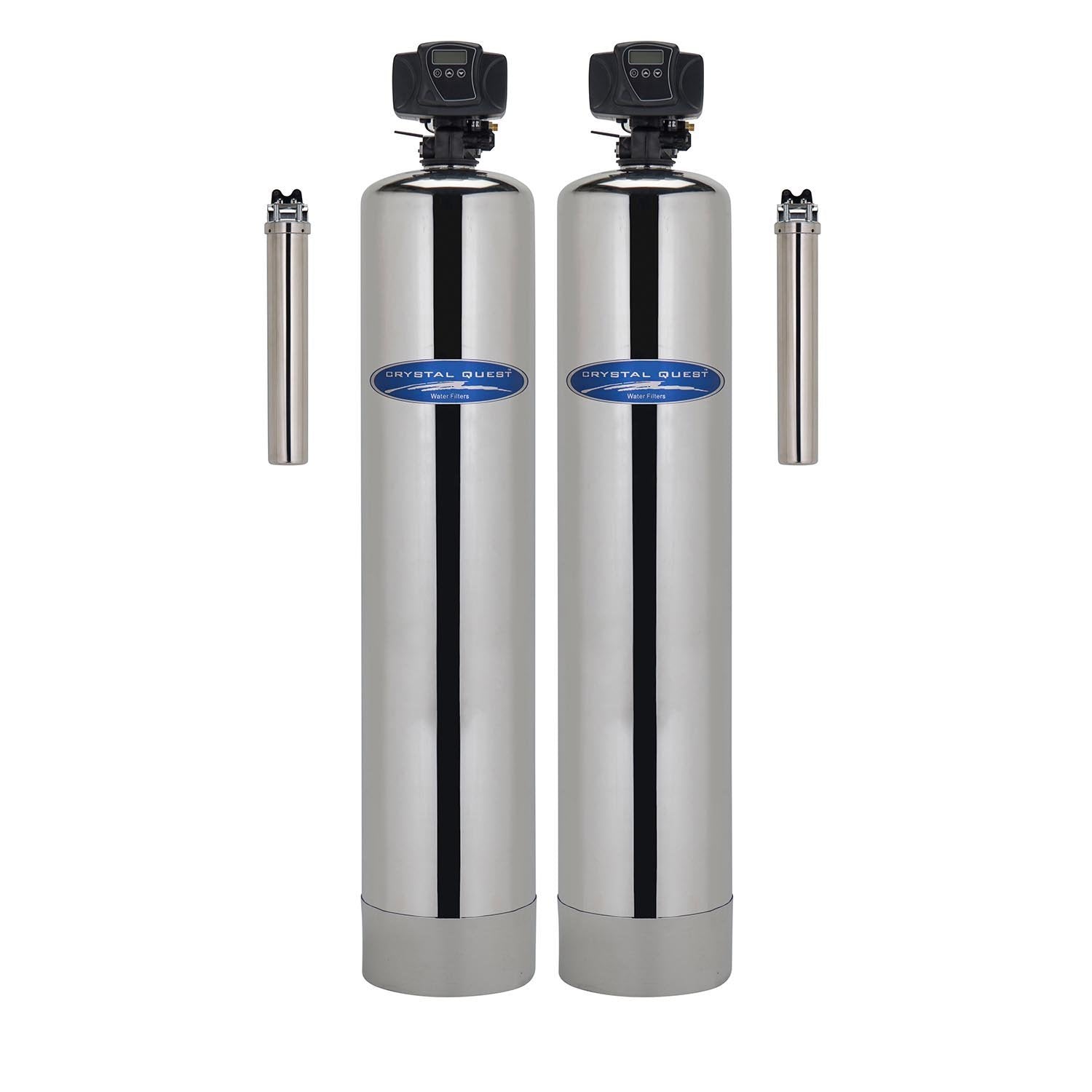

Turbidity Whole House Water Filter

Remove Turbidity from Your Drinking Water

Our Whole House Sediment Water Filters fractured edges and irregular surface provides a high surface area and a complex flow path for efficient removal of suspended matter throughout the filter bed, typically reducing suspended solids down to the 5-20 micron range.

Crystal Quest® Whole House Sediment Water Filters larger particle size creates less pressure loss through the filter and allows deeper sediment penetration into the bed for higher sediment loading and longer filter runs. This large and irregular shape prevents the screening and caking of sediment in the top several inches of the filter bed as happens in the typical sand filter, thus preventing a rapid buildup of headloss and blinding problems. Crystal Quest® Whole House Sediment water Filters light weight means lower backwash rates and better bed expansion to release trapped sediment and rinse the filter media during the backwash cycle. This ideal combination of particle shape, size, and density make it a good choice where quality water filtration and water conservation are important.

Pre-filtration

Water flows through a 20” sediment cartridge that removes sediment, silt, sand, and dirt.

Turbidity Removal Water Filter

Water flows through a natural mineral tank, efficiently removing sediment and suspended matter down to 5-micron range. In addition, we add our media, ERA® 6500 & 9500 to prevent bacteria growth.

Water Softener (optional)

Water flows through an ion exchange resin and brine water conditioner.

SMART Water Filter (optional)

Water flows through our SMART Multimedia, which includes 2 types of coconut shell Granulated Activated Carbons (Standard & Catalytic GAC) infused with our Eagle Redox Alloys®  6500 & 9500, and ion exchange resin to reduce contaminants such as heavy metals, i.e. lead & mercury, chlorine, chloramine, & inorganic products such as herbicides, pesticides, petroleum/pharmaceutical by-products and Ceramic and Tourmaline balls to enhance the water and maintain a more alkaline pH.

Post-filtration

Water flows through a 20" solid carbon cartridge for removing volatile organic carbon compounds (VOC's), & any remaining insecticides, pesticides and industrial solvents.

Additional Product Options

• 12 GPM UV Water Sterilizer: Specifically designed to meet the demanding microorganism control concern. These microorganisms can range from bacteria and viruses to algae and protozoa. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water.
• Leak Detector Valve: Used to detect a water leak within a water filter system and shuts down the water supply to prevent flooding.
• Vacuum Breaker: Recommended to be installed inline ahead of water filter systems as a precaution against the rare occurrence of negative pressure (a vacuum) in the water line which can cause damage to the filter tanks and housings.
• Metered Valve: The systems come standard with a timer valve which runs the backwashing schedule on a set number of days. (For example, every 7 days). The metered valve will run the backwashing based on a set number of gallons. (For example, 3,000 gallons).
• Oxidation System: Utilizes ozone for efficient water oxidation, improving water quality.

Important to Know

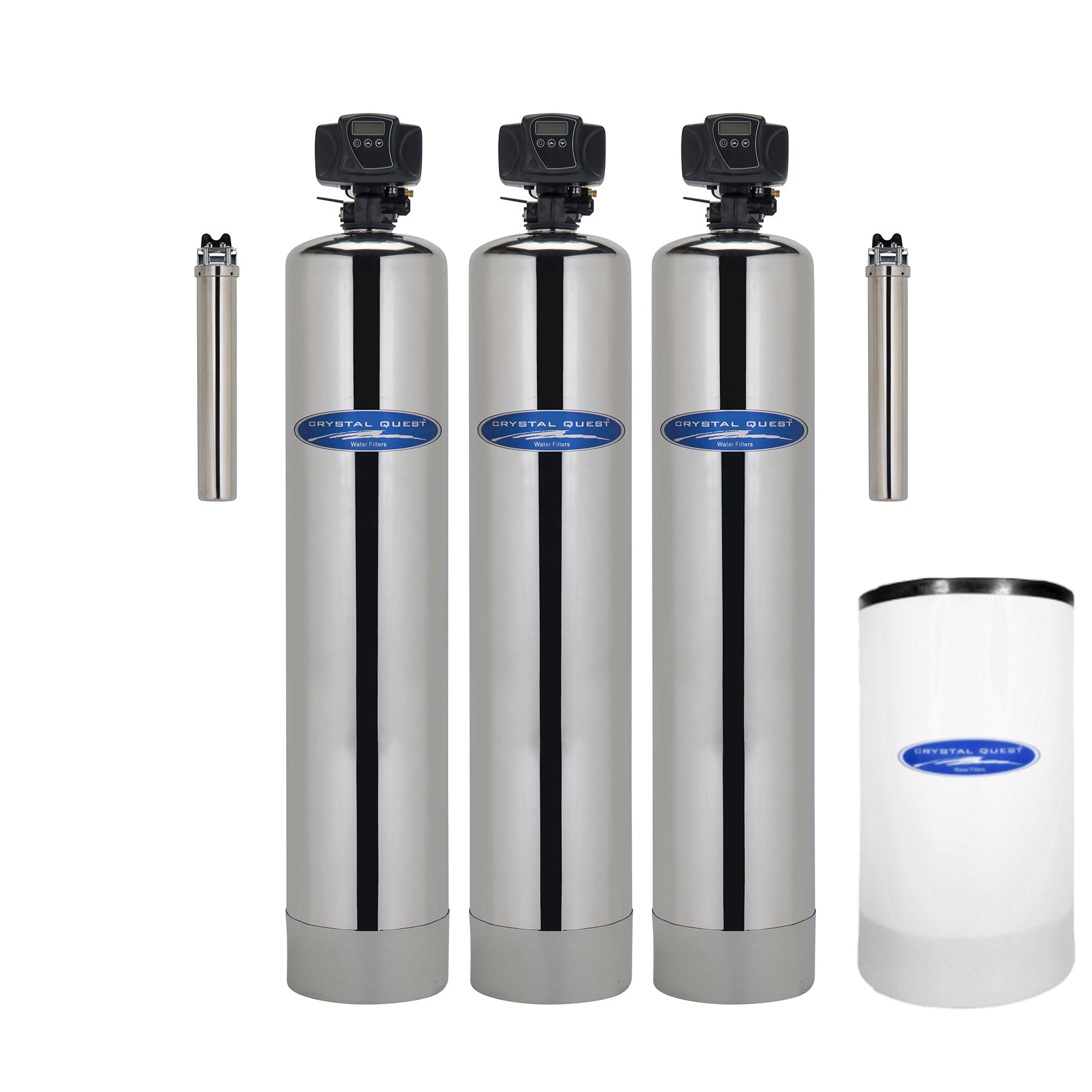

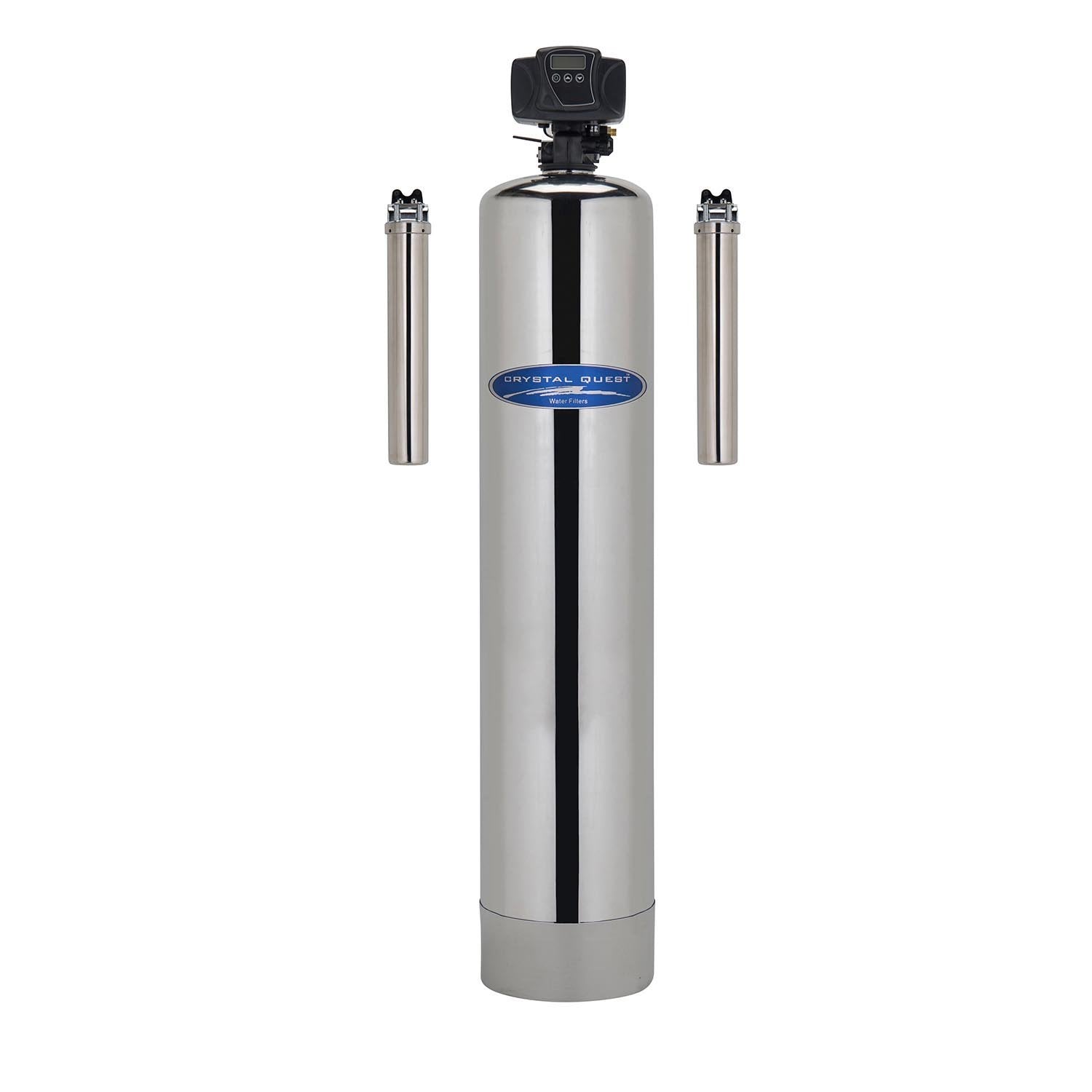

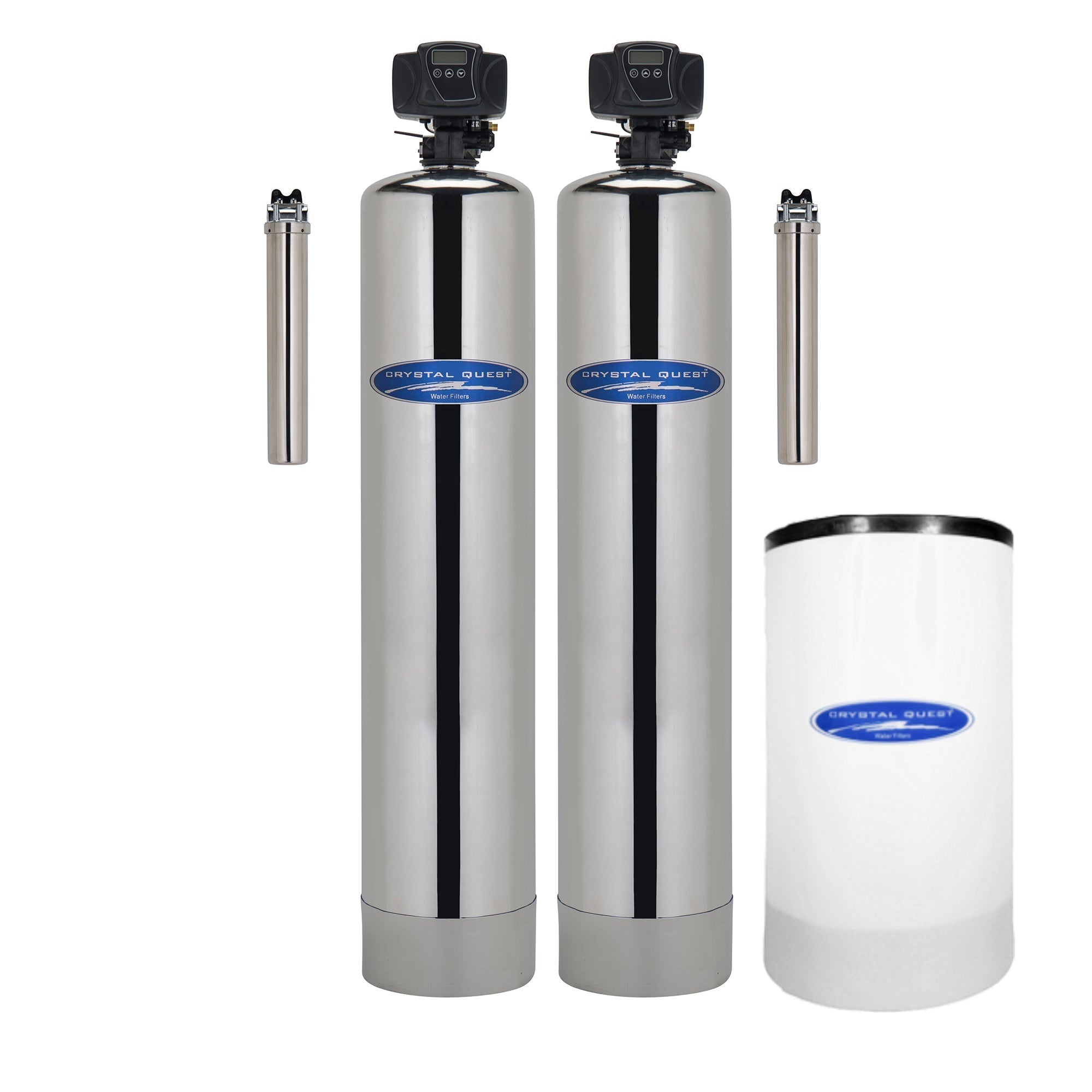

Pinholes or rust may occur on stainless steel tanks in environments with high humidity, when salt is present or if condensation remains on tank without being routinely wiped down. If your system will be exposed to one of these factors or you are unable to perform the needed maintenance, we recommend a fiberglass tank.

###

Specifications

*When you have a softener selected

###

Replacement Media

Replacement Cartridges

###

Whole House Manual

Leak Detector Manual

Guaranteed Performance

2.0 Turbidity Iron SMART Schematic

2.0 Turbidity Iron Schematic

Turbidity Removal Safety Data Sheet

Turbidity Removal Product Data Sheet
