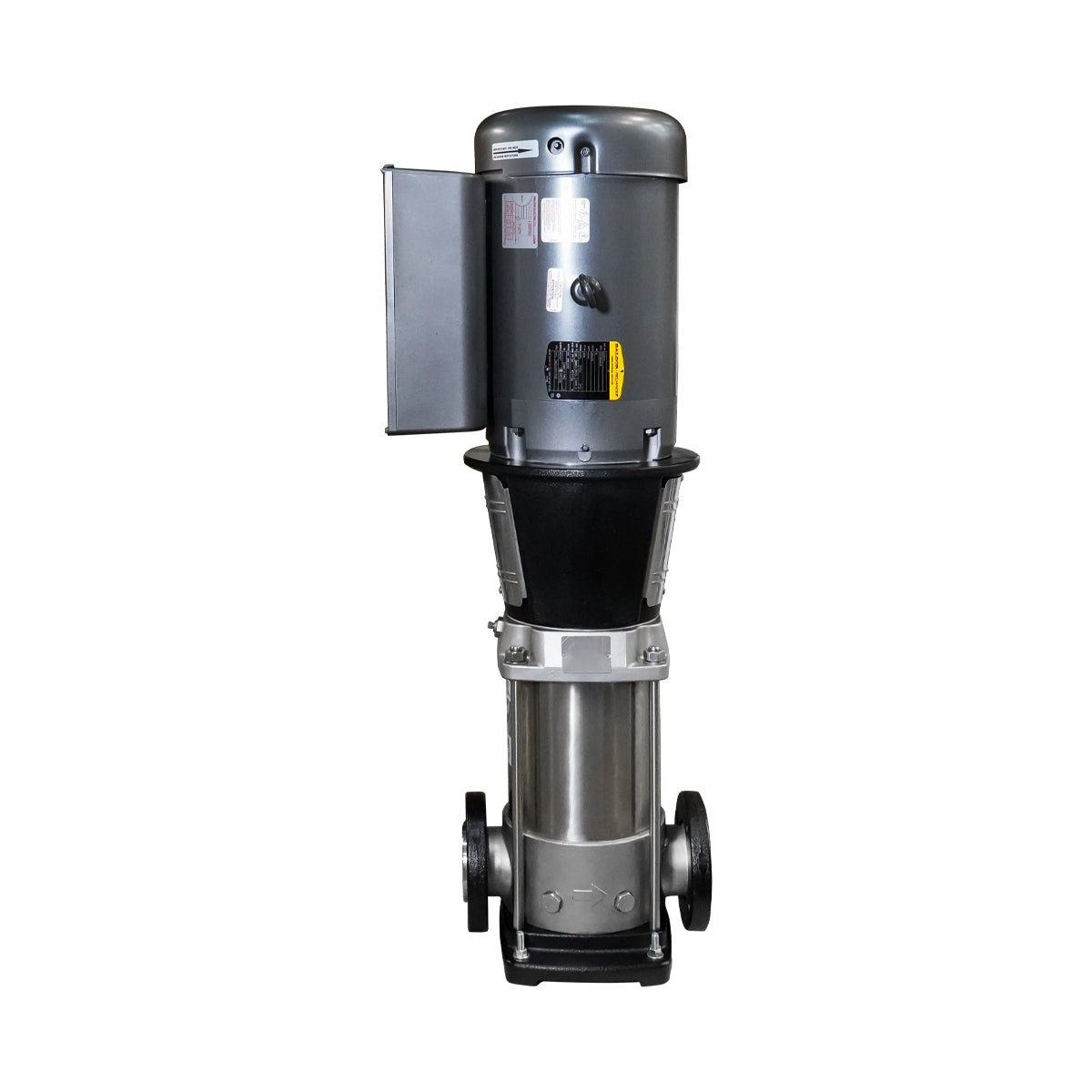

V-Flow Pump NV120-3-2S

Installation Instructions for V-Flow Pump NV120-3-2S Vertical Pump

1. Preparation:
   • Inspect the pump and motor for damage during shipping. Report any visible damage to the carrier or dealer.
   • Ensure the installation site is level, stable, and provides sufficient space and ventilation for motor cooling and servicing.
   • Verify that the pump model matches the system requirements.
2. Mounting the Pump:
   • Secure the pump base to a solid, flat surface to prevent vibrations during operation.
   • Align and support the suction and discharge piping to avoid strain on the pump.
   • Install isolation valves on both the suction and discharge sides for easier maintenance.
3. Piping Connections:
   • Ensure piping matches the pump’s 3" ANSI 150# flanged connections.
   • Install gaskets to prevent leaks, ensuring they do not obstruct flow.
   • Remove protective covers or caps from the flanges before installation.
   • For hot water applications, install a bleed valve in the discharge line to relieve pressure during maintenance.
4. Electrical Connection:
   • Have a certified electrician verify that the electrical supply matches the motor’s specifications (10 HP, three-phase).
   • Ensure proper motor wiring and confirm counterclockwise rotation when viewed from the motor’s rear.
   • If the rotation is incorrect, reverse any two leads on a three-phase motor to correct it.
5. Priming the Pump:
   • Remove the fill plug and use a funnel to fill the pump casing with water.
   • Open the vent plug to allow air to escape as the pump fills with water.
   • Re-seal the vent plug and fill plug once a steady stream of water flows from the vent.
6. Initial Testing:
   • Open the suction valve fully and partially open the discharge valve.
   • Apply power to the motor and monitor for smooth operation without noise or vibration.
   • Gradually open the discharge valve to achieve desired operating conditions.
7. Safety Precautions:
   • Never operate the pump without water, as it can cause damage to internal components.
   • Replace coupling guards after installation to prevent injuries.
   • Ensure the pump is properly grounded and connections are secure before starting.
